Ready Fit Aluminum Radiator for Small Block and Big Block Chevy [Auto Trans]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-51903

Ready Fit Aluminum Radiator for Small Block and Big Block Chevy [Auto Trans]

$36999$406.99You Save$37.00
3 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

JEGS

Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

Part Number : 555-10559
$3199$34.49
You Save$2.50
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]

Part Number : 555-10561
$4250$46.99
You Save$4.49
Heavy-Duty Nitrile Gloves [7 mils Thick, Large]

JEGS

Heavy-Duty Nitrile Gloves [7 mils Thick, Large]

Part Number : 555-1124
$1799$19.99
You Save$2.00
Aluminum Weld Fitting 1/8 in. NPT Female

JEGS

Aluminum Weld Fitting 1/8 in. NPT Female

Part Number : 555-15250
$499$5.99
You Save$1.00

GM

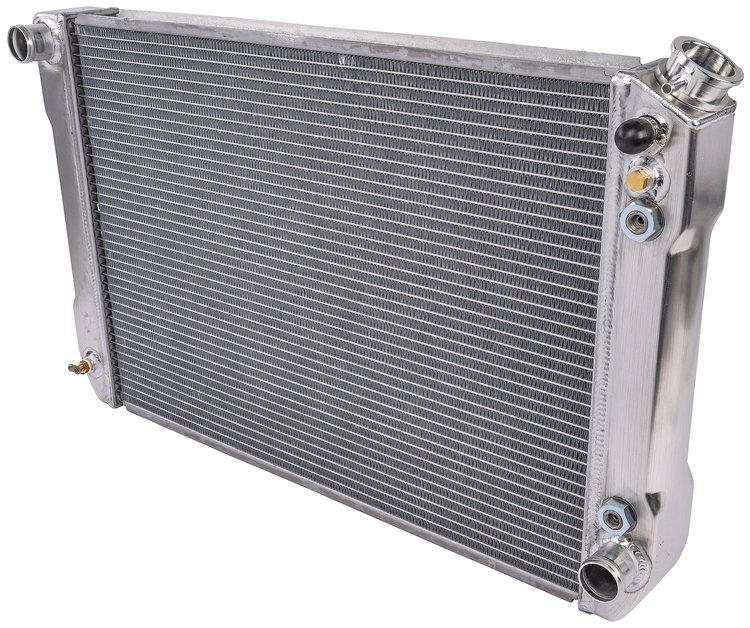

Ready Fit Aluminum Radiator
  • 1970-1981 Camaro BB-Chevy
  • 1973-1987 GM Pickup (C&K 10/20)
  • 1973-1991 Blazer & Suburban
  • Small Block Chevy
  • 30.75 in. x 18.625 in. Overall
  • 24.75 in. x 17.125 in. Core
  • Automatic Transmission

    JEGS 555-51903 Reasdy-Fit Aluminum Radiator

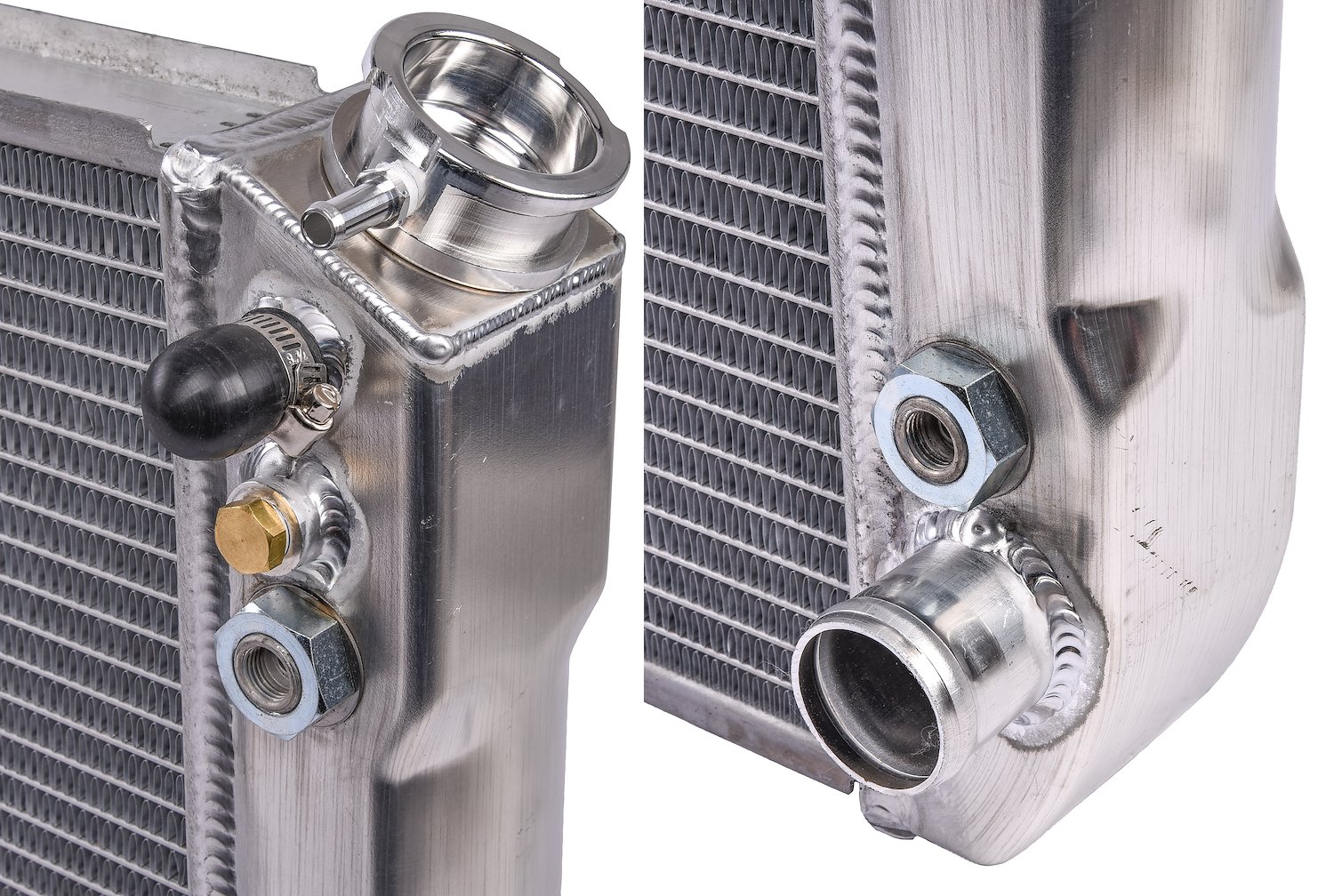

    • Top driver's side = 1 1/2 in. Inlet
    • Bottom passenger's side = 1 1/2 in. Outlet
    • Uses 5/16 in. inverted flare tube OE fittings for transmission cooler (1/2 in.-20 flare cone)
    • Replaces Northern Part Number 205027
  • Aluminum Leak-Free Radiators that Provide Peak Efficiency and Performance

    JEGS Ready Fit Performance Aluminum Radiators are manufactured from light-weight all-aluminum construction for strength and durability. These Radiators are assembled with fully TIG-welded billet filler necks and mechanically formed tanks, along with two rows of 1-inch noculoc-brazed tubes and maximized fin counts that provide a leak-free cooling system with peak efficiency and performance.

    JEGS also offers other Reproduction Style Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods. and Engine Conversions, For more information, CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Ready Fit Aluminum Radiators
    BrandJEGS
    Package Height9.0
    Package Width25.5
    Package Length33.0
    Weight17.8 PG
    Part CategoryPerformance Parts
    Overall Thickness3 in (76.2 mm)
    Overall Height18.625 in (473.1 mm)
    Outlet Size1.5 in (38.1 mm)
    Inlet LocationUpper driver side
    MaterialAluminum
    Inlet Size (In.)1.5
    Core Height17.125 in (434.975 mm)
    Core Thickness2 in (50.8 mm)
    Core Width24.75 in (628.65 mm)
    Row Quantity2
    Outlet LocationLower passenger side
    Overall Width30.75 in (781.1 mm)
    Tube Size1 in (25.4 mm)
    Fan IncludedNo
    Transmission CoolerYes
    Part FitmentDirect Fit
    FinishPolished
    Radiator StyleCrossflow
    Vendor Part Number205027
    Package Qty1
    Package TypeEA
