Vehicle Info NeededJEGSPART NUMBER: 555-51904

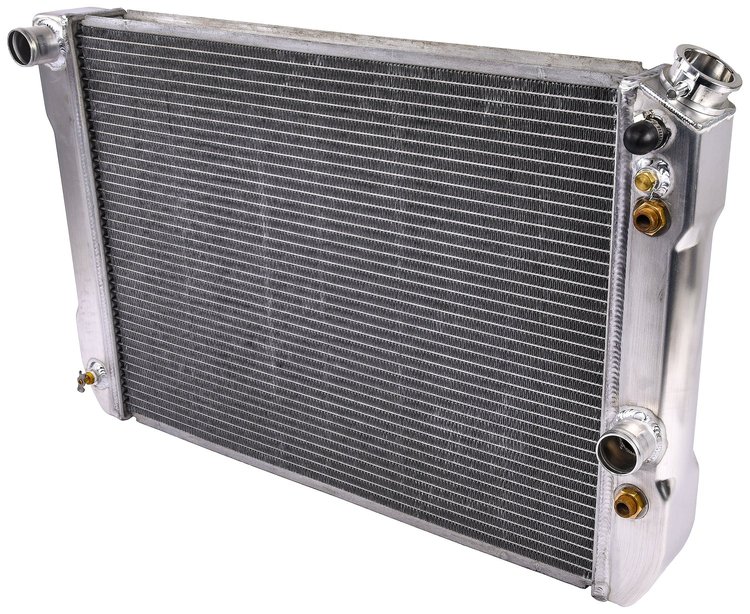

Ready Fit Aluminum Radiator for 1982-1992 Camaro & Firebird Small Block Chevy, Automatic Transmission
$36999$406.99You Save$37.00
Ships Tomorrow
Lowest Price GuaranteeGM
Ready Fit Aluminum Radiator1982-1992 Camaro & Firebird Small Block Chevy Automatic Transmission 30.625 in. x 18.500 in. Overall 24.625 in. x 17 in. Core
Requires Modification to the radiator mounts, fan shroud and radiator hoses.
- Top driver's side = 1 1/2 in. Inlet
- Bottom passenger's side = 1 1/2 in. Outlet
- Uses 5/16 in. inverted flare tube OE fittings for trans cooler (1/2 in.-20 flare cone)
Aluminum Leak-Free Radiators that Provide Peak Efficiency and Performance
JEGS Ready Fit Performance Aluminum Radiators are manufactured from light-weight all-aluminum construction for strength and durability. These Radiators are assembled with fully TIG-welded billet filler necks and mechanically formed tanks, along with two rows of 1-inch noculoc-brazed tubes and maximized fin counts that provide a leak-free cooling system with peak efficiency and performance.
JEGS also offers other Reproduction Style Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods. and Engine Conversions, For more information, CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Ready Fit Aluminum Radiators
BrandJEGS
Package Height9.0
Package Width25.5
Package Length33.0
Weight17.95 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height18.5 in (469.9 mm)
Outlet Size1.5 in (38.1 mm)
Inlet LocationUpper driver side
MaterialAluminum
Inlet Size (In.)1.5
Core Height17 in (431.8 mm)
Core Thickness2 in (50.8 mm)
Core Width24.625 in (625.475 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width30.625 in (777.9 mm)
Tube Size1 in (25.4 mm)
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
FinishPolished
Radiator StyleCrossflow
Vendor Part Number205062
Package Qty1
Package TypeEA
