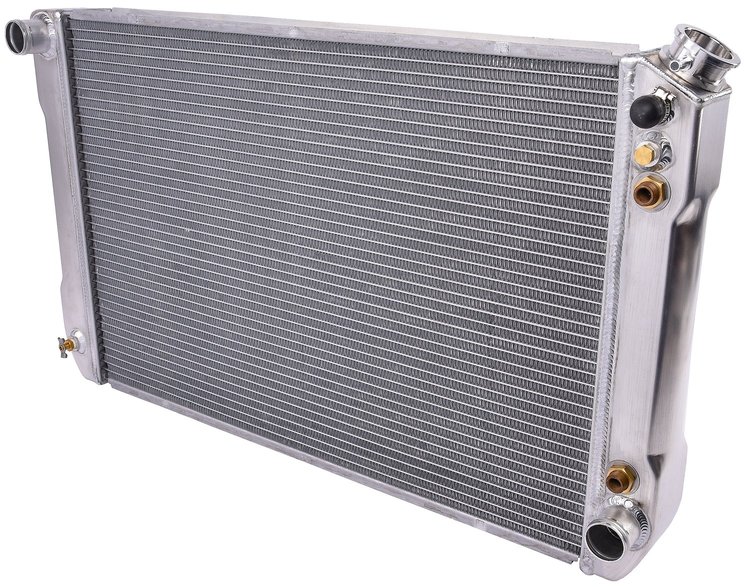

Ready Fit Aluminum Radiator Fits Select 1965-1987 Buick, Cadillac, Chevy, Olds, Pontiac, Cars, 1972-1998 GM Trucks [Auto Trans]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-51910

Ready Fit Aluminum Radiator Fits Select 1965-1987 Buick, Cadillac, Chevy, Olds, Pontiac, Cars, 1972-1998 GM Trucks [Auto Trans]

$39799$417.99You Save$20.00
More than 10 available
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

JEGS

Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

Part Number : 555-10559
$3199$34.49
You Save$2.50
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]

Part Number : 555-10561
$4250$46.99
You Save$4.49
Heavy-Duty Nitrile Gloves [7 mils Thick, Large]

JEGS

Heavy-Duty Nitrile Gloves [7 mils Thick, Large]

Part Number : 555-1124
$1799$19.99
You Save$2.00
Aluminum Weld Fitting 1/8 in. NPT Female

JEGS

Aluminum Weld Fitting 1/8 in. NPT Female

Part Number : 555-15250
$499$5.99
You Save$1.00

GM Car/Truck
Aluminum Radiator
  • Fits Select Models
  • 1965-1987 Buick, Cadillac, Chevy, Olds, Pontiac
  • 1972-1998 Chevy & GMC C, G, P, R-Series Trucks & Vans
  • 1973-1991 Chevy Blazer, Suburban & GMC Jimmy
  • See Fitment Tab for Applications
  • Auto Transmission

    JEGS 555-51910 Ready-Fit Aluminum Radiator

    • 32.625 in. x 18.500 in. Overall Dimensions
    • 28.375 in x 17.375 in. Core Dimensions
    • Top driver's side = 1 1/2 in. Inlet
    • Bottom passenger's side = 1 1/2 in. Outlet
    • 7 Plate Transmission Cooler
    • 1/8 in. NPT Sensor Port
    • Uses 5/16 in. inverted flare tube OE fittings for transmission cooler (1/2 in.-20 flare cone)
    • Replaces Northern Part Number 205026
  • Aluminum Leak-Free Radiators that Provide Peak Efficiency and Performance

    JEGS Ready Fit Performance Aluminum Radiators are manufactured from light-weight all-aluminum construction for strength and durability. These Radiators are assembled with fully TIG-welded billet filler necks and mechanically formed tanks, along with two rows of 1-inch noculoc-brazed tubes and maximized fin counts that provide a leak-free cooling system with peak efficiency and performance.

    JEGS also offers other Reproduction Style Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods. and Engine Conversions, For more information, CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Ready Fit Aluminum Radiators
    BrandJEGS
    Package Height9.0
    Package Width25.5
    Package Length33.0
    Weight22.2 PG
    Part CategoryPerformance Parts
    Overall Thickness3.125 in (79.375 mm)
    Overall Height18.5 in (469.9 mm)
    Outlet Size1.5 in (38.1 mm)
    Inlet LocationUpper driver side
    MaterialAluminum
    Inlet Size (In.)1.5
    Core Height17.375 in (441.625 mm)
    Core Thickness2.25 in (57.15 mm)
    Core Width28.375 in (720.725 mm)
    Row Quantity2
    Outlet LocationLower passenger side
    Overall Width32.625 in (828.675 mm)
    Tube Size1 in (25.4 mm)
    Fan IncludedNo
    Transmission CoolerYes
    Part FitmentDirect Fit
    FinishPolished
    Radiator StyleCrossflow
    Vendor Part Number205026
    Package Qty1
    Package TypeEA
