Vehicle Info NeededJEGSPART NUMBER: 555-51920

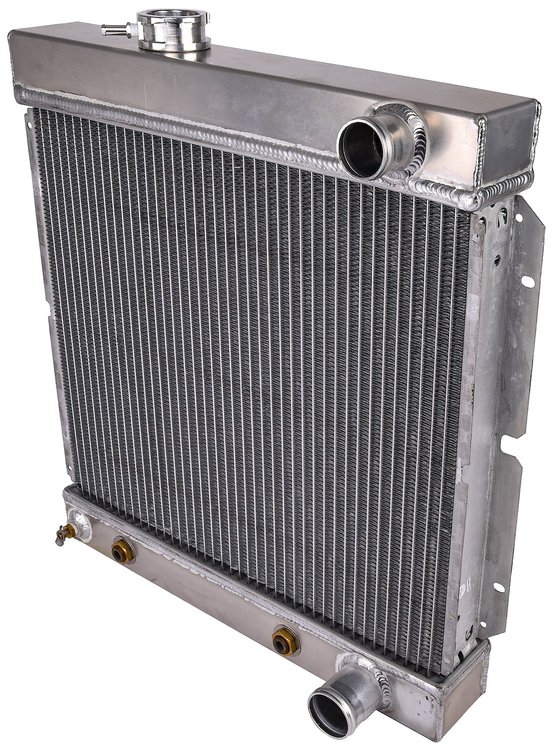

Ready Fit Aluminum Radiator for 1964-1966 Mustang (Down Flow) 289, Automatic Transmission
$33999$402.99You Save$63.00
2 left in stock
Ships Today
Lowest Price GuaranteeFord, Mercury
Ready Fit Aluminum Radiator1964-1966 Mustang (Down Flow) 289, Automatic Transmission 18.500 in. x 20.250 in. Overall 17 in. x 14.250 in. Core Replaces Part Number 205030
JEGS 555-51920 Ready-Fit Aluminum Radiator
- Top passenger's side = 1 1/2 in. Inlet
- Bottom passenger's side = 1 3/4 in. Outlet

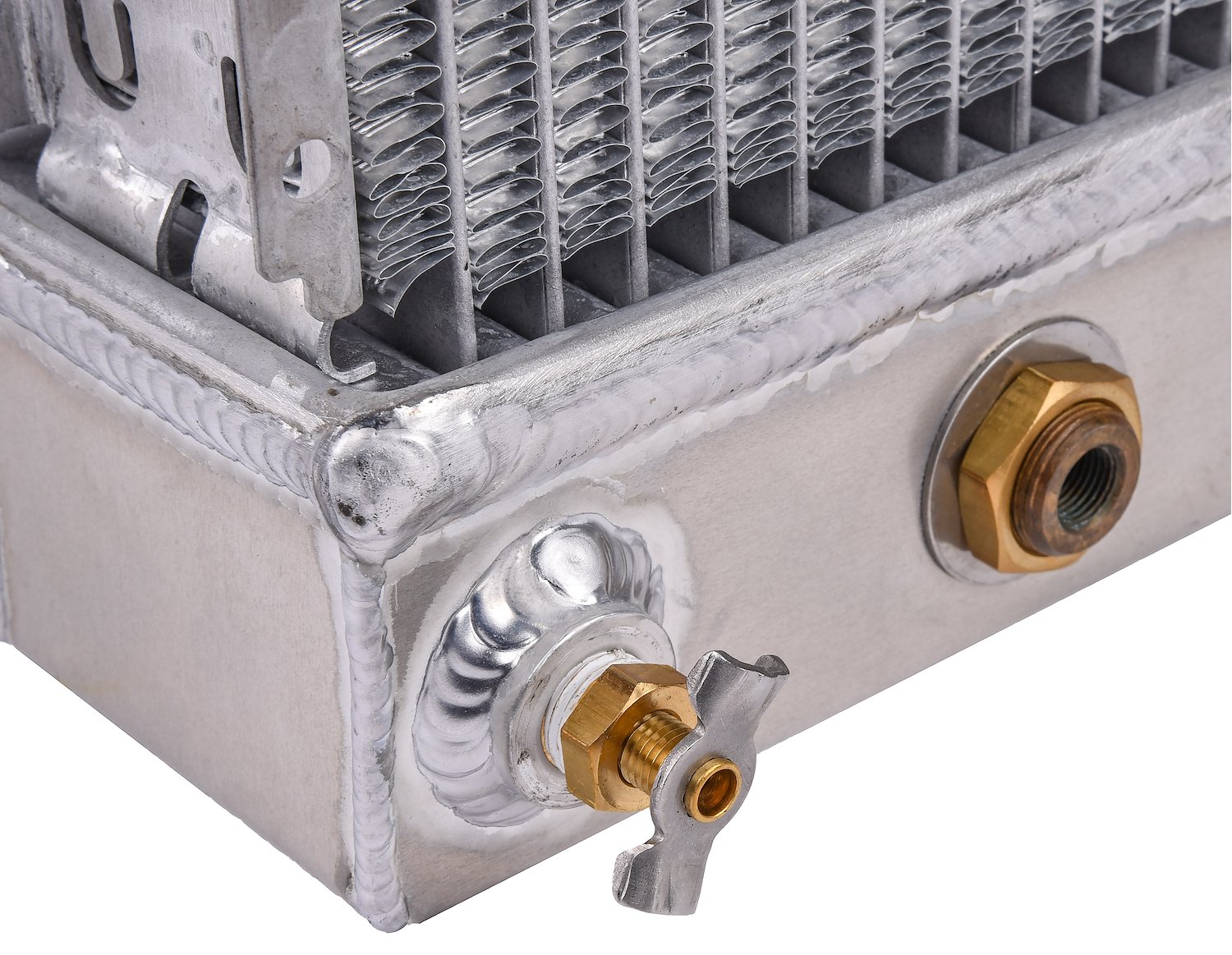

- Uses 1/8 in. NPT OE fittings for trans cooler
- Replaces Northern Part Number 205030
Aluminum Leak-Free Radiators that Provide Peak Efficiency and Performance
JEGS Ready Fit Performance Aluminum Radiators are manufactured from light-weight all-aluminum construction for strength and durability. These Radiators are assembled with fully TIG-welded billet filler necks and mechanically formed tanks, along with two rows of 1-inch noculoc-brazed tubes and maximized fin counts that provide a leak-free cooling system with peak efficiency and performance.
JEGS also offers other Reproduction Style Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods. and Engine Conversions, For more information, CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Ready Fit Aluminum Radiators
BrandJEGS
Package Height9.0
Package Width21.0
Package Length26.0
Weight15.0 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height20.25 in (514.4 mm)
Outlet Size1.75 in (44.5 mm)
Inlet LocationUpper passenger side
MaterialAluminum
Inlet Size (In.)1.5
Core Height14.25 in (361.95 mm)
Core Thickness2 in (50.8 mm)
Core Width17 in (431.8 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width18.5 in (469.9 mm)
Tube Size1 in (25.4 mm)
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
FinishNatural
Radiator StyleDownflow
Vendor Part Number205030
Package Qty1
Package TypeEA
