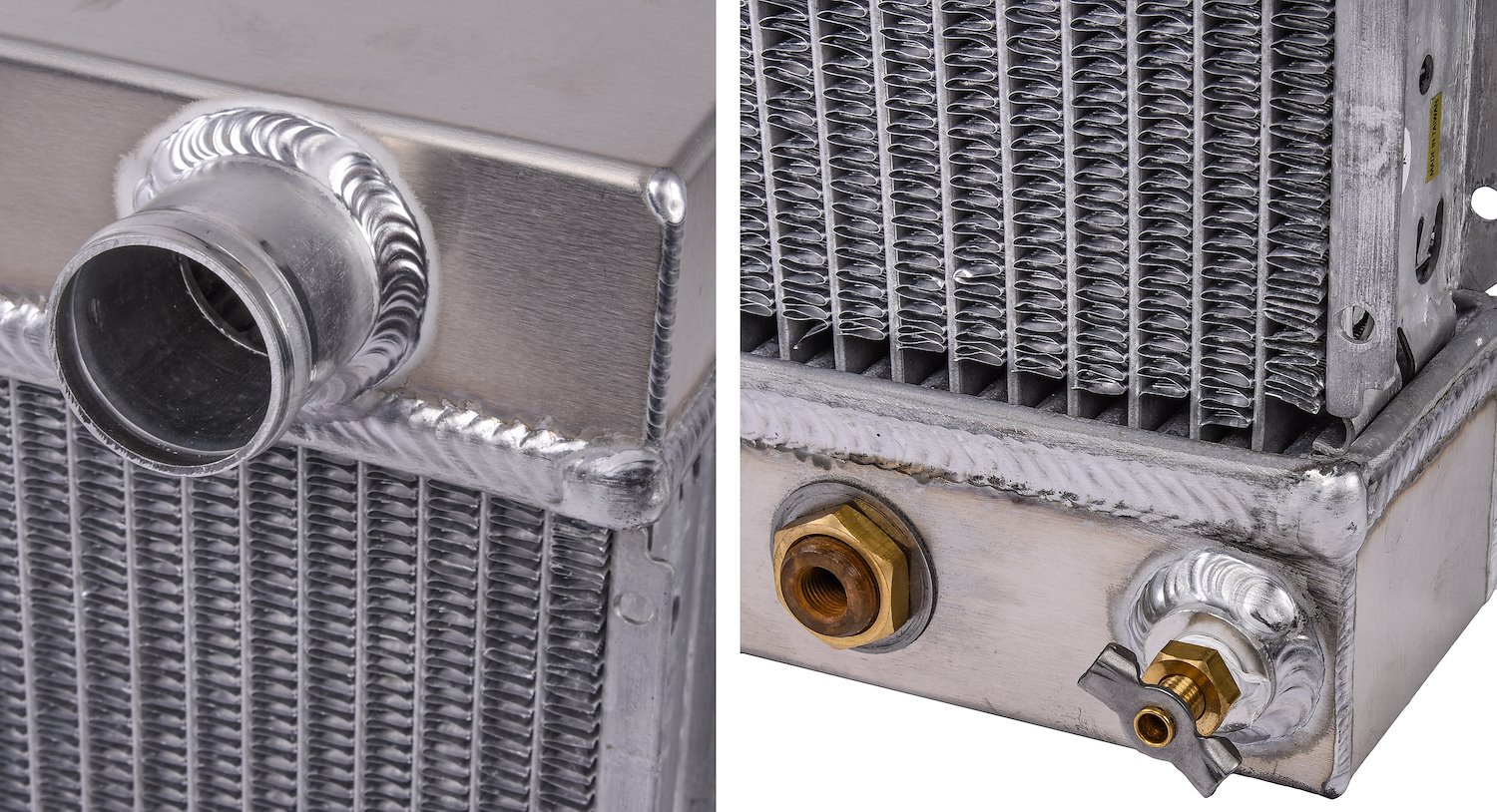

The JEGS 555-51921 Ready-Fit Aluminum Radiator is a direct-fit, high-performance aluminum radiator engineered for 1960-1970 Ford and Mercury muscle car applications equipped with an automatic transmission. Measuring 20-1/4 in. wide by 18-1/2 in. high by 3-1/8 in. deep, this radiator features a 2-row design with 1 in. cooling tubes for superior heat dissipation. The passenger side inlet and driver side outlet configuration matches factory Ford routing, and the anodized billet machined filler neck provides improved pressure control over stock caps. All-welded aluminum construction eliminates gaskets and epoxy for long-term leak resistance, while the lightweight aluminum core delivers significantly more cooling capacity than comparable copper and brass units.

JEGS 555-51921 Ready-Fit Aluminum Radiator Features:

• Fits 1960-1970 Ford and Mercury Muscle Car Applications; Automatic Transmission
• 20-1/4 in. W x 18-1/2 in. H x 3-1/8 in. D Overall Dimensions
• Right/Passenger Side Inlet: 1 1/2 in. Diameter
• Left/Driver Side Outlet: 1 3/4 in.
• Uses 1/8 in. NPT OE Fittings for Transmission Cooler
• 2-Row Design with 1 in. Cooling Tubes for Superior Heat Dissipation
• Anodized Billet Machined Filler Neck for Improved Pressure Control
• All-Welded Aluminum Construction; No Gaskets; Epoxy-Free for Long-Term Leak Resistance
• Natural Aluminum Finish
• Sold Individually
