![Ready Fit Aluminum Radiator for 1967-1969 Mustang w/289-302-351W [Automatic Transmission]](https://www.jegs.com/images/mini_750/500/555/555-51924.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-51924

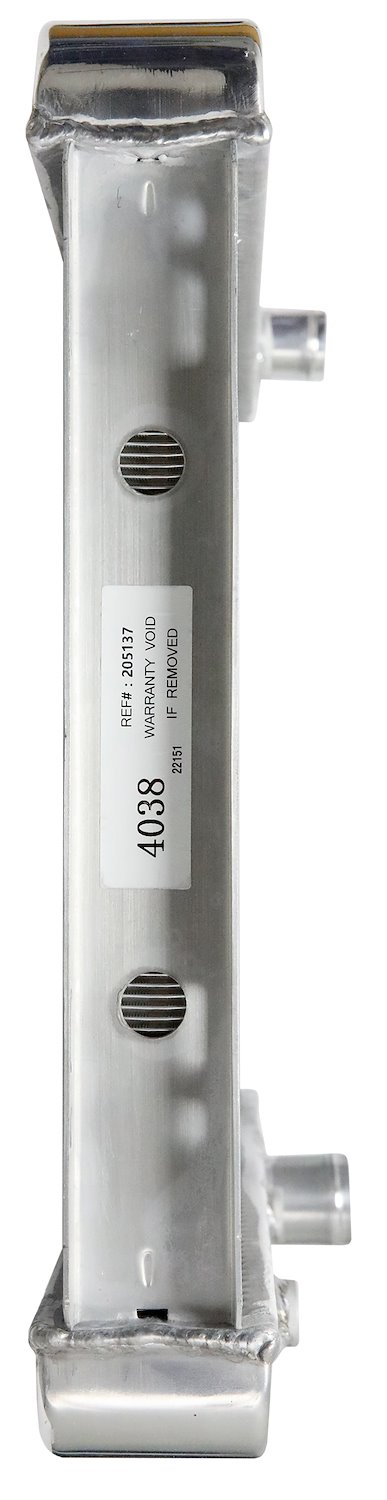

Ready Fit Aluminum Radiator for 1967-1969 Mustang w/289-302-351W [Automatic Transmission]
$42899$471.99You Save$43.00
Ships on 09/15/2026
Lowest Price GuaranteeFord, Mercury
Ready Fit Aluminum Radiator1967-1969 Mustang 289-302-351W Downflow Design 25.500 in. x 20 in. Overall 23.875 in. x 15.875 in. Core Automatic Transmission
JEGS 555-51924 Ready Fit Aluminum Radiator Features:
- Top Passenger Side = 1 1/2 in. Inlet
- Bottom Passenger's side = 1 3/4 in. Outlet
- Uses 1/8 in. NPT OE fittings for the transmission cooler
JEGS 555-51924 Ready Fit Aluminum Radiator Notes:
- Replaces Northern Part Number: 205137
Aluminum Leak-Free Radiators that Provide Peak Efficiency and Performance
JEGS Ready Fit Performance Aluminum Radiators are manufactured from light-weight all-aluminum construction for strength and durability. These Radiators are assembled with fully TIG-welded billet filler necks and mechanically formed tanks, along with two rows of 1-inch noculoc-brazed tubes and maximized fin counts that provide a leak-free cooling system with peak efficiency and performance.
JEGS also offers other Reproduction Style Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods. and Engine Conversions, For more information, CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Ready Fit Aluminum Radiators
BrandJEGS
Package Height7.4
Package Width22.4
Package Length27.4
Weight17.61 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height20 in (508 mm)
Outlet Size1.75 in (44.5 mm)
Inlet LocationUpper passenger side
MaterialAluminum
Inlet Size (In.)1.5
Core Height15.875 in (403.225 mm)
Core Thickness2 in (50.8 mm)
Core Width23.875 in (606.425 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width25.5 in (647.7 mm)
Tube Size1 in (25.4 mm)
Fan IncludedNo
Transmission CoolerYes
FinishPolished
Radiator StyleDownflow
Package Qty1
Package TypeEA
