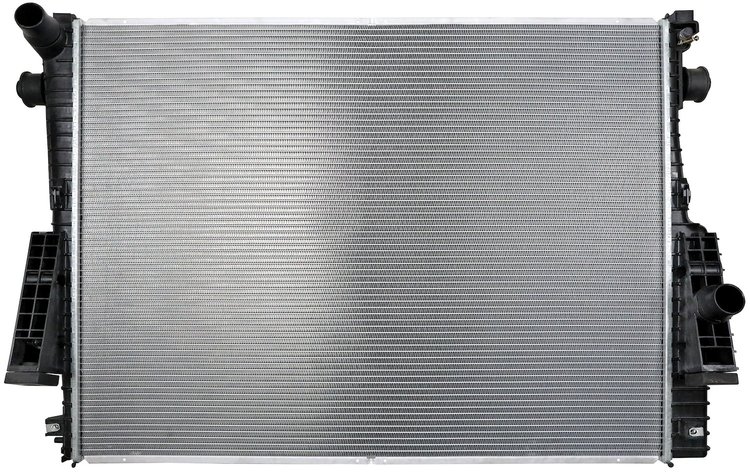

JEGS 555-51943 Ready-Fit Aluminum Radiator Features:

• Fits 2008-2010 Ford F-Series Trucks w/6.4L Diesel
• Designed to replace the factory Ford 6.4L Powerstroke Diesel Radiator
• Quality built to exceed OEM specifications for a direct fit and long life
• Internally reinforced end tubes with bridge clips

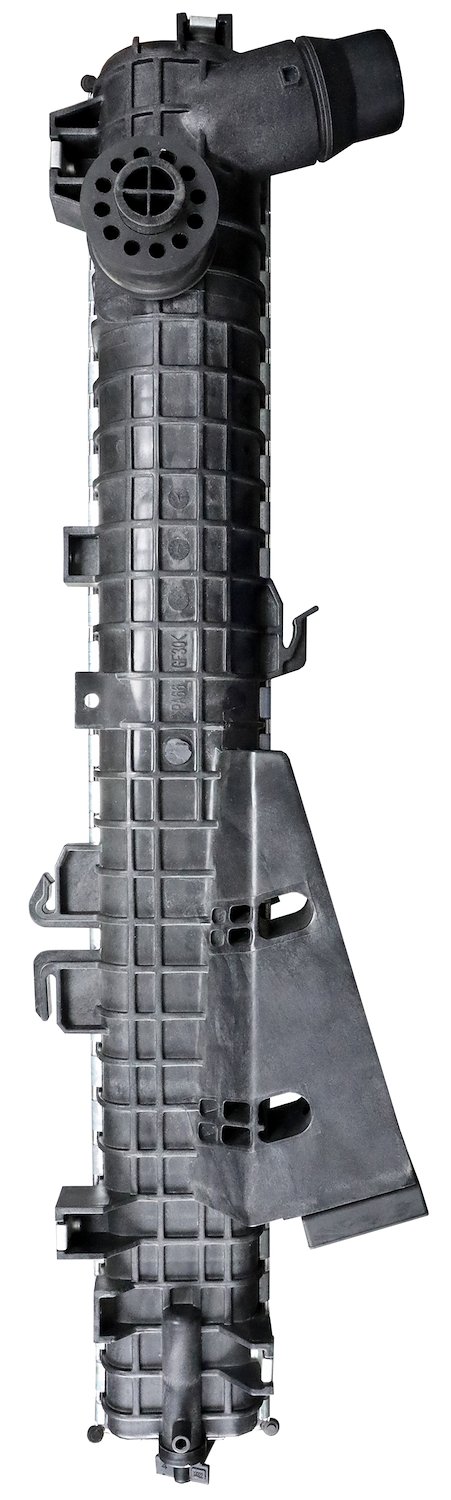

• Added ribs in weak spots on the plastic tanks
• Extra strong integrated mounting points
• Tank to header attachment is strengthened by a heavy gauge steel crimp vs aluminum on OEM
• Core has strong, heavy-duty tubes and more fins per inch than OEM
• Replaces Ford OE Part Numbers 8C3Z8009B, 8C348009CA, 8C348009CB
• Replaces Northern Part Number CR13022

JEGS 555-51943 Ready-Fit Aluminum Radiator Notes:

• Installation of this radiator in a 2008 6.4L Diesel F-Series Ford Pickup may require a Ford Venturi Tee Installation Kit 8C3Z-8B379B. (If the purchase is necessary, please see your local Ford dealer), Refer to the technical bulletin attached.

  Ford Technical Bulletin

• Ford advises a thermostat replacement when installing this radiator.

JEGS 555-51943 Ready-Fit Aluminum Radiator Measurement Note:

• Measuring a radiator is very simple but, certain rules apply. The tubes of a radiator are always mounted parallel to the fins and perpendicular to the inlet/outlet tanks. The measurement difference between a crossflow and a downflow radiator can be confusing. The first measurement is always the height which is always taken in the same direction as the tubes. (Height Example: A Crossflow Radiator Height would be measured horizontally whereas a Downflow Radiator would be measured Vertically). Second, the width is always measured between the side plates.
