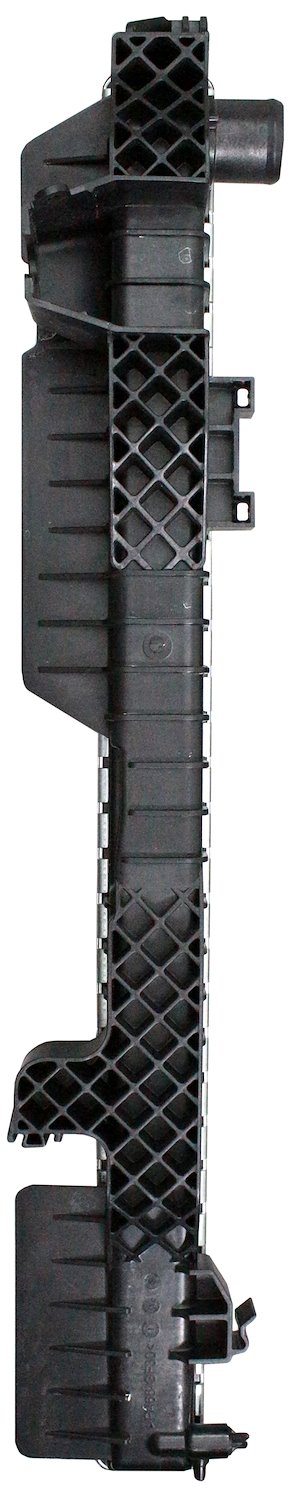

JEGS 555-51946 Ready-Fit Aluminum Radiator Features:

• Fits 2010-2012 RAM 2500, 3500 Trucks w/6.7L Cummins Diesel Engine
• Internally reinforced end tubes with bridge clips
• Added ribs in weak spots on the tank
• Extra strong integrated mounting points
• Tank-to-header attachment is strengthened by a heavy gauge steel crimp vs aluminum on OEM
• Core has strong, heavy-duty tubes and more fins per inch than OEM
• Replaces Dodge OE Part Numbers 55057089AB
• Replaces Northern Part Number CR13296

JEGS 555-51946 Ready-Fit Aluminum Radiator Special Installation Note:

YOU MUST FOLLOW THE INSTRUCTIONS SET FORTH BY DODGE MOTOR COMPANY IN THE ATTACHED PDF LINK BELOW WHEN FILLING THIS RADIATOR WITH COOLANT. FAILURE TO DO SO CAN NOT ONLY RESULT IN RADIATOR FAILURE BUT MAY ALSO LEAD TO CATASTROPHIC ENGINE DAMAGE.

Dodge Installation Instructions

JEGS 555-51946 Ready-Fit Aluminum Radiator Measurement Note:

• Measuring a radiator is very simple but, certain rules apply. The tubes of a radiator are always mounted parallel to the fins and perpendicular to the inlet/outlet tanks. The measurement difference between a crossflow and a downflow radiator can be confusing. The first measurement is always the height which is always taken in the same direction as the tubes. (Height Example: A Crossflow Radiator Height would be measured horizontally whereas a Downflow Radiator would be measured Vertically). Second, the width is always measured between the side plates.
