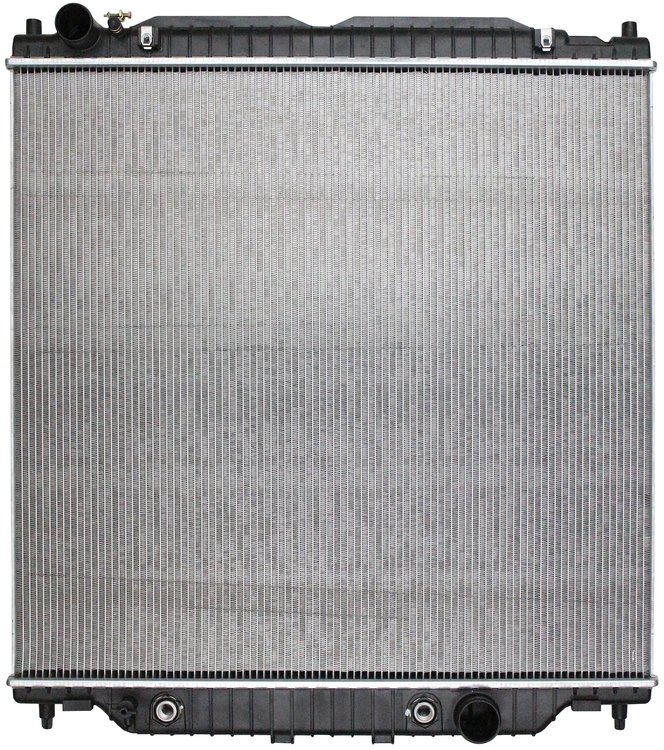

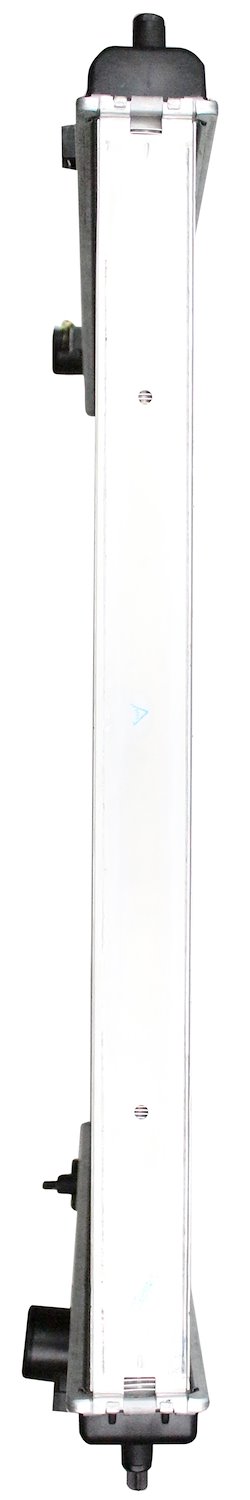

JEGS 555-51953 Ready-Fit Aluminum Radiator Features:

• Fits 2003-2005 Ford Excursion and 2003-2007 Ford F-Series Trucks w/6.0L & 6.8L Powerstroke Diesel
• Designed to replace the factory Ford 6.0L Diesel Radiator
• Quality built to exceed OEM specifications for a direct fit and long life
• Internally reinforced end tubes with bridge clips
• Added ribs in weak spots on the plastic tanks
• Extra strong integrated mounting points
• Tank-to-header attachment is strengthened by a heavy gauge steel crimp vs aluminum on OEM
• Core has strong, heavy-duty tubes and more fins per inch than OEM
• Replaces Ford Part Numbers: 8C3Z8009B, 8C348009CA, 8C348009CB
• Replaces Northern Part Number CR2887

JEGS 555-51953 Ready-Fit Aluminum Radiator Measurement Note:

• Measuring a radiator is very simple but, certain rules apply. The tubes of a radiator are always mounted parallel to the fins and perpendicular to the inlet/outlet tanks. The measurement difference between a crossflow and a downflow radiator can be confusing. The first measurement is always the height which is always taken in the same direction as the tubes. (Height Example: A Crossflow Radiator Height would be measured horizontally whereas a Downflow Radiator would be measured Vertically). Second, the width is always measured between the side plates.
