![GM-Style Triple Pass Radiator [2 Row, 2.250 in. Core]](https://www.jegs.com/images/mini_750/500/555/555-51972.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-51972

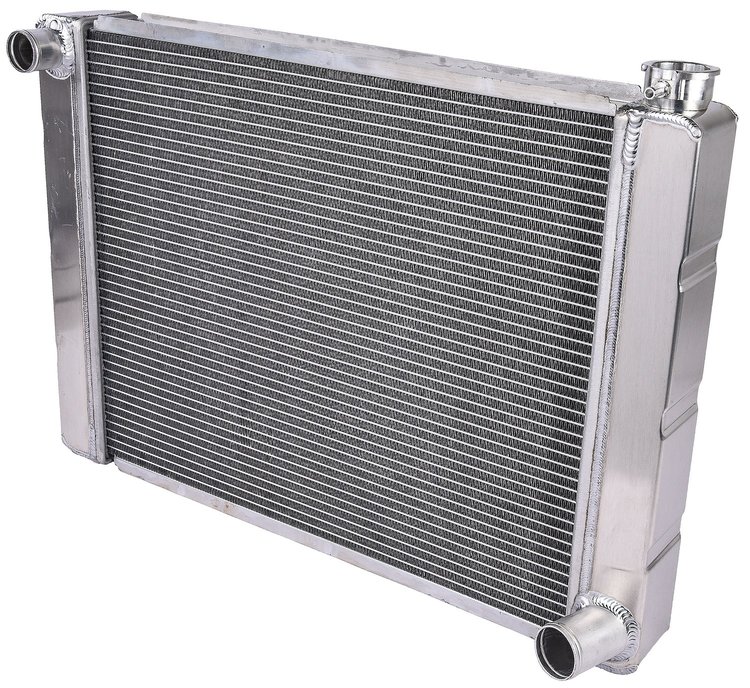

GM-Style Triple Pass Radiator [2 Row, 2.250 in. Core]
$28349$311.99You Save$28.50
More than 10 available
Ships Tomorrow
Lowest Price GuaranteeTriple Pass GM Style Aluminum Racing Radiator
Triple Pass Radiator2 Row Core 2.250 in. Core 1 1/2 in. Top Inlet 1 3/4 in. Bottom Outlet GM Style Overall Dimensions: 31 in. W x 19 in. H Aluminum Sold Individually
JEGS 555-51972 GM-Style Triple Pass Radiator Features:
- Lightweight All-Aluminum Construction for improved performance and cooling
- Double or Triple Pass Cores to Keep Your Race Engine Cool!
- Four Styles Available to Fit Your Dragster, Roadster, Prostock or Scirocco Needs
- Constructed with Two Rows of 1 In. Noculoc-Brazed Tubes with Maximized Fin Counts For Peak Efficiency

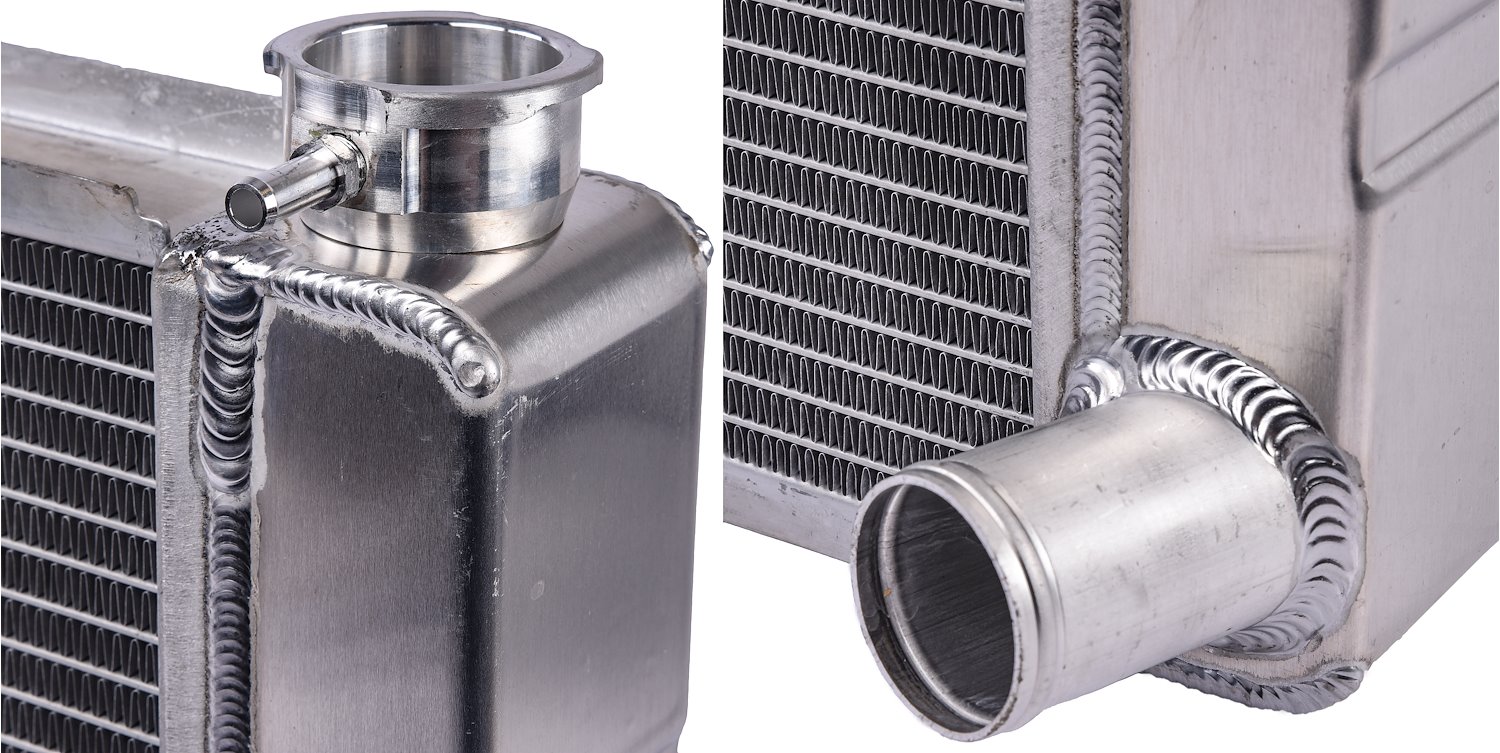

- Mechanically Formed Aluminum Tanks, that are Fully TIG Welded, Provide Precise Fitment & Ensure Leak-Free Operation
- Billet Radiator Filler Necks Accept Standard 1 5/8 in. Inner Cap Diameter, Also Available without Filler Neck
- Furnace Brazed to Eliminate Leak Prone Epoxy & Gaskets
Part TypeRadiator
BrandJEGS
Package Height7.5
Package Width22.0
Package Length32.3
Weight18.6 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height19 in (482.6 mm)
Outlet Size1.75 in (44.5 mm)
Inlet LocationUpper driver side
MaterialAluminum
Inlet Size (In.)1.5
Core HeightN/A
Core Thickness2.25 in (57.15 mm)
Core WidthN/A
Row Quantity2
Outlet LocationLower passenger side
Overall Width31 in (787.4 mm)
Tube Size1 in (25.4 mm)
Fan IncludedNo
Transmission CoolerNo
Part FitmentSemi Universal
FinishPolished
Radiator StyleCrossflow
Package Qty1
Package TypeEA
