Chevy/GM-Style Aluminum Radiator [2 Row, 1 in. Core, Crossflow]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-52008

Chevy/GM-Style Aluminum Radiator [2 Row, 1 in. Core, Crossflow]

$24299$262.39You Save$19.40
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Aluminum Weld Fitting -10AN Male

JEGS

Aluminum Weld Fitting -10AN Male

Part Number : 555-15264
$569$6.99
You Save$1.30
Heavy Duty Radiator Hose [1 1/2 in. I.D.]

JEGS

Heavy Duty Radiator Hose [1 1/2 in. I.D.]

Part Number : 555-511160
$3999$43.99
You Save$4.00
Heavy Duty Radiator Hose [1 3/4 in. I.D.]

JEGS

Heavy Duty Radiator Hose [1 3/4 in. I.D.]

Part Number : 555-511162
$4599$50.99
You Save$5.00
Drain Petcock Male

JEGS

Drain Petcock Male

Part Number : 555-51143
$739$7.99
You Save$0.60

Chevy/GM-Style Aluminum Radiators
Chevy/GM-Style Aluminum Radiator
  • Crossflow
  • 2 Row, 1 in. Core
  • 1 1/2 in. Top Inlet
  • 1 3/4 in. Bottom Outlet
  • Street/Drag/Circle Track
  • Dimensions:
    • Overall Size: 28 in. W x 19 in. H
    • Core: 22.875 in. W x 17.500 in. H

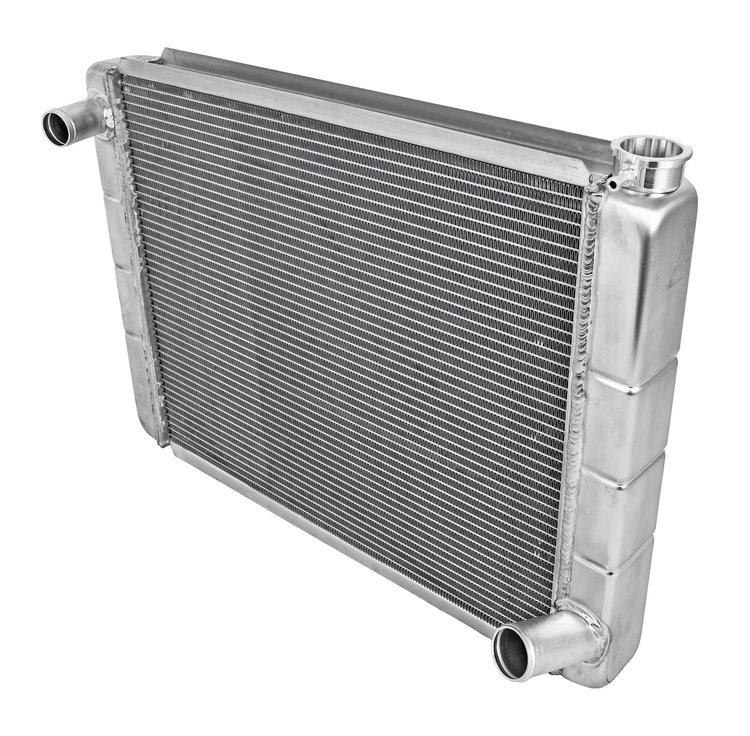

      The JEGS 555-52008 Aluminum Race Radiator is a high-performance 2-row aluminum radiator engineered for universal Chevy and GM racing applications. Northern's exclusive cooling technology delivers up to 24-percent improvement in heat transfer over competing racing radiators, achieved through 2 rows of 1 in. cooling tubes paired with exclusively designed highly louvered cooling fins for maximum heat dissipation. The all-welded, epoxy-free construction with no gaskets provides superior long-term durability and leak resistance under race conditions. Extra heavy reinforced die-stamped tanks add rigidity, while the anodized billet machined filler neck provides better pressure control. Heavy wall 1-1/2 in. inlet and 1-3/4 in. outlet fittings accommodate high-volume coolant flow for demanding race applications.

      JEGS 555-52008 Aluminum Race Radiator Features:

      • Universal Fit; Designed for Chevy and GM Racing Applications
      • 27-1/8 in. x 19-5/8 in. Overall Size;
      • 2-Row Design with 1 in. Cooling Tubes
      • Exclusively Designed Highly Louvered Cooling Fins; Up to 24-Percent Improvement in Heat Transfer Over Competing Racing Radiators

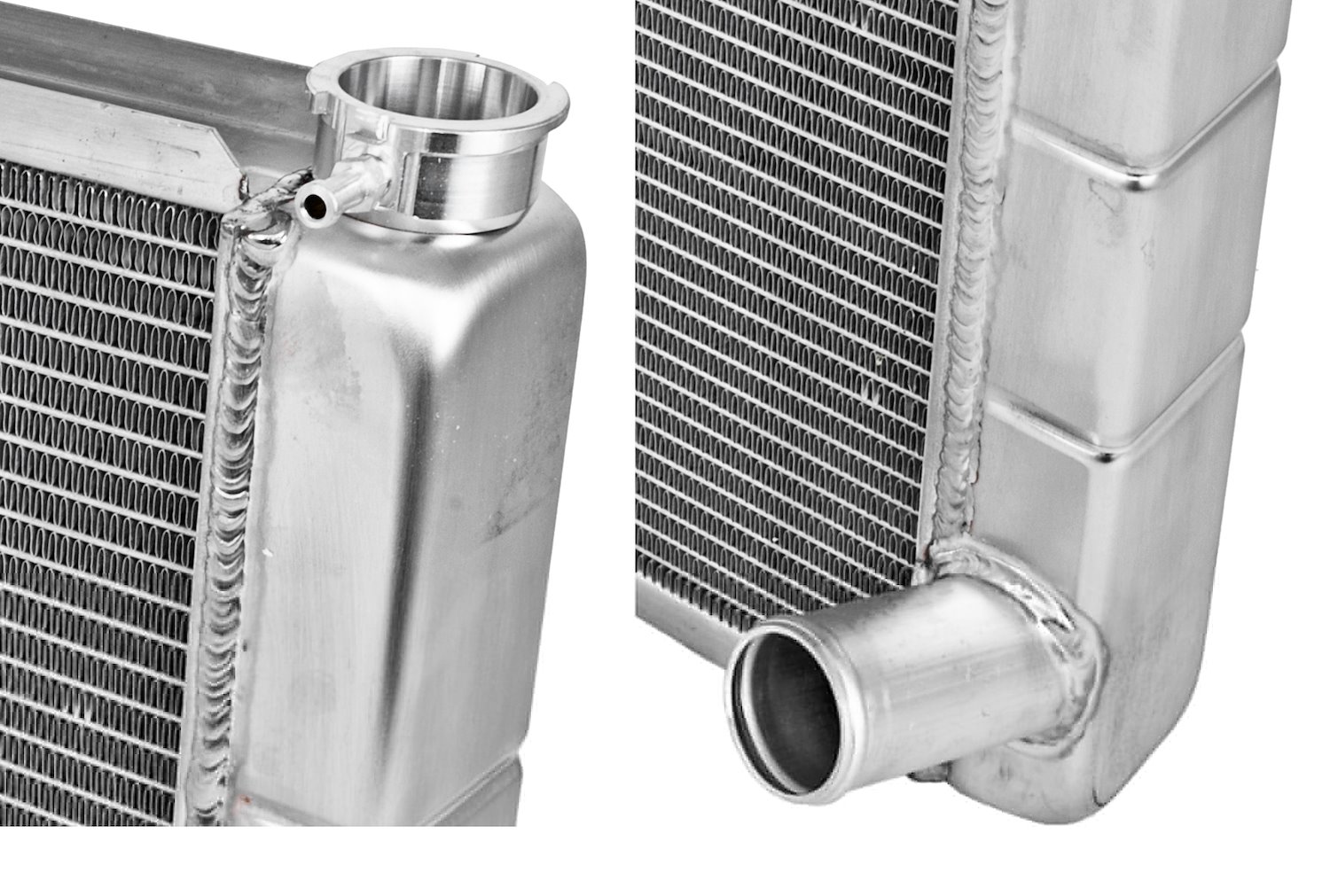

      • All-Welded Construction; No Gaskets; Epoxy-Free for Superior Durability and Leak Resistance Under Race Conditions
      • Extra Heavy Reinforced Die-Stamped Tanks for Added Rigidity
      • Heavy Wall 1-1/2 in. Inlet and 1-3/4 in. Outlet Fittings
      • Anodized Billet Machined Filler Neck for Improved Pressure Control
      • Replaces Northern Part Number 209676
      • Natural Aluminum Finish
      • Sold Individually
  • Part TypeRadiator
    BrandJEGS
    Package Height7.3
    Package Width22.8
    Package Length31.1
    Weight16.11 PG
    Part CategoryPerformance Parts
    Overall Height19 in (482.6 mm)
    Radiator Cap IncludedNo
    Transmission Oil Cooler IncludedNo
    Outlet Diameter1.75 in (44.5 mm)
    Inlet LocationUpper driver side
    Core Height17.5 in (444.5 mm)
    Core Width22.875 in (581 mm)
    Outlet LocationLower passenger side
    Overall Width28 in (711.2 mm)
    Inlet Diameter1.5 in. (38.1 mm)
    Down Flow Or Cross Flow TypeCross Flow
    Part FitmentSemi Universal
    Core Row Quantity2
    Vendor Part Number209676
    Package Qty1
    Package TypeEA
