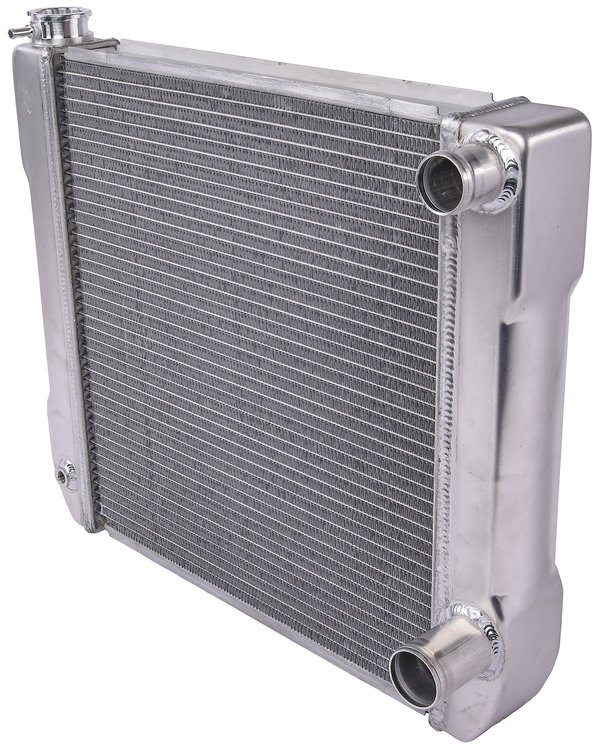

Double Pass Lightweight Aluminum Racing Radiator, 2 Row
InfoVehicle Info Needed
JEGSPART NUMBER: 555-52036

Double Pass Lightweight Aluminum Racing Radiator, 2 Row

$24799$272.99You Save$25.00
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Double Pass Lightweight Aluminum Racing Radiator with Passenger Side Inlet/Outlet
Double Pass Racing Radiator
  • 2 Row
  • 1 in. Tubes
  • Right/Passenger Side Inlet/Outlet
  • 1 1/2 in. Top Inlet
  • 1 3/4 in. Bottom Outlet
  • Lightweight Aluminum
  • Natural Finish
  • Dimensions:
    • Overall: 24 in. W x 19 1/2 in. H

      JEGS 52036 Features:

      • 2 1/8 in. Mounting Channel at the Top and Bottom of Radiator for Universal Mounting
      • Removable 1/4 in. Hose Barb Fitting installed for Radiator Overflow
      • 1/4 in. NPT Port on Left/Driver Side Tank for Drain Valve
      • Lightweight All-Aluminum Construction for improved performance & Cooling
      • Double Pass Crossflow Core Keeps your Race Engine Running Cool!
      • Constructed from Two Rows of 1 In. Nocolok-Brazed Tubes with Maximized Fin Counts For Peak Efficiency

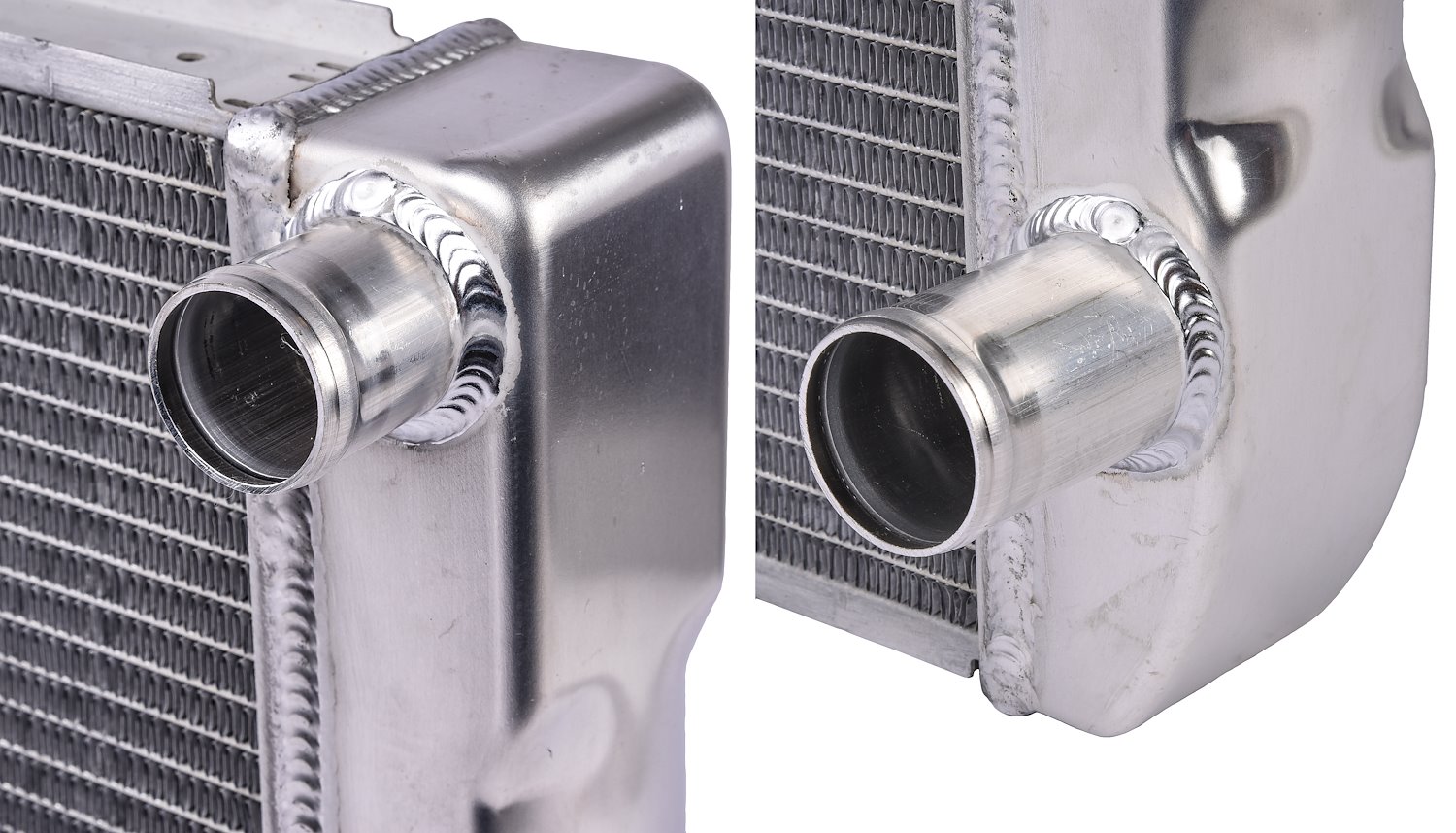

      • Mechanically Formed Aluminum Tanks, that are Fully TIG Welded, Provide Precise Fitment & Ensure Leak-Free Operation
      • Furnace Brazed to Eliminate Leak Prone Epoxy
      • Dimensions:
        • Overall: 24 in. W x 19 1/2 in. H
        • Core: 18 1/2 in. W x 17 1/2 in. H x 2 1/4 in. Thick
    • Part TypeRadiator
    BrandJEGS
    Package Height8.0
    Package Width23.0
    Package Length29.0
    Weight15.5 PG
    Part CategoryPerformance Parts
    Overall Thickness3 in (76.2 mm)
    Overall Height19.5 in (495.3 mm)
    Outlet Size1.75 in (44.5 mm)
    Radiator Cap IncludedNo
    Drain Valve IncludedNo
    Inlet LocationUpper passenger side
    Inlet Size (In.)1.5
    Core Height17.5 in (444.5 mm)
    Core Thickness2.13 in (54.102 mm)
    Mounting Brackets IncludedNo
    Core Width18 in (457.2 mm)
    Row Quantity2
    Overall Width24 in (609.6 mm)
    Tube Size1 in (25.4 mm)
    Fan IncludedNo
    Transmission CoolerNo
    Part FitmentSemi Universal
    FinishPolished
    Radiator StyleCrossflow
    Vendor Part Number209633
    Package Qty1
    Package TypeEA
