Double Pass Lightweight Aluminum Racing Radiator, 2 Row
InfoVehicle Info Needed
JEGSPART NUMBER: 555-52037

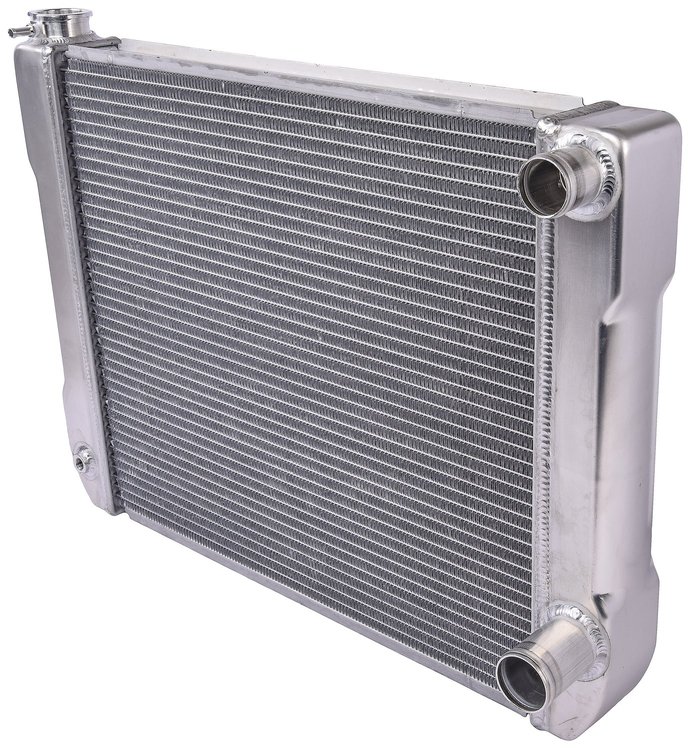

Double Pass Lightweight Aluminum Racing Radiator, 2 Row

$25499$275.39You Save$20.40
3 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Double Pass Lightweight Aluminum Racing Radiator with Passenger Side Inlet/Outlet
Double Pass Racing Radiator
  • 2 Row
  • 1 in. Tubes
  • Crossflow
  • Right/Passenger Side Inlet/Outlet
  • 1 1/2 in. Top Inlet
  • 1 3/4 in. Bottom Outlet
  • Aluminum
  • Natural Finish
  • Dimensions:
    • Overall: 26 in. W x 19 in. H

      • 2 1/8 in. Mounting Channel at the Top and Bottom of Radiator for Universal Mounting
      • Removable 1/4 in. Hose Barb Fitting installed for Radiator Overflow
      • 1/4 in. NPT Port on Left/Driver Side Tank for Drain Valve
      • Lightweight All-Aluminum Construction for improved performance & Cooling
      • Double Pass Crossflow Design Core to Keep your Race Engine Cool!
      • Constructed with 2 Rows of 1 In. Noculoc-Brazed Tubes with Maximized Fin Counts For Peak Efficiency

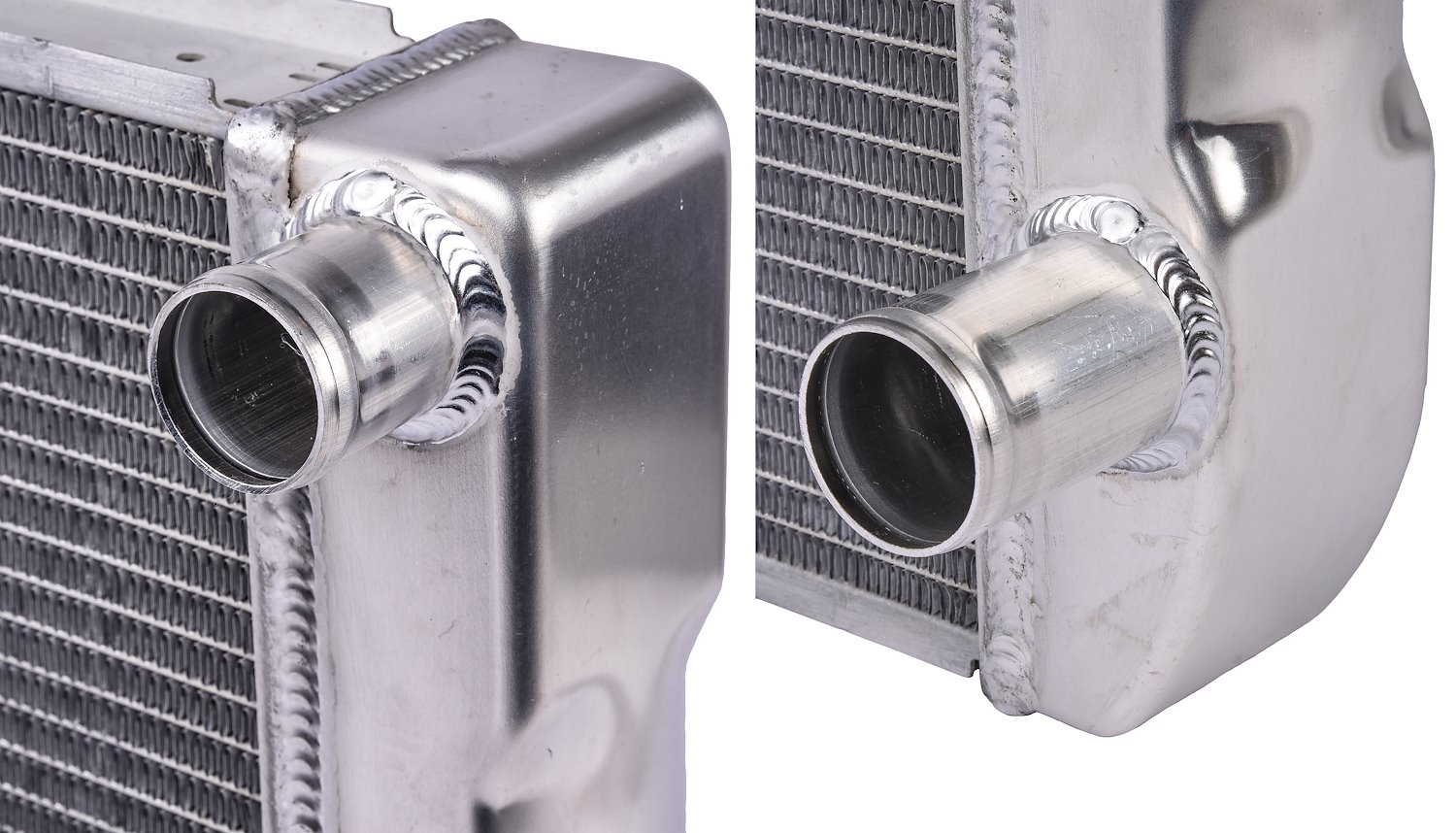

      • Mechanically Formed Aluminum Tanks, that are Fully TIG Welded, Provide Precise Fitment & Ensure Leak-Free Operation
      • Billet Radiator Filler Neck Accepts a Standard Cap with 1 5/8 in. Inner Diameter
      • Furnace Brazed to Eliminate Leak Prone Epoxy & Gaskets
      • Dimensions:
        • Overall: 26 in. W x 19 in. H>/li>
        • Core: 20 in. W x 17 1/2 in. H x 2 1/4 in. Thick
    • Part TypeRadiator
    BrandJEGS
    Package Height7.0
    Package Width22.0
    Package Length34.0
    Weight17.0 PG
    Part CategoryPerformance Parts
    Overall Thickness3 in (76.2 mm)
    Overall Height19 in (482.6 mm)
    Outlet Size1.75 in (44.5 mm)
    Radiator Cap IncludedNo
    Drain Valve IncludedNo
    Inlet LocationUpper passenger side
    MaterialAluminum
    Inlet Size (In.)1.5
    Core Height17.5 in (444.5 mm)
    Core Thickness2.25 in (57.15 mm)
    Mounting Brackets IncludedNo
    Core Width20 in (508 mm)
    Row Quantity2
    Outlet LocationLower passenger side
    Overall Width26 in (660.4 mm)
    Tube Size1 in (25.4 mm)
    Fan IncludedNo
    Transmission CoolerNo
    Part FitmentSemi Universal
    FinishNatural
    Radiator StyleCrossflow
    Vendor Part Number209635
    Package Qty1
    Package TypeEA
