Vehicle Info NeededJEGSPART NUMBER: 555-52048

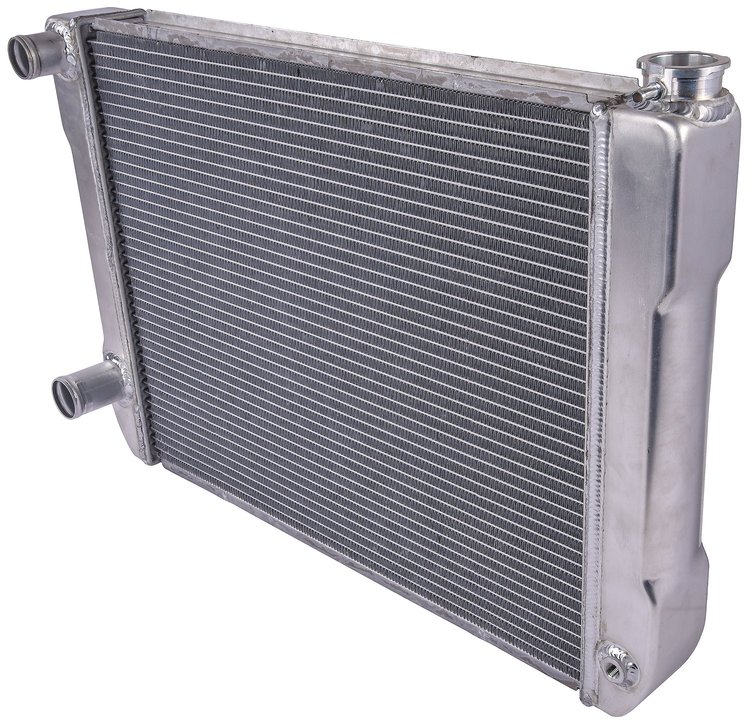

Double Pass Racing Radiator 2 Row 1" Core
$26699$293.99You Save$27.00
Ships on 09/08/2026
Lowest Price GuaranteeDouble Pass Lightweight Aluminum Racing Radiator with Driver Side Inlet/Outlet
Double Pass Racing Radiator2 Row 1" Core 1-1/2" Top Inlet 1-3/4" Bottom Outlet Driver Side
Dimensions: Overall: 28" W x 19" H Core: 22" W x 17-1/2" H
Dimensions:
- Lightweight All-Aluminum Construction for improved performance & Cooling
- Double or Triple Pass Cores to Keep your Race Engine Cool!
- Four Styles Available to Fit Your Dragster, Roadster, Prostock or Scirocco Needs
- Popular 1 1/2 in. Inlet & 1 3/4 in. Outlet, Also Available with -12 AN Port Style Fittings
- Multiple Sizes Available to Fit Most Applications
- Constructed with Two Rows of 1 In. Noculoc-Brazed Tubes with Maximized Fin Counts For Peak Efficiency

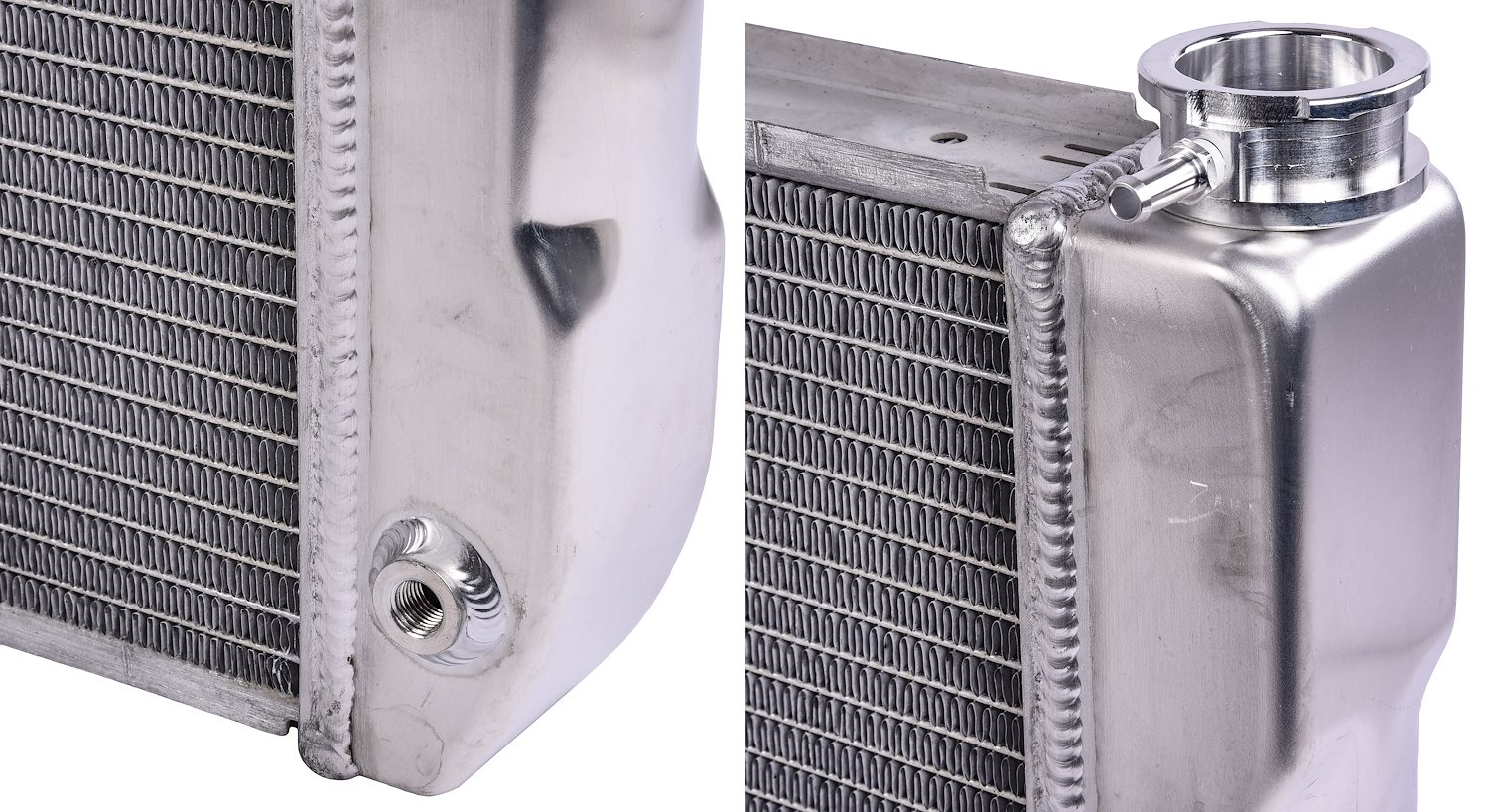

- Mechanically Formed Aluminum Tanks, that are Fully TIG Welded, Provide Precise Fitment & Ensure Leak-Free Operation
- Billet Radiator Filler Necks Accept Standard 1 5/8 in. Inner Cap Diameter, Also Available without Filler Neck
- Furnace Brazed to Eliminate Leak Prone Epoxy & Gaskets
Part TypeRadiator
BrandJEGS
Package Height8.0
Package Width23.0
Package Length29.0
Weight15.5 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height19 in (482.6 mm)
Outlet Size1.75 in (44.5 mm)
Inlet LocationUpper driver side
MaterialAluminum
Inlet Size (In.)1.5
Core Height17.5 in (444.5 mm)
Core Thickness2 in (50.8 mm)
Core Width22 in (558.8 mm)
Row Quantity2
Outlet LocationLower driver side
Overall Width28 in (711.2 mm)
Tube Size1 in (25.4 mm)
Fan IncludedNo
Transmission CoolerNo
Part FitmentSemi Universal
FinishPolished
Radiator StyleCrossflow
Vendor Part Number209625
Package Qty1
Package TypeEA
