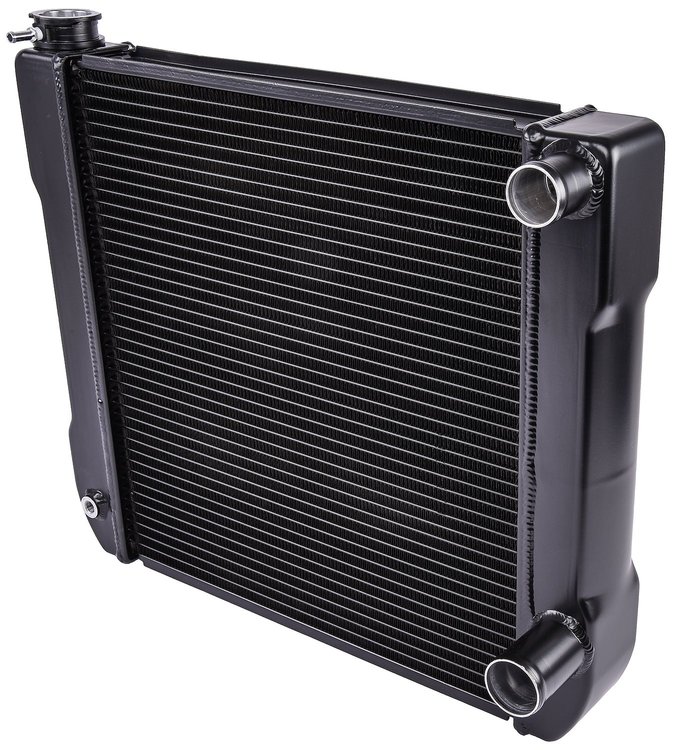

Double Pass Lightweight Aluminum Racing Radiator, 2 Row Black
Product Discontinued
JEGSPART NUMBER: 555-52056

Double Pass Lightweight Aluminum Racing Radiator, 2 Row Black

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Double Pass Lightweight Aluminum Racing Radiator with Passenger Side Inlet/Outlet
Double Pass Racing Radiator
  • 2 Row
  • 1 in. Tubes
  • Crossflow
  • Passenger Side Inlet/Outlet
  • 1 1/2 in. Top Inlet
  • 1 3/4 Bottom Outlet
  • Aluminum
  • Black Powder Coat Finish
  • Dimensions:
    • Overall: 22 1/8 in. W x 18 5/8 in. H

      JEGS 52056 Features:

      • 2 1/8 in. Mounting Channel at the Top and Bottom of Radiator for Universal Mounting

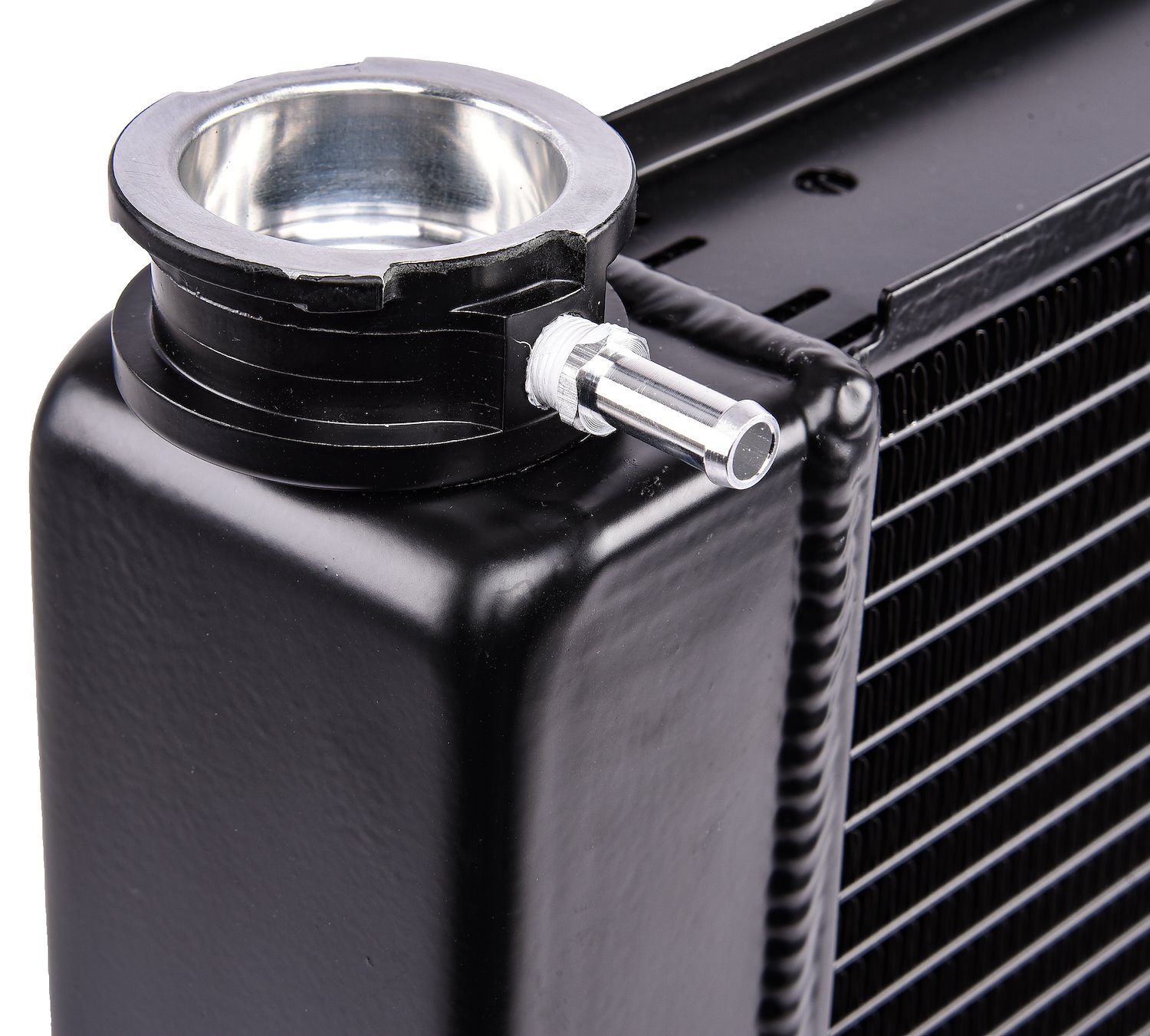

      • Billet Radiator Filler Neck Accepts a Standard Cap with 1 5/8 in. Inner Diameter
      • Removable 1/4 in. Hose Barb Fitting installed in Filler Neck for Radiator Overflow
      • 1/4 in. NPT Port on Left/Driver Side Tank for Drain Valve
      • Lightweight All-Aluminum Construction for improved performance & Cooling
      • Double Pass Core Keeps your Race Engine Running Cool!
      • Constructed from Two Rows of 1 In. Nocolok-Brazed Tubes with Maximized Fin Counts For Peak Efficiency
      • Mechanically Formed Aluminum Tanks, that are Fully TIG Welded, Provide Precise Fitment & Ensure Leak-Free Operation
      • Furnace Brazed to Eliminate Leak Prone Epoxy
      • Dimensions:
        • Overall: 22 1/8 in. W x 18 5/8 in. H
        • Core: 17 in. W x 17 3/4 in. H x 2 1/8 in. Thick
    • Part TypeRadiator
    BrandJEGS
    Package Height7.4
    Package Width22.7
    Package Length25.0
    Weight13.6 PG
    Part CategoryPerformance Parts
    Overall Thickness3 in (76.2 mm)
    Overall Height18.625 in (473.1 mm)
    Outlet Size1.75 in (44.5 mm)
    Drain Valve IncludedNo
    Inlet LocationUpper passenger side
    Inlet Size (In.)1.5
    Core Height17.75 in (450.85 mm)
    Core Thickness2 in (50.8 mm)
    Core Width17 in (431.8 mm)
    Row Quantity2
    Outlet LocationLower passenger side
    Overall Width22.125 in (562 mm)
    Tube Size1 in (25.4 mm)
    Fan IncludedNo
    Transmission CoolerNo
    FinishBlack Powder Coat
    Package Qty1
    Package TypeEA
