Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

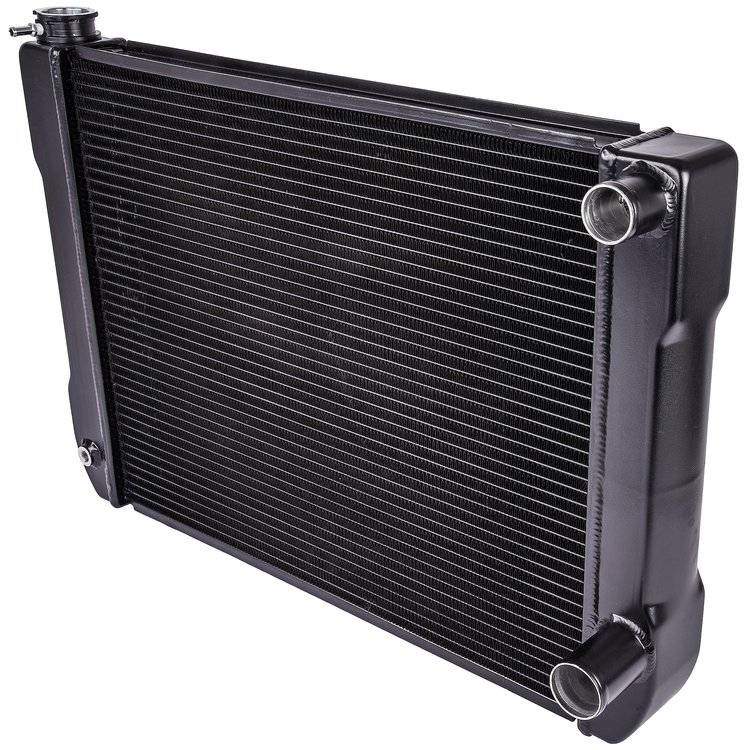

Double Pass Lightweight Aluminum Racing Radiator with Passenger Side Inlet/Outlet
Double Pass Racing Radiator2 Row 1 in. Tubes Crossflow Right/Passenger Side Inlet/Outlet 1 1/2 in. Top Inlet 1 3/4 in. Bottom Outlet Aluminum Black Powder Coat Finish Dimensions:
- Overall: 28 in. W x 19 1/2 in. H
JEGS 52058 Features:
- 2 1/8 in. Mounting Channel at the Top and Bottom of Radiator for Universal Mounting
- Removable 1/4 in. Hose Barb Fitting installed for Radiator Overflow
- 1/4 in. NPT Port on Left/Driver Side Tank for Drain Valve
- Lightweight All-Aluminum Construction for improved performance & Cooling
- Double Pass Crossflow Design Core to Keep your Race Engine Cool!
- Constructed with 2 Rows of 1 In. Noculoc-Brazed Tubes with Maximized Fin Counts For Peak Efficiency
- Mechanically Formed Aluminum Tanks, that are Fully TIG Welded, Provide Precise Fitment & Ensure Leak-Free Operation

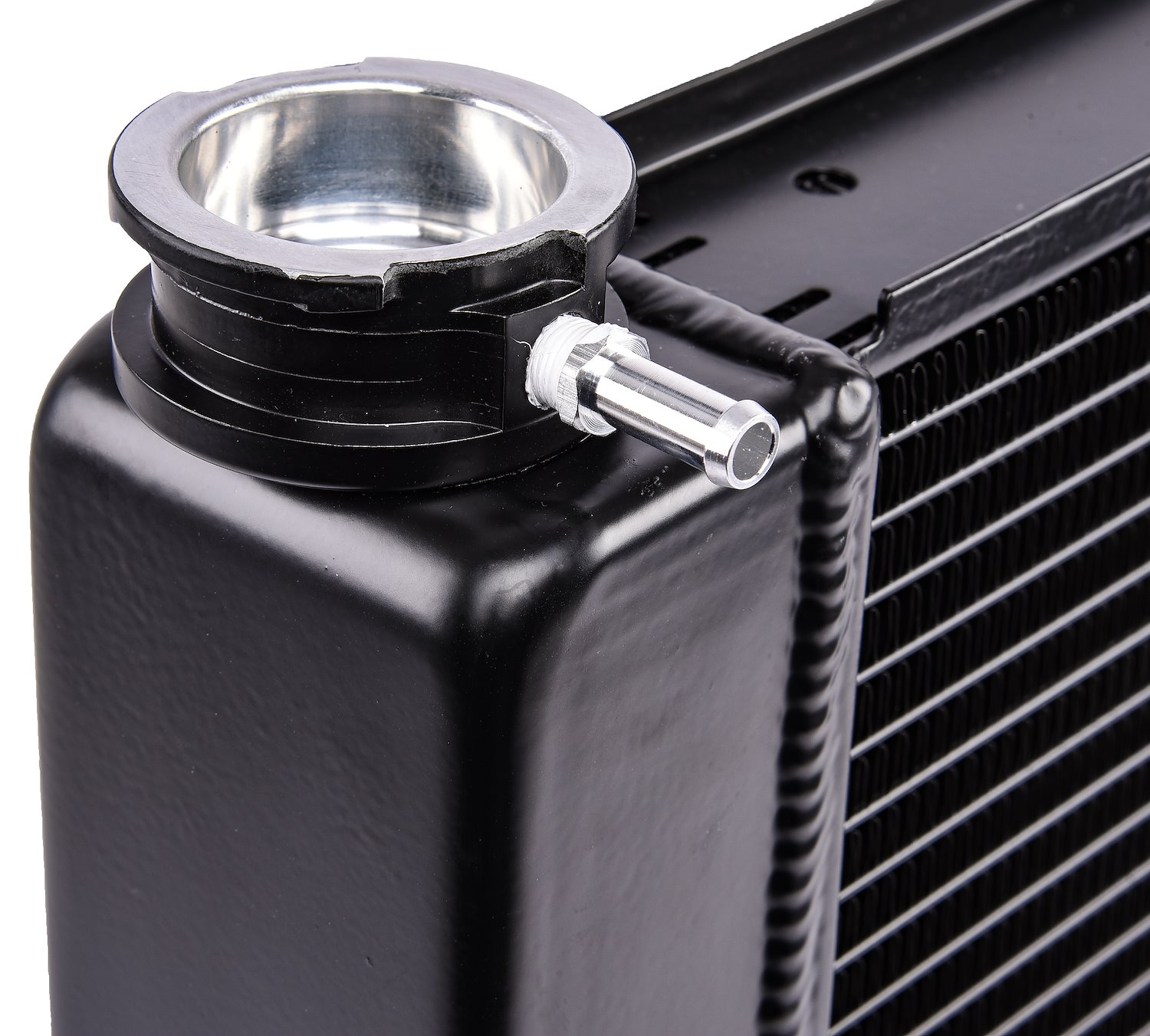

- Billet Radiator Filler Neck Accepts a Standard Cap with 1 5/8 in. Inner Diameter
- Furnace Brazed to Eliminate Leak Prone Epoxy & Gaskets
- Dimensions:
- Overall: 28 in. W x 19 in. H
- Core: 23 1/2 in. W x 17 1/2 in. H x 2 1/4 in. Thick
Part TypeRadiator
BrandJEGS
Package Height7.4
Package Width22.6
Package Length31.3
Weight16.6 PG
Part CategoryPerformance Parts
Overall Height19.5 in (495.3 mm)
Core Thickness2.25 in (57.15 mm)
Mounting Brackets IncludedNo
Core Width23.5 in (596.9 mm)
Drain Valve IncludedNo
Row Quantity2
Inlet LocationUpper passenger side
Fan IncludedNo
FinishBlack Powder Coat
Inlet Size (In.)1.5
Core Height17.5 in (444.5 mm)
Package Qty1
Package TypeEA
