![Ready Fit Aluminum Radiator Fits Select 1963-1966 Chevy, GMC Trucks, 1961-1966 Pontiac Models w/V8 Eng. [Auto Trans]](https://www.jegs.com/images/mini_750/500/555/555-52299.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-52299

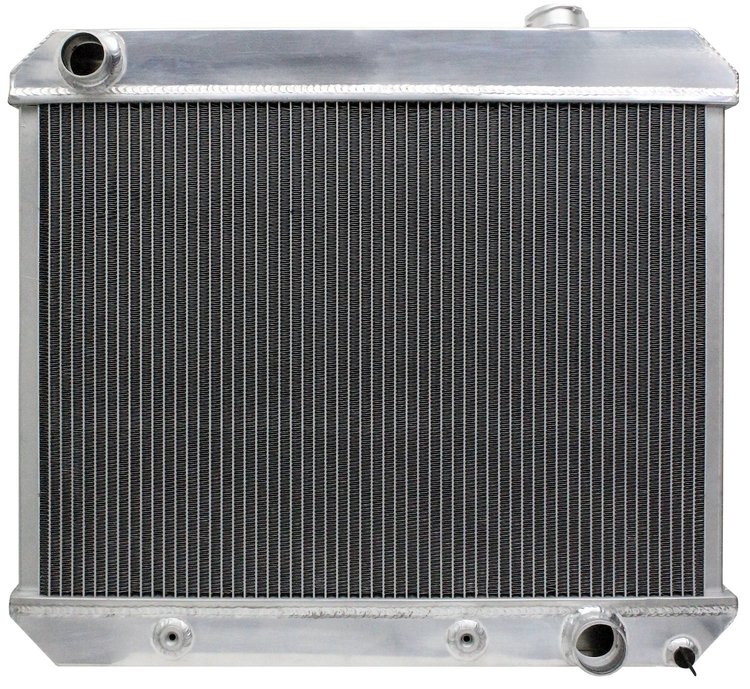

Ready Fit Aluminum Radiator Fits Select 1963-1966 Chevy, GMC Trucks, 1961-1966 Pontiac Models w/V8 Eng. [Auto Trans]
$25099$276.99You Save$26.00
Ships on 09/15/2026
Lowest Price GuaranteeGM Car/Truck
Aluminum RadiatorFits Select 1963-66 Chevy/GMC Trucks 1961-66 Pontiac Models w/389 or 421 V8 See Fitment Tab for Applications 21.625 in. H x 24.875 in. W Overall 16.625 in. H x 22.625 in. W Core 1.5 in. Inlet 1.75 in. Outlet Auto
JEGS 555-52299 Ready-Fit Aluminum Radiator Features:
- Built To Perform, JEGS Ready Fit Radiators are 100% Aluminum Welded Construction
- Lighter Than Copper/Brass and Provides Up To 75% More Cooling Capacity
- Billet Machined Filler Necks for Better Pressure Control
- Downflow Design
- 21.625 in. H x 24.875 in. W Overall Dimensions
- 16.625 in. H x 22.625 in. W Core Dimensions
- Top driver's side = 1 1/2 in. Inlet
- Bottom passenger's side = 1 3/4 in. Outlet
- Includes a High-Performance 7 Plate Transmission Cooler
JEGS 555-52299 Ready-Fit Aluminum Radiator Note:
- Replaces Northern Part Number 205231
Aluminum Leak-Free Radiators that Provide Peak Efficiency and Performance
JEGS Ready Fit Performance Aluminum Radiators are manufactured from light-weight all-aluminum construction for strength and durability. These Radiators are assembled with fully TIG-welded billet filler necks and mechanically formed tanks, along with two rows of 1-inch noculoc-brazed tubes and maximized fin counts that provide a leak-free cooling system with peak efficiency and performance.
JEGS also offers other Reproduction Style Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods. and Engine Conversions, For more information, CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Ready Fit Aluminum Radiators
BrandJEGS
Package Height7.0
Package Width25.0
Package Length29.0
Weight17.0 PG
Part CategoryReplacement Parts
Overall Thickness2.5 in. (63.5 mm)
Overall Height21.625 in. (549.275 mm)
Outlet Size1.75 in. (44.45 mm)
Inlet LocationUpper driver side
MaterialAluminum
Inlet Size (In.)1.5 in. (38.1 mm)
Core Height16.625 in. (422.275 mm)
Core Thickness2.125 in. (53.975 mm)
Core Width22.625 in. (574.675 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width24.875 in. (631.825 mm)
Tube Size1 in. (25.4 mm)
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
FinishPolished
Radiator StyleDownflow
Package Qty1
Package TypeEA
