![Aluminum Radiator for 1967-1969 Chevrolet Camaro w/GM LS Engine Conversion [Auto Trans]](https://www.jegs.com/images/mini_750/500/555/555-52306.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-52306

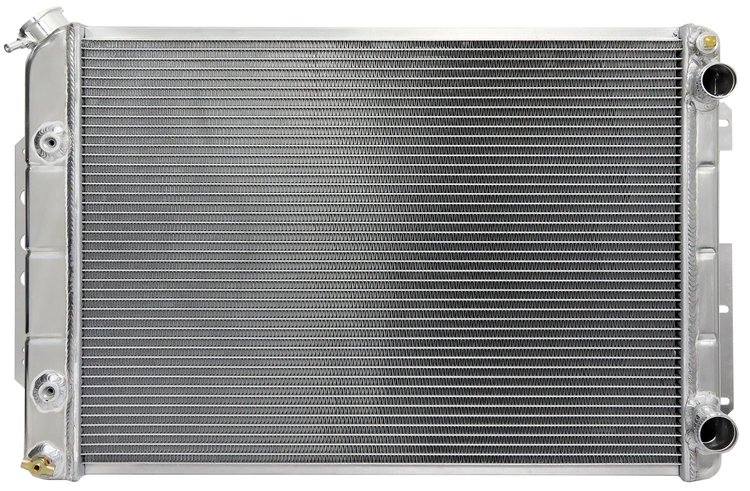

Aluminum Radiator for 1967-1969 Chevrolet Camaro w/GM LS Engine Conversion [Auto Trans]
$53899$592.99You Save$54.00
Ships Tomorrow
Lowest Price GuaranteeGM Models w/GM LS Engine
Aluminum Radiator1967-1969 Chevrolet Camaro w/GM LS Engine Conversion 27.75 in. H x 18.5 in. W Overall 23.875 in. H x 17.375 in. W Core 1.375 in. Inlet 1.5 in. Outlet Automatic Transmission
JEGS 555-52306 Aluminum Radiator Features:
- Built To Perform, JEGS Conversion Radiators are 100% Aluminum Welded Construction
- Lighter Than Copper/Brass and Provides Up To 75% More Cooling Capacity
- Billet Machined Filler Necks for Better Pressure Control
- Crossflow Design
- 27.75 in. H x 18.5 in. W Overall Dimensions
- 23.875 in. H x 17.375 in. W Core Dimensions
- Top passenger's side = 1 3/8 in. Inlet
- Bottom passenger's side = 1 1/2 in. Outlet
- Includes a High-Performance 7 Plate Transmission Cooler
- 1/8 in. NPT Steam Port
- Uses 5/16 in. inverted flare tube OE fittings for transmission cooler
JEGS 555-52306 Aluminum Radiator Note:
- Replaces Northern Part Number 205182
Part TypeRadiator
BrandJEGS
Package Height7.2
Package Width22.3
Package Length31.6
Weight18.995 PG
Part CategoryReplacement Parts
Overall Thickness3.125 in. (79.375 mm)
Overall Height27.75 in. (704.85 mm)
Outlet Size1.5 in. (38.1 mm)
Inlet LocationUpper passenger side
MaterialAluminum
Inlet Size (In.)1.375 in. (34.93 mm)
Core Height23.875 in. (606.425 mm)
Core Thickness2.25 in. (57.15 mm)
Core Width17.375 in. (441.325 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width18.5 in. (469.9 mm)
Tube Size1 in. (25.4 mm)
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
FinishPolished
Radiator StyleCrossflow
Package Qty1
Package TypeEA
