Vehicle Info NeededJEGSPART NUMBER: 555-52308

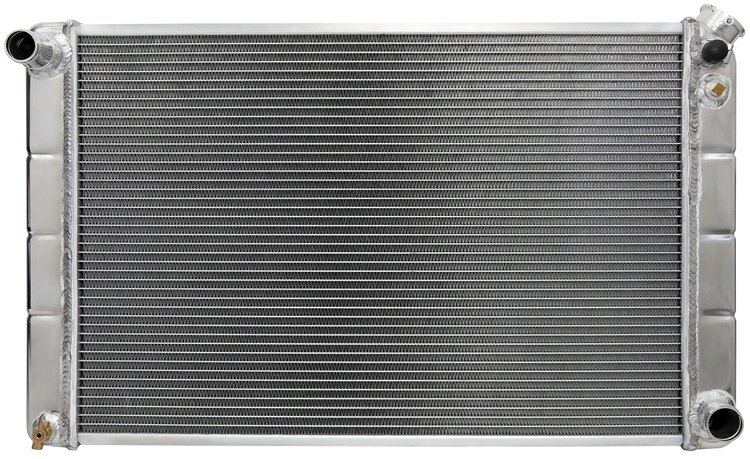

Ready Fit Aluminum Radiator for 1980-1990 Chevy Caprice, 1980-1985 Chevy Impala, 1975-1979 Chevy Nova [Manual Trans]
$38799$426.99You Save$39.00
Ships on 09/15/2026
Lowest Price GuaranteeGM
Aluminum Radiator1980-1990 Chevrolet Caprice 1980-1985 Chevrolet Impala 1975-1979 Chevrolet Nova 30.75 in. x 18.625 in. Overall 26 in. x 17.375 in. Core 1.5 in. Inlet 1.5 in. Outlet Manual Transmission
JEGS 555-52308 Ready-Fit Aluminum Radiator Features:
- Built To Perform, JEGS Ready Fit Radiators are 100% Aluminum Welded Construction
- Lighter Than Copper/Brass and Provides Up To 75% More Cooling Capacity
- Billet Machined Filler Necks for Better Pressure Control
- 30.75 in. x 18.625 in. Overall Dimensions
- 26 in. x 17.375 in. Core Dimensions
- Top driver's side = 1 1/2 in. Inlet
- Bottom passenger's side = 1 1/2 in. Outlet
- 1/8 in. NPT Sensor Port
- 5/8 in. Heater Return capped
JEGS 555-52308 Ready-Fit Aluminum Radiator Note:
- Compare your dimensions before purchasing to ensure an easy installation
- Replaces Northern Part Number 205056
Aluminum Leak-Free Radiators that Provide Peak Efficiency and Performance
JEGS Ready Fit Performance Aluminum Radiators are manufactured from light-weight all-aluminum construction for strength and durability. These Radiators are assembled with fully TIG-welded billet filler necks and mechanically formed tanks, along with two rows of 1-inch noculoc-brazed tubes and maximized fin counts that provide a leak-free cooling system with peak efficiency and performance.
JEGS also offers other Reproduction Style Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods. and Engine Conversions, For more information, CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Ready Fit Aluminum Radiators
BrandJEGS
Package Height8.6
Package Width21.9
Package Length33.5
Weight18.7 PG
Part CategoryReplacement Parts
Overall Thickness3.125 in. (79.375 mm)
Overall Height30.75 in. (781.05 mm)
Outlet Size1.5 in. (38.1 mm)
Inlet LocationUpper driver side
MaterialAluminum
Inlet Size (In.)1.5 in. (38.1 mm)
Core Height26 in. (660.4mm)
Core Thickness2.25 in. (57.15 mm)
Core Width17.375 in. (441.325 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width18.625 in. (473.075 mm)
Tube Size1 in. (25.4 mm)
Fan IncludedNo
Transmission CoolerNo
Part FitmentDirect Fit
FinishPolished
Radiator StyleCrossflow
Package Qty1
Package TypeEA
