![Ready Fit Aluminum Radiator for 1994-1996 Ford Mustang w/3.8L V6 Eng., 1994-1995 Ford Mustang w/5.0L V8 Eng. [Auto Trans]](https://www.jegs.com/images/mini_750/500/555/555-52335.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-52335

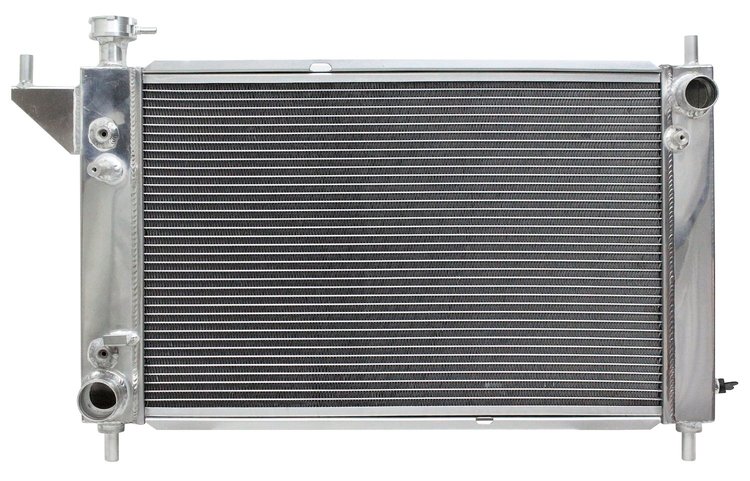

Ready Fit Aluminum Radiator for 1994-1996 Ford Mustang w/3.8L V6 Eng., 1994-1995 Ford Mustang w/5.0L V8 Eng. [Auto Trans]
$32699$359.99You Save$33.00
Ships on 09/15/2026
Lowest Price GuaranteeFord, Mercury
Aluminum Radiator1994-1996 Ford Mustang w/3.8L V6 Eng. 1994-1995 Ford Mustang w/5.0L V8 Eng. 28.625 in. H x 15.75 in. W Overall 23.5 in. H x 14.75 in. W Core 1.5 in. Inlet 1.75 in. Outlet Automatic Transmission
JEGS 555-52335 Ready-Fit Aluminum Radiator Features:
- Built To Perform, JEGS Ready Fit Radiators are 100% Aluminum Welded Construction
- Lighter Than Copper/Brass and Provides Up To 75% More Cooling Capacity
- Billet Machined Filler Necks for Better Pressure Control
- Crossflow Design
- 28.625 in. H x 15.75 in. W Overall Dimensions
- 23.5 in. H x 14.75 in. W Core Dimensions
- Top passenger's side = 1 1/2 in. Inlet
- Bottom driver's side = 1 3/4 in. Outlet
- Includes a High-Performance 7 Plate Transmission Cooler
- Uses 1/8 NPT tube OE fittings for transmission cooler
JEGS 555-52335 Ready-Fit Aluminum Radiator Note:
- Replaces Northern Part Number 205177
Aluminum Leak-Free Radiators that Provide Peak Efficiency and Performance
JEGS Ready Fit Performance Aluminum Radiators are manufactured from light-weight all-aluminum construction for strength and durability. These Radiators are assembled with fully TIG-welded billet filler necks and mechanically formed tanks, along with two rows of 1-inch noculoc-brazed tubes and maximized fin counts that provide a leak-free cooling system with peak efficiency and performance.
JEGS also offers other Reproduction Style Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods. and Engine Conversions, For more information, CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Ready Fit Aluminum Radiators
BrandJEGS
Package Height7.3
Package Width24.1
Package Length33.5
Weight16.44 PG
Part CategoryReplacement Parts
Overall Thickness3.125 in. (79.375 mm)
Overall Height28.625 in. (727.075 mm)
Outlet Size1.75 in. (44.45 mm)
Inlet LocationUpper passenger side
MaterialAluminum
Inlet Size (In.)1.5 in. (38.1 mm)
Core Height23.5 in. (596.9 mm)
Core Thickness2.125 in. (53.975 mm)
Core Width14.75 in. (374.65 mm)
Row Quantity2
Outlet LocationLower driver side
Overall Width15.75 in. (400.05mm)
Tube Size1 in. (25.4 mm)
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
FinishPolished
Radiator StyleCrossflow
Package Qty1
Package TypeEA
