![Ready Fit Aluminum Radiator for 1968-1974 AMC AMX, Javelin w/6 cyl. or V8 Engine [Auto Trans]](https://www.jegs.com/images/mini_750/500/555/555-52336.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-52336

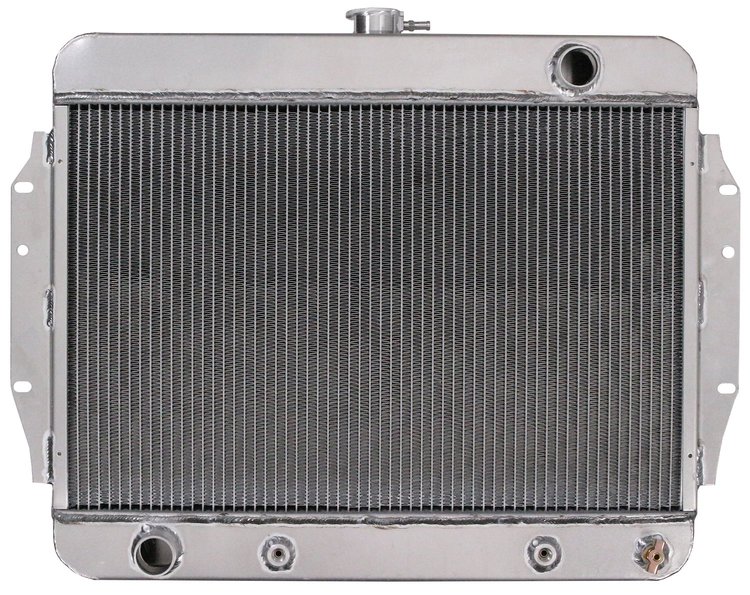

Ready Fit Aluminum Radiator for 1968-1974 AMC AMX, Javelin w/6 cyl. or V8 Engine [Auto Trans]
$59799$657.99You Save$60.00
1 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeAMC
Aluminum Radiator1968-1974 AMC AMX, Javelin w/6 cyl. or V8 Engine 20.5 in. H x 24.25 in. W Overall 15.25 in. H x 23.125 in. W Core 1.5 in. Inlet 1.5 in. Outlet Automatic Transmission
JEGS 555-52336 Ready-Fit Aluminum Radiator Features:
- Built To Perform, JEGS Ready Fit Radiators are 100% Aluminum Welded Construction
- Lighter Than Copper/Brass and Provides Up To 75% More Cooling Capacity
- Billet Machined Filler Necks for Better Pressure Control
- Downflow Design
- 20.5 in. H x 24.25 in. W Overall Dimensions
- 15.25 in. H x 23.125 in. W Core Dimensions
- Top passenger's side = 1 1/2 in. Inlet
- Bottom driver's side = 1 1/2 in. Outlet
- Includes a High-Performance 7 Plate Transmission Cooler
- Uses 5/16 in. inverted flare tube OE fittings for transmission cooler
JEGS 555-52336 Ready-Fit Aluminum Radiator Note:
- Replaces Northern Part Number 205185
Aluminum Leak-Free Radiators that Provide Peak Efficiency and Performance
JEGS Ready Fit Performance Aluminum Radiators are manufactured from light-weight all-aluminum construction for strength and durability. These Radiators are assembled with fully TIG-welded billet filler necks and mechanically formed tanks, along with two rows of 1-inch noculoc-brazed tubes and maximized fin counts that provide a leak-free cooling system with peak efficiency and performance.
JEGS also offers other Reproduction Style Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods. and Engine Conversions, For more information, CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Ready Fit Aluminum Radiators
BrandJEGS
Package Height8.0
Package Width24.0
Package Length31.0
Weight19.18 PG
Part CategoryReplacement Parts
Overall Thickness3.125 in. (79.375 mm)
Overall Height20.5 in. (520.7 mm)
Outlet Size1.5 in. (38.1 mm)
Inlet LocationUpper passenger side
MaterialAluminum
Inlet Size (In.)1.5 in. (38.1 mm)
Core Height15.25 in. (387.35 mm)
Core Thickness2.25 in. (57.15 mm)
Core Width23.125 in. (587.375 mm)
Row Quantity2
Outlet LocationLower driver side
Overall Width24.25 in. (615.95 mm)
Tube Size1 in. (25.4 mm)
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
FinishPolished
Radiator StyleDownflow
Package Qty1
Package TypeEA
