![Aluminum Radiator for 1940 Ford Deluxe w/Chevy V8 Engine Conversion [Auto Trans]](https://www.jegs.com/images/mini_750/500/555/555-52337.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-52337

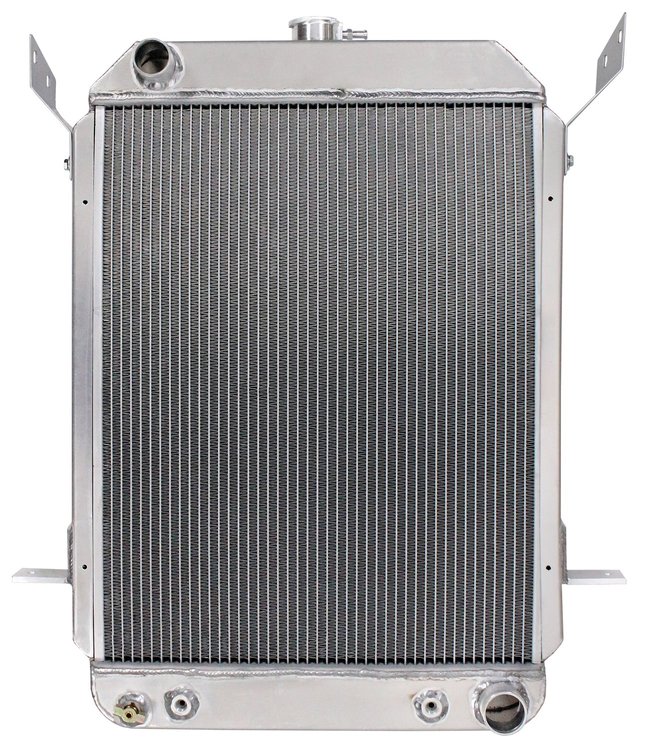

Aluminum Radiator for 1940 Ford Deluxe w/Chevy V8 Engine Conversion [Auto Trans]
$49099$540.99You Save$50.00
Ships Tomorrow
Lowest Price Guarantee1940 Ford Deluxe w/Chevy Engine
Aluminum Radiator1940 Ford Deluxe w/Chevy V8 Engine Conversion 27.75 in. H x 20 in. W Overall 22.375 in. H x 18 in. W Core 1.5 in. Inlet 1.75 in. Outlet Automatic Transmission
JEGS 555-52337 Aluminum Radiator Features:
- Built To Perform, JEGS Conversion Radiators are 100% Aluminum Welded Construction
- Lighter Than Copper/Brass and Provides Up To 75% More Cooling Capacity
- Billet Machined Filler Necks for Better Pressure Control
- Downflow Design
- 27.75 in. H x 20 in. (25 in. including brackets) W Overall Dimensions
- 22.375 in. H x 18 in. W Core Dimensions
- Top driver's side = 1 1/2 in. Inlet
- Bottom passenger's side = 1 3/4 in. Outlet
- Includes a High-Performance 7 Plate Transmission Cooler
- Uses 5/16 in. inverted flare tube OE fittings for transmission cooler
JEGS 555-52337 Aluminum Radiator Note:
- Replaces Northern Part Number 205187
Efficient Cooling for your Street Rod
JEGS Aluminum Street Rod Radiators are designed to make your engine conversion project a breeze and provide efficient cooling. Each radiator is hand-made from 100-percent aluminum with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific engine conversion application. These units are a direct bolt-in to the factory vehicle location, easy to install, and will provide your Street Rod with a clean look. These radiators are available with or without an electric fan.
JEGS also offers other Reproduction Style Aluminum Radiators for Classic Cars, Classic Trucks, and Engine Conversions. For more information CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Aluminum Radiators for Street Rods
BrandJEGS
Package Height8.1
Package Width26.9
Package Length31.3
Weight21.34 PG
Part CategoryReplacement Parts
Overall Thickness3.125 in. (79.375 mm)
Overall Height27.75 in. (704.85 mm)
Outlet Size1.75 in. (44.45 mm)
Inlet LocationUpper driver side
MaterialAluminum
Inlet Size (In.)1.5 in. (38.1 mm)
Core Height22.375 in. (568.325 mm)
Core Thickness2.25 in. (57.15 mm)
Core Width18 in. (457.2 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width20 in. (508 mm) (25 in. Including Brackets) (635 mm)
Tube Size1 in. (25.4 mm)
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
FinishPolished
Radiator StyleDownflow
Package Qty1
Package TypeEA
