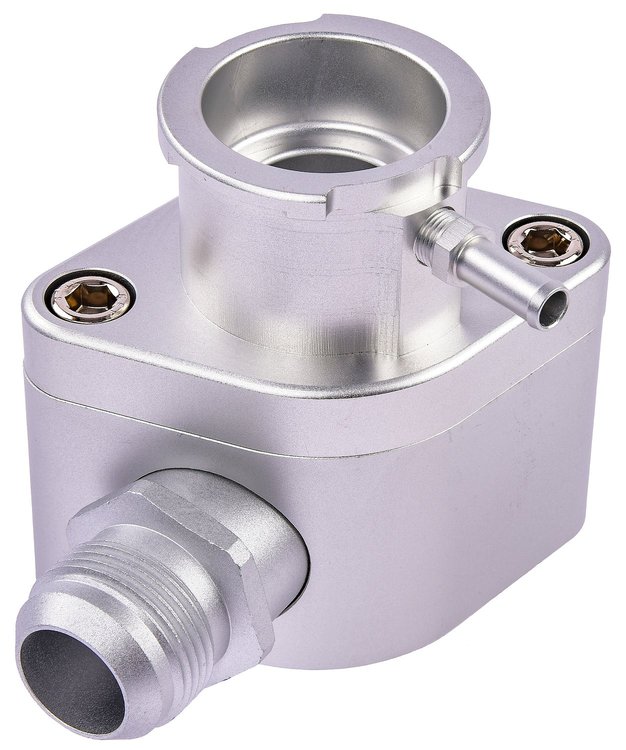

Note: The filler housing main body is reversible and can be mounted so the outlet will exit towards the right/passenger side or left/driver side of the radiator. The filler neck is also reversible and can be mounted so that the overflow tube faces to the front or the rear of the engine.

Includes:

• (1) Filler Neck: 2 in. High. Radiator Cap not included. We recommend JEGS 16 lb radiator cap 555-51160, 555-51161, 555-51162 or 555-51163
• (1) Overflow Tube: 1/8 in. NPT x 5/16 O.D. x 1 1/4 in. L
• (1) Filler Housing Main Body: 2 in. High
  • (1) Outlet connection: -16 AN Male
  • (1) 1/2 in. NPT port for installing water temperature sending unit
  • (2) 1/4 in. NPT port for return lines on popular aftermarket cylinder heads
• (2) Mounting Bolts: 3/8 in.-16 x 2 3/4 in. stainless steel with 5/16 in. allen head
• (1) O-ring Seal: .090 Thick x 2.565 in. O.D.
• (1) Mounting Gasket
