![Standard-Flow Thermostat for Ford Coyote 5.0L Engines [170-Degree]](https://www.jegs.com/images/mini_750/500/555/555-53244.jpg)
JEGSPART NUMBER: 555-53244

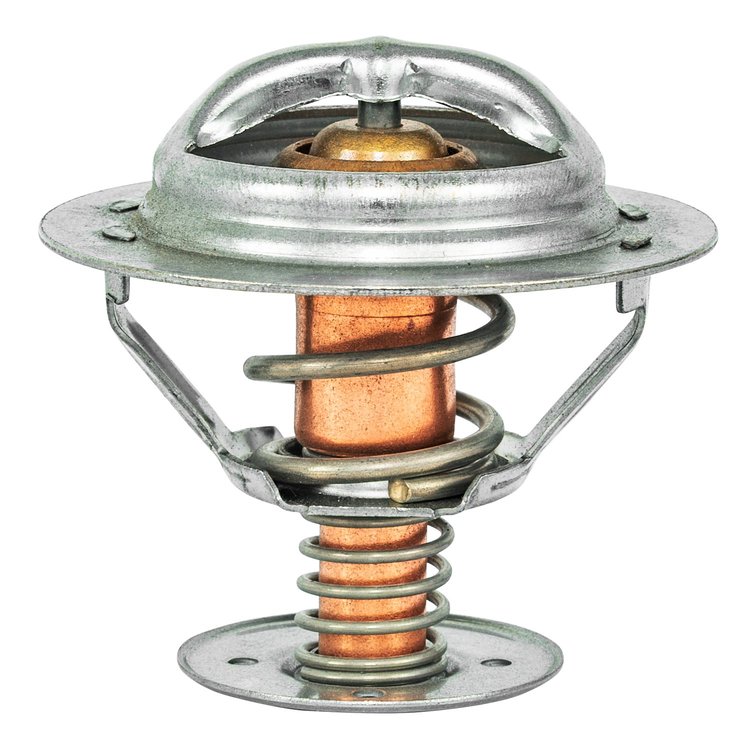

Standard-Flow Thermostat for Ford Coyote 5.0L Engines [170-Degree]
$2890$31.99You Save$3.09
4 left in stockFord Coyote
Standard-Flow ThermostatFord Coyote 5.0L Engines 170-Degree Copper/Stainless Steel Sold Individually
JEGS 555-53244 Thermostat Features:
Upgrade your cooling system and unlock more power in your Ford Coyote 5.0L with a performance 170-degree thermostat. Designed to open significantly earlier than the factory 210-degree thermostat, this upgrade helps lower your engine’s operating temperature, which can lead to improved efficiency, reduced heat soak, and increased horsepower—especially during spirited driving or track use.
- High-quality stainless steel and copper construction ensures strength, longevity, and corrosion resistance
- Engineered to meet or exceed OEM standards for reliability and durability under all operating conditions
- Delivers a consistent and precise response to your engine’s cooling demands for optimal performance
- Direct-fit OE-style design allows for a quick and hassle-free installation without modifications
- To maximize the benefits of the lower temp thermostat, it’s strongly recommended to update your tune so the cooling fans activate at a lower threshold
Part TypeThermostat
BrandJEGS
Package Height59.18 mm
Package Width3.6
Package Length3.8
Weight0.23 PG
Part CategoryReplacement Parts
Bypass Flange Diameter35.05 mm
Jiggle Pin Check Valve Quantity1
Gasket Or Seal IncludedNo
ColorSilver
ElectricNo
Sealing Flange Outside Diameter60.71 mm
MaterialSteel
Flange Thickness1.27 mm
Bypass Flange Length40.13 mm
Includes Jiggle Pin Check ValveYes
Depth39.12 mm
Jiggle Pin Weep HoleYes
Thermostat MaterialCopper/Stainless steel
Flow RateStandard-flow
Gasket Or Seal RequiredYes
Opening Temperature Rating170 degrees
Flange Height1.52 mm
Installation Tool IncludedNo
Part FitmentSemi Universal
Height Between Flanges40.13 mm
Grade TypeOEM
Package Qty1
Package TypeEA
