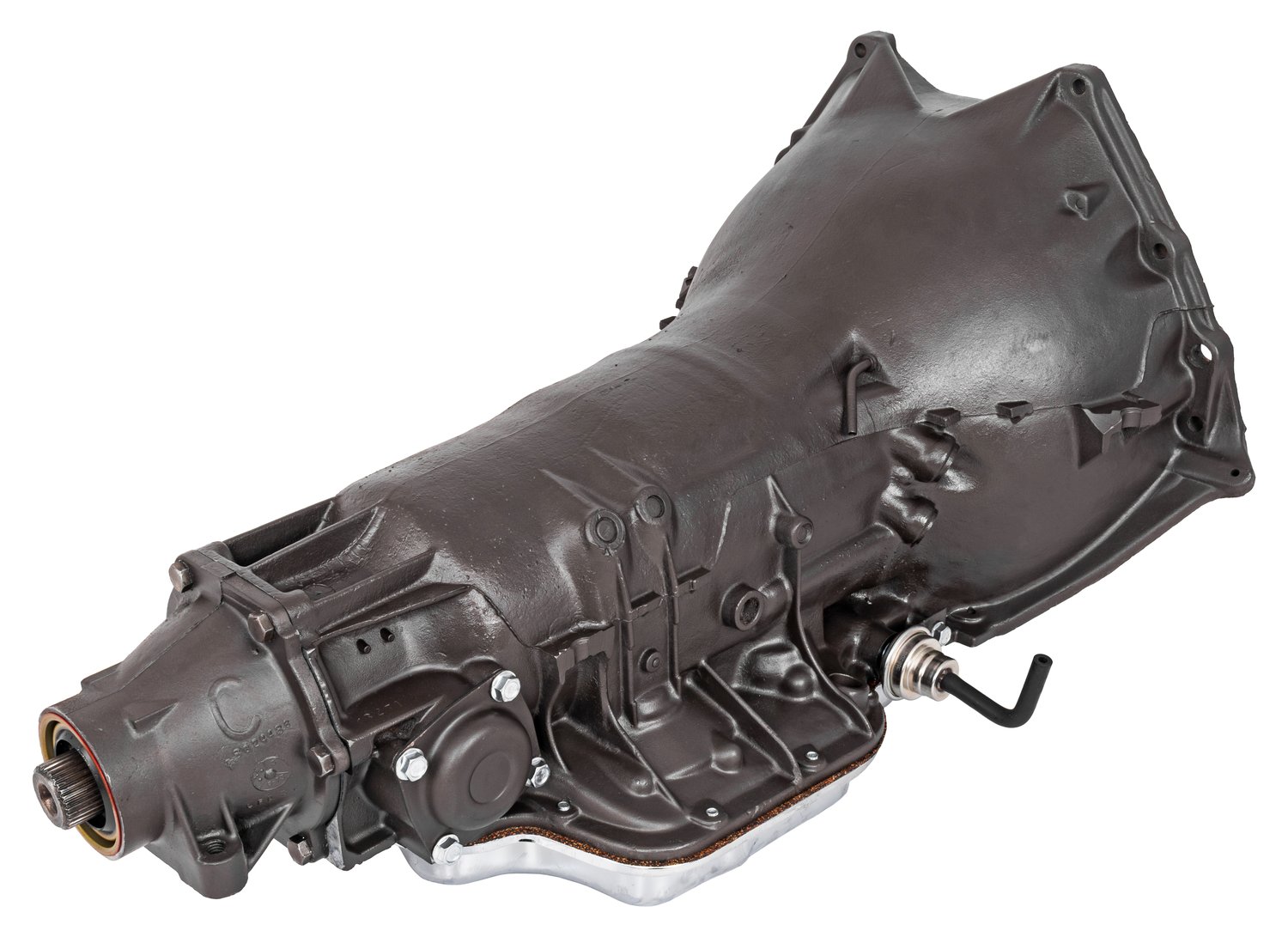

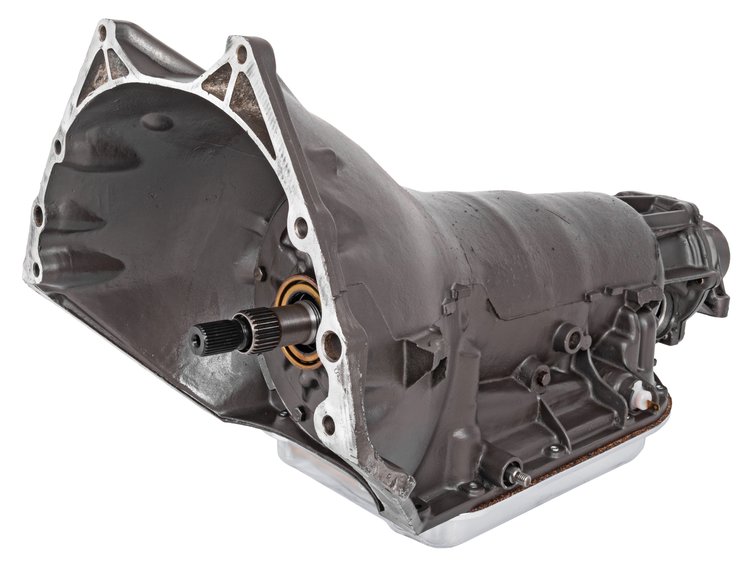

The JEGS 555-60322 GM TH400 automatic transmission is a remanufactured three-speed unit built to OE specifications for select 1964-1990 Buick, Oldsmobile, and Pontiac vehicles that use the BOP bellhousing bolt pattern. It is assembled with all new frictions and steels for increased clutch capacity, new front and rear bands and sprags, and a rebuilt valve body with a shift kit installed for firmer, quicker shifts, then run on a dynamometer to check for leaks and evaluate shift quality. Rated to handle up to 450 horsepower, it is a direct replacement for a worn or failed original TH400 and the correct pattern for Buick, Oldsmobile, and Pontiac engine swaps that need a TH400 behind a BOP block.

JEGS 555-60322 GM TH400 Automatic Transmission Features:

• Fits select 1964-1990 Buick
• Fits select 1964-1990 Oldsmobile
• Fits select 1964-1990 Pontiac
• BOP (Buick, Oldsmobile, Pontiac) bellhousing bolt pattern
• Three forward gears with a 2.48 first gear ratio
• Automatic valve body with a forward shift pattern
• Handles up to 450 horsepower
• Rear wheel drive applications
• Remanufactured to OE specifications
• All new frictions and steels throughout with increased clutch capacities
• Complete overhaul kit with new seals, gaskets, and rings
• New front and rear bands
• New front and rear sprags
• Complete bushing kit and new washers
• New vacuum modulator
• New high flow brass filter
• Rebuilt front pump with new gears
• Rebuilt valve body with a shift kit installed
• New kickdown solenoid with case connector
• Chrome transmission pan with a drain plug
• OEM cast aluminum case with a painted finish
• 4.000 in. tailshaft length
• 30-spline turbo-style input shaft
• Slip-on yoke style output
• Fluid fill at the case
• Run on a dynamometer to check for leaks and evaluate shift quality and function

JEGS 555-60322 GM TH400 Automatic Transmission Notes:

• Designed to operate without a kickdown cable; the unit uses a kickdown solenoid with a case connector
• Shipped without the speedometer driven gear or its housing
• Works with a slip-style transmission yoke only
• Will not fit 4WD applications
• A torque converter and flexplate are not included and are sold separately
• A dipstick and transmission fluid are not included
• Not lockup compatible, and no trans-brake is included
• Not SFI approved
• If you have any problem installing this transmission, before returning it please call the JEGS technical support line. Our experts may be able to assist you with the proper installation.
