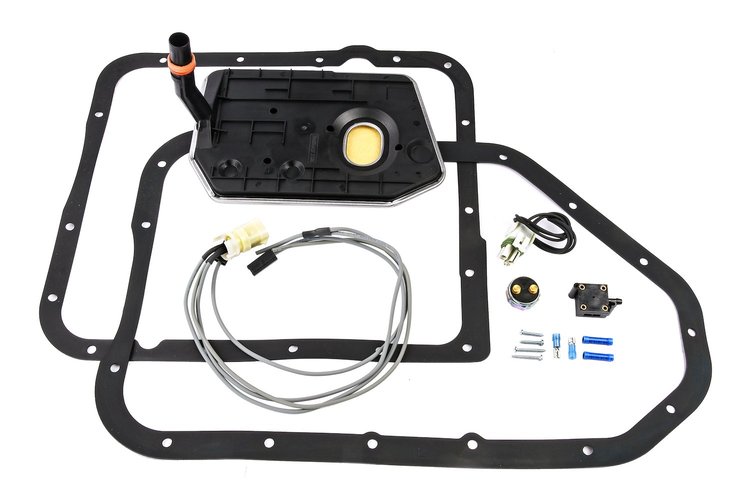

Wiring Lock-Up Kit for Pre-1993 700R4 and 200R4 Transmissions
InfoVehicle Info Needed
JEGSPART NUMBER: 555-60324

Wiring Lock-Up Kit for Pre-1993 700R4 and 200R4 Transmissions

$11999$131.99You Save$12.00
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Wiring Lock-Up Kit
  • Pre-1993 700R4 & 200R4 Transmissions
    Includes:
  • Vacuum Switch
  • Switch Assembly/Clutch Pressure
  • (2) Gasket/Filter Kits
  • Internal & External Wire Harness
  • (2) Wire Crimps & Spade Connectors
  • (4) Phillips Screws

    JEGS Wiring Lock-Up Kit for Pre-1993 700R4 & 200R4 Transmissions Includes:

    • (1) Vacuum Switch
    • (1) Switch Assembly/Clutch Pressure
    • (1) TH200-R4 Gasket/Filter Kit
    • (1) TH700-R4 Gasket/Filter Kit
    • (1) Internal Wire Harness
    • (1) External Wire Harness

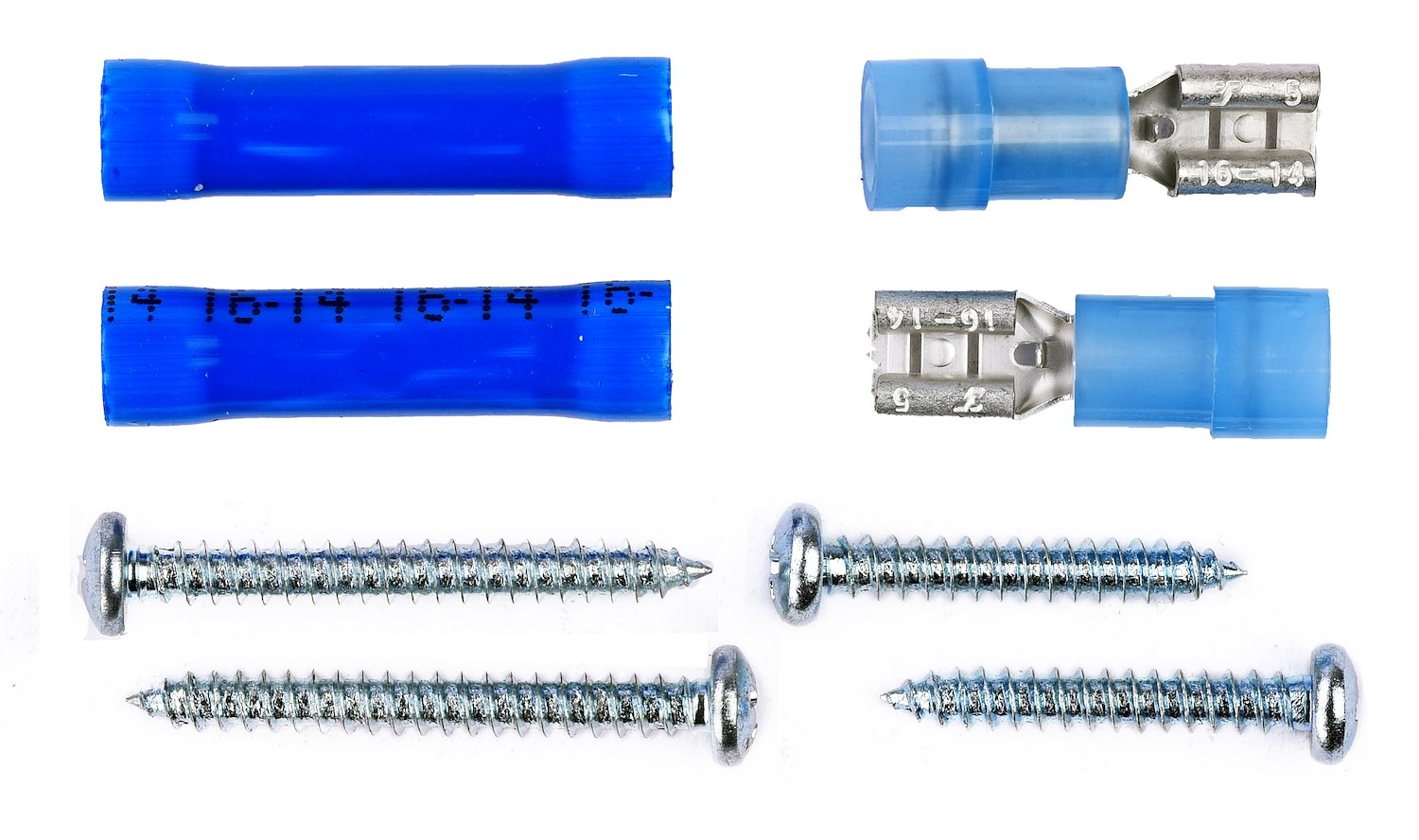

    • (2) 14-16 ga. Blue Butt Splice Wire Crimps
    • (2) 1/4 in. Female Spade Connectors
    • (2) #10 x 5/8 in. Sheet Metal Screws SEMS Head
    • (2) #4-24 x 3/4 in. Phillip Pan Head Screws

      • Easy Lock-Up For 700R4 & 200R4

      For Pre-1993 700R4 & 200R4 transmissions, JEGS Lock-Up Kit features an adjustable vacuum switch to fine tune the lock-up point on modified engines. The kit allows automatic vacuum based lock-up operation without factory ECM's or handheld controllers, and comes complete with a gasket and filter kit for both applications.

    Part TypeAutomatic Transmission Lock-Up Torque Converter Control
    Product LineJEGS Lock-Up Wiring Kit
    BrandJEGS
    Package Height4.88
    Package Width6.75
    Package Length12.5
    Weight2.2 PG
    Part CategoryReplacement Parts
    QuantitySold as a kit
    Part FitmentSemi Universal
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
