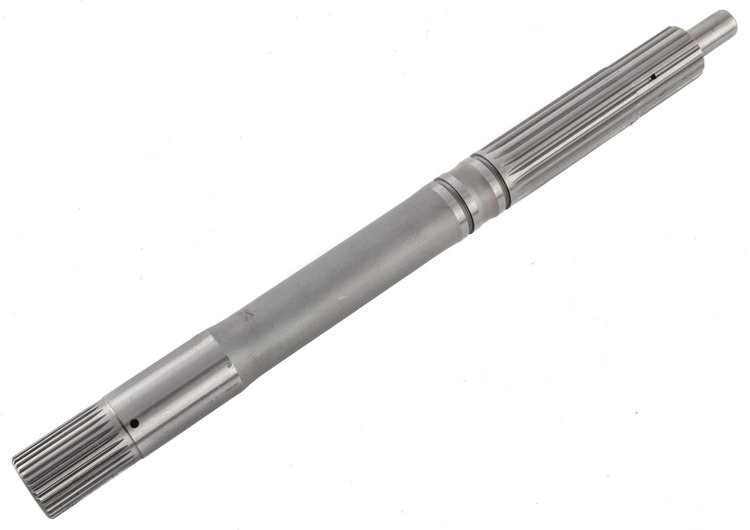

Automatic Transmission Input Shaft for GM Powerglide

Name: Automatic Transmission Input Shaft for GM Powerglide
Brand: JEGS
SKU: 555-603250
Price: 221.99 USD
Availability: InStock

^$221⁹⁹$239.69You Save$17.70

6 left in stock

Ships Today

Lowest Price Guarantee

Automatic Transmission Input Shafts

Automatic Transmission Input Shaft

GM Powerglide

Rated to 1200 HP

Turbo Converter Splines

300M Steel

Bushing Journal

Overall Length: 12 11/16 in.

Sold Individually

JEGS 555-603250 Transmission Input Shaft Features:

Fits chevy powerglide transmissions with 1.76 carrier
Rated to 1200 horsepower for high performance race applications
Turbo splines to allow th350 torque converters to work with the pg transmission
Made in usa with high quality components and assembly
Made from 4340m (also known as 300m) alloy steel, which has the ability to be hardened to a greater thickness compared to other steel blends, resulting in its use in aerospace and other areas where high-strength components are required

Works with Following Gear Sets:

1.58:1
1.69:1
1.76:1
1.80:1

30 Converter Splines
19 Carrier Splines
Hi-Flow Oil Passageway for Aftermarket Racing Converters equipped with a Severe Duty Bushing
300M Steel is high-strength vacuum-melted low alloy steel with high silicon composition and vanadium.

JEGS 555-603250 Transmission Input Shaft Notes:

This shaft has a bushing journal to use a bushing in the end of the transmission pump
JEGS 603250 was designed to allow the use of a GM Turbo-Hydramatic (TH) style converter with a GM Powerglide transmission.

Cost-Effective Transmission Repairs with JEGS

Discover a budget-friendly solution for transmission repairs with JEGS GM Powerglide, TH350, TH400, 700R4, 4L60-E & 4L80-E Automatic Transmission Parts. Our products are engineered for strength and durability, ensuring peace of mind with every shift. Experience the convenience of Transmission Pan Gaskets featuring a glass-filled nylon or metal carrier with reusable silicone molded on the top and bottom. These materials, commonly found in modern production engines, make future transmission service hassle-free, eliminating the need to scrape off and replace the old gasket each time you drop the pan. Cleanup is a breeze with simple soap and water. Our Heavy-Duty 4340M alloy steel Input & Output Shafts provide optimal performance. Also known as 300M, this alloy can be hardened to a greater thickness compared to other steel blends, making it ideal for aerospace and other high-strength gear, axle, and spindle applications. JEGS offers a variety of shaft options to suit different transmissions.

Part TypeAutomatic Transmission Input Shaft

Product LineJEGS GM Powerglide, TH350, TH400 & 700R4, 4L60-E, 4L80-E Automatic Transmission Parts

BrandJEGS

Package Height1.7

Package Width1.7

Package Length12.8

Weight2.4 PG

Part CategoryReplacement Parts

Input Spline Quantity30

Input Shaft Material300M

Package Qty1

Package TypeEA
