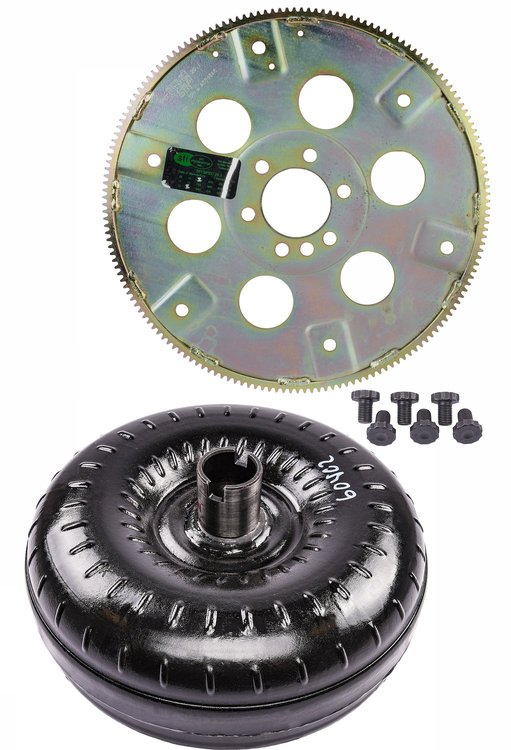

Torque Converter Kit for GM TH350/TH400 [2000-2300 RPM Stall Speed]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-60402K

Torque Converter Kit for GM TH350/TH400 [2000-2300 RPM Stall Speed]

$38927
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

GM TH350/TH400
Torque Converter and Flexplate Kit
  • GM TH350/TH400
  • Small & Big Block Chevy
  • 12 in. Diameter
  • Stall Speed: 2000-2300 RPM
  • Includes:
    • Torque Converter
    • Flexplate
    • High-Performance Series Flexplate Bolts

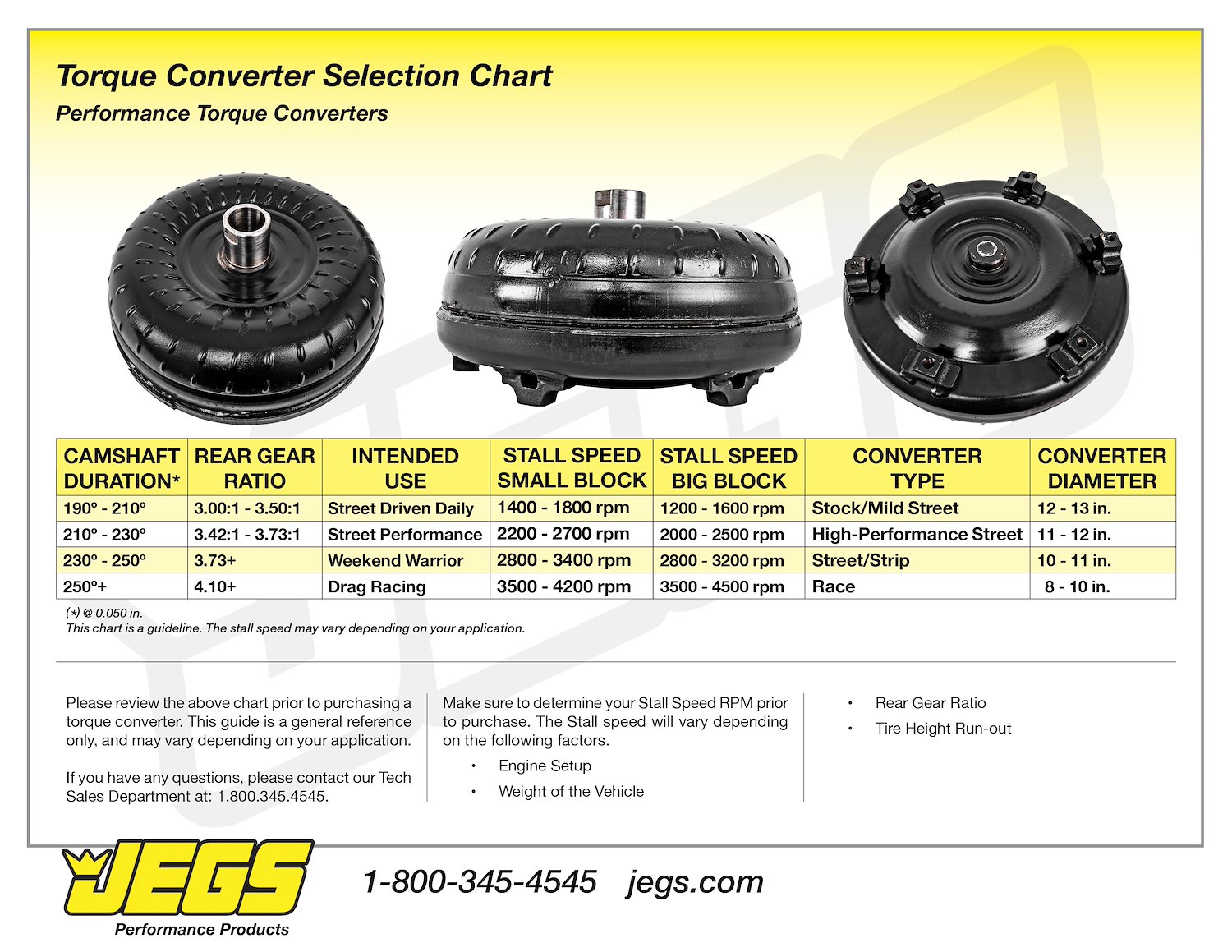

      See Torque Converter Selection Chart Above to Help with Choosing the Correct Converter

      JEGS 555-60402K Kit Includes:

      Please Note:

      • Converter diameter may vary based on Core Availability
      • Does not fit transmissions that require lockup or clutch converters
      • Small (10.75 in. Diameter bolt circle) flexplate or dual pattern flexplate required
      • For Big Block applications, use JEGS XHD Converters
      • Requires 3/8 in.-16 bolt

      Fluid Capacity Chart

    • Part TypeAutomatic Transmission Torque Converter
    BrandJEGS
    Part CategoryPerformance Parts
    Ring Gear Tooth Quantity168-tooth
    Flexplate MaterialSteel
    Underhead Length0.68 in (17.3 mm)
    QuantitySold as a set of 6
    Fastener FinishBlack oxide
    Transmission Mfr. CodeTH350/TH400
    Fastener MaterialSteel
    Flash Stall Speed (Rpm)2300
    Fastener Head Style12-point
    Engine BalanceInternal
    Anti-Ballooning PlateNo
    Washers IncludedNo
    Crank Pilot Diameter1.703 in (43.256 mm)
    Converter Bolt Pattern10.75 in (273.05 mm)
    Trans Model700R4
    Horsepower500
    Fastener Yield Strength (Psi)180,000
    Part FitmentSemi Universal
    Safety RatingSFI 29.1
    LockupNo
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
