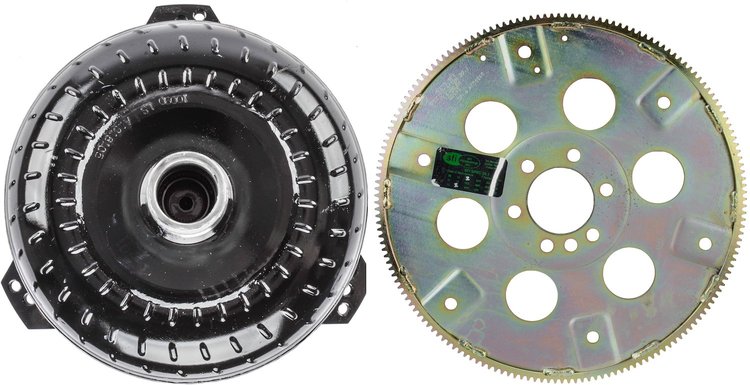

Torque Converter Kit for GM 4L80E/4L85E Mounted to a Non-LS Series Engine [2900-3200 RPM Stall Speed]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-60413K1

Torque Converter Kit for GM 4L80E/4L85E Mounted to a Non-LS Series Engine [2900-3200 RPM Stall Speed]

$91898
6 left in stock
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

GM 4L80E/4L85E
Torque Converter & Flexplate Kit
  • GM 4L80E/4L85E Lock-up
  • Fits Non-LS Engines
  • Stall Speed: 2900-3200 RPM
  • Includes:
    • Torque Converter
    • Flexplate

      See Torque Converter Selection Chart Above to Help with Choosing the Correct Converter

      Note: Kit designed for big or small block Chevy engines using late model LS 4L80E or 4L85E transmission.

      JEGS 555-60413K1 Kit Includes:

      • (1) JEGS Torque Converter for GM 4L80E or 4L85E transmission 555-60413
      • (1) JEGS SFI Flexplate for Small Block and Big Block Chevy  555-601071

      Please Note:

      • Converter diameter may vary based on Core Availability
      • 10.750 in./11.500 in./11.062 in. diameter triple bolt circle
      • For Big Block applications, use JEGS XHD Converters

      Fluid Capacity Chart

    • High-Performance Street/Strip Torque Converters for Cars and Trucks

    JEGS Street/Strip Performance Torque Converters are top-of-the-line products made with high-quality components and assembled using the latest converter technology. Designed to handle up to 500 horsepower, these JEGS Performance Torque Converters are OEM factory-sized, ensuring lower operating temperatures and optimal torque multiplication. They are available for Chrysler/Dodge, Ford, and GM transmissions in various stall ranges to meet your performance requirements. JEGS converters are not designed for nitrous, turbo, or blower applications. JEGS converters are not designed for nitrous, turbo, or blower applications.

    JEGS Also Offers These Optional Performance Torque Converters
    Part TypeAutomatic Transmission Torque Converter
    Product LineJEGS Street/Strip Performance Torque Converters
    BrandJEGS
    Part CategoryPerformance Parts
    Anti-Ballooning PlateNo
    Crank Pilot Diameter1.703 in (43.256 mm)
    Stall Speed (Rpm)2900-3200
    Converter Bolt Pattern10.750 in./11.500 in./11.062 in.
    Transmission Mfr. Code4L80E/4L85E
    Part FitmentSemi Universal
    LockupYes
    Flash Stall Speed (Rpm)3200
    Converter Input Spline35
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
