![Stock-Style Performance Torque Converter for GM 4L60E, 4L65E, 4L70E Transmissions [Stock Stall Range]](https://www.jegs.com/images/mini_750/500/555/555-60418.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-60418

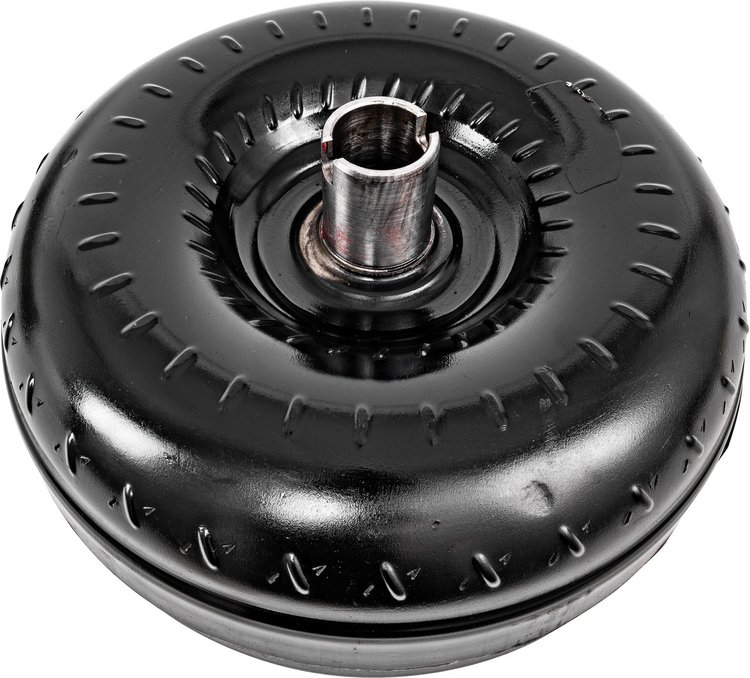

Stock-Style Performance Torque Converter for GM 4L60E, 4L65E, 4L70E Transmissions [Stock Stall Range]
$35899$390.09You Save$31.10
4 left in stock
Ships Today
Lowest Price GuaranteeGM 4L60E, 4L65E, 4L70E
Performance Torque ConverterFits GM 4L60E, 4L65E, 4L70E Transmissions Stall Range: Stock Dia.: 300mm Spline: 30 Bolt Circle: 11.063 in. Crank Pilot: 1.703 in. Lock Up: Yes Anti-Ballooning Plates: No Balanced: Yes

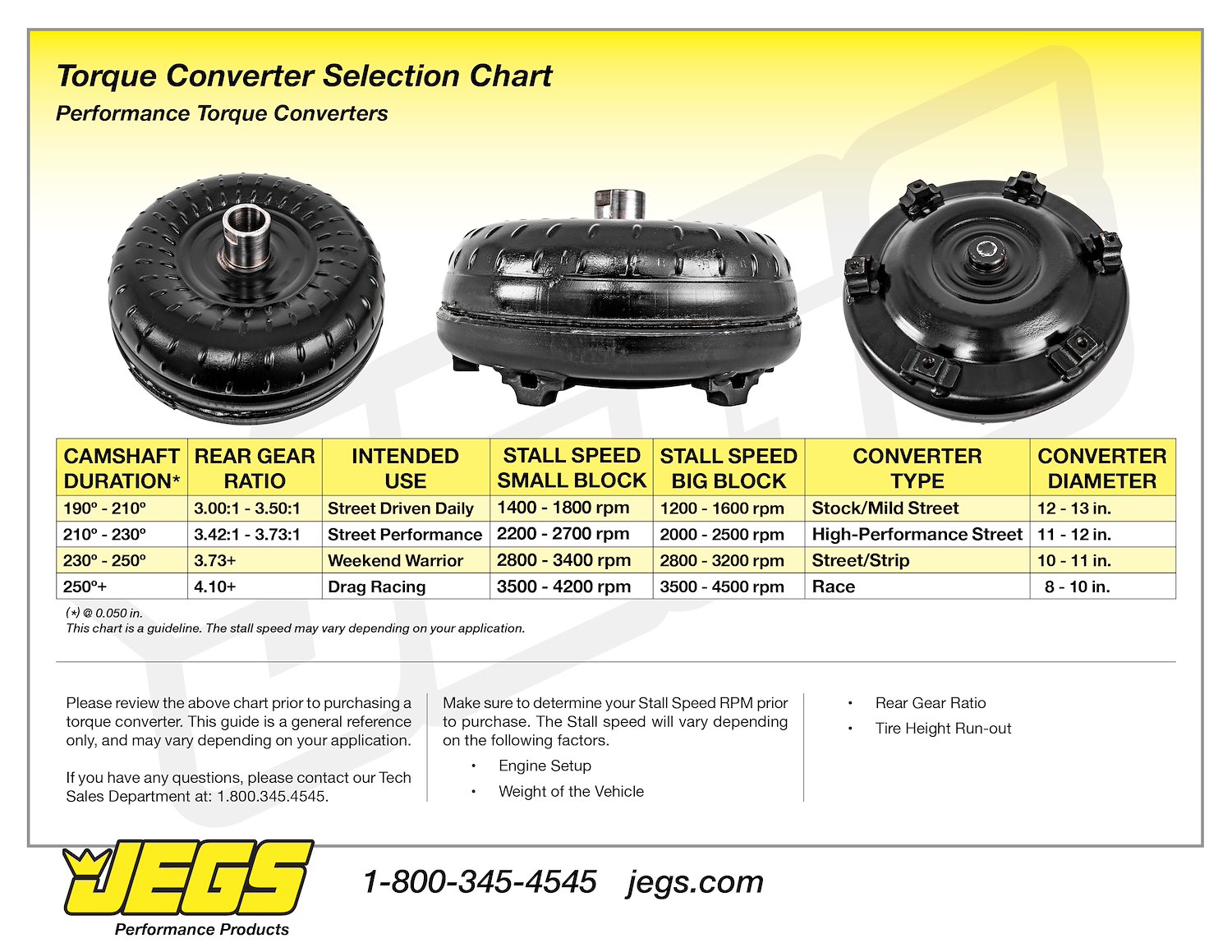

See Torque Converter Selection Chart Above to Help with Choosing the Correct Converter
JEGS 555-60418 Stock-Style Performance Torque Converter Features:
- Fits GM 4L60E, 4L65E, 4L70E Transmissions
- Stock Stall Speed
- 300mm Diameter for LS Type Engines
- Designed for the 2 Step 30-Spline Input Shaft
- Torrington Style Incased Bearings
- 4 Corner Tac Welded Fins or Furnace Brazed
- Hardened Chrome Moly Impeller Hub
- Modified Heavy Duty Stator
- Extreme Duty Lock Up
- 3 Welded Nuts with M10-1.5 Threads for Attaching Flexplate to Torque Converter
- Leak & Pressure Tested
- Digitally Balanced
JEGS 555-60418 Stock-Style Performance Torque Converter Notes:
- For use with Grade-8 hardware only
- Use Type F Transmission Fluid For Best Results
- Use Blue Loctite on Converter Bolts
- Additional Transmission Cooler is Recommended
Part TypeAutomatic Transmission Torque Converter
BrandJEGS
Package Height8.0
Package Width13.1
Package Length13.2
Weight45.05 PG
Part CategoryPerformance Parts
Anti-Ballooning PlateNo
Crank Pilot Diameter1.703 in (43.256 mm)
Converter Diameter300 mm (11.811 in)
Stall Speed (Rpm)Stock
Converter Bolt Pattern11.063 in (281 mm)
Input Spline Quantity30
Converter TypeStock-Style
Horsepower500
Transmission Mfr. Code4L60E, 4L65E, 4L70E
Part FitmentSemi Universal
LockupYes
Flash Stall Speed (Rpm)No Stall Added
Package Qty1
Package TypeEA
