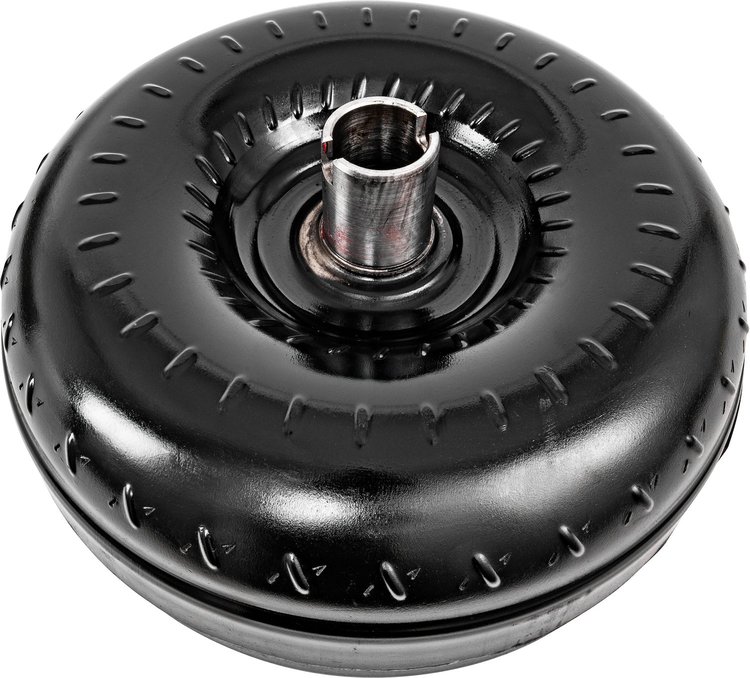

Torque Converter for GM 4L60E, 4L65E, 4L70E Transmissions [2,800-3,200 RPM Stall Speed]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-60426

Torque Converter for GM 4L60E, 4L65E, 4L70E Transmissions [2,800-3,200 RPM Stall Speed]

$34299$524.29You Save$181.30
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Torque Converter Bolts For GM TH200, 700R4, 4L60, 4L60E & 4L80E, M10-1.5 x 15 [Set of 3]

JEGS

Torque Converter Bolts For GM TH200, 700R4, 4L60, 4L60E & 4L80E, M10-1.5 x 15 [Set of 3]

Part Number : 555-82514
$899$9.99
You Save$1.00
Flywheel and Flexplate Turning Tool

JEGS

Flywheel and Flexplate Turning Tool

Part Number : 555-60129
$1499$16.99
You Save$2.00
Quick Shift Automatic Transmission Fluid [1-gallon]

JEGS

Quick Shift Automatic Transmission Fluid [1-gallon]

Part Number : 555-28071
$4274$51.99
You Save$9.25
15 Qt. Plastic Drain Pan 95-1371

DORMAN PRODUCTS

15 Qt. Plastic Drain Pan 95-1371

Part Number : 326-95-1371
$2099

GM 4L60E/4L65E/4L75E
Torque Converter
  • GM 4L60E, 4L65E, 4L70E Trans.
  • Stall Speed: 2,800-3,200 RPM
  • Dia.: 300mm for GM LS Engines
  • Spline: 30
  • Bolt Circle: 11.063 in.
  • Crank Pilot: 1.703 in.
  • Lock Up: Yes
  • Anti-Ballooning Plates: No
  • Balanced: Yes

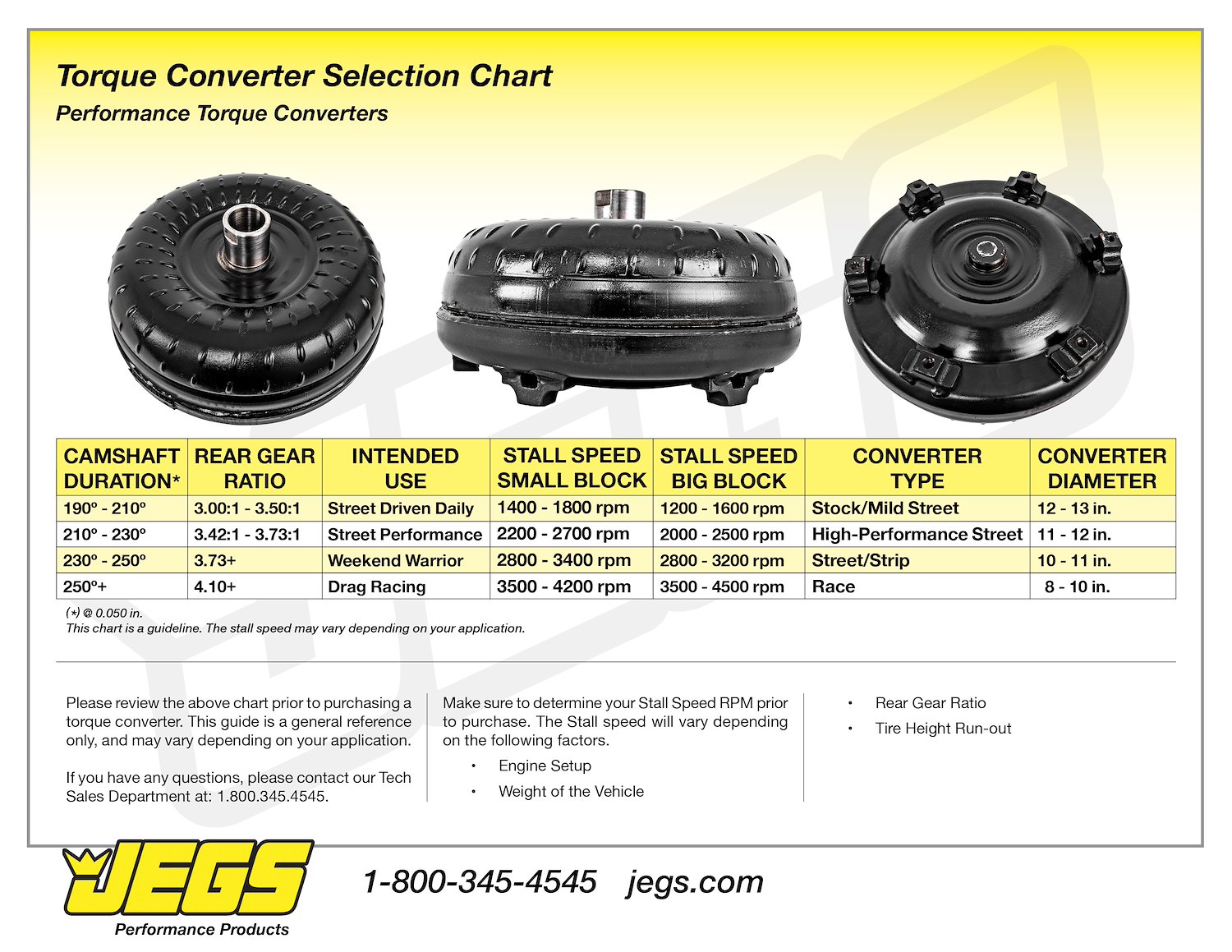

    See Torque Converter Selection Chart Above to Help with Choosing the Correct Converter

    JEGS 555-60426 Torque Converter Features:

    • Fits GM 4L60E, 4L65E, 4L70E Transmissions
    • 300mm for GM LS-type Engines
    • For the 2-step input shaft – 1998 & Up
    • 2,800-3,200 RPM Stall Speed
    • Great Driving Characteristics
    • Hardened Chrome Moley Impeller Hub
    • Torrington Style Incased Bearings
    • Modified Heavy-Duty Stator
    • Extreme Duty Lock Up
    • NO – Anti-Balloon Plate
    • Four Corner Tac Welded Fins or Furnace-Brazed
    • 3 Welded Nuts with M10-1.5 Threads for Attaching Bolts to Torque Converter
    • Leak and Pressure Tested
    • Digitally Balanced

    JEGS 555-60426 Torque Converter Notes:

    • All Stall RPMs will vary depending on the Engine Set-Up VS the Weight of the Vehicle VS the Gear Ratio, and the Tire Height Run Out
    • For use with Grade-8 hardware only
    • Use Blue Loctite on Torque Converter Bolts
    • Use Type F transmission Fluid for Best Results
    • Additional Transmission Cooler is Recommended
    • Converter diameter may vary based on Core Availability
    • Does not fit C5 Corvette applications
    • For Big Block applications, use JEGS XHD Converters

    Fluid Capacity Chart

    • High-Performance Street/Strip Torque Converters for Cars and Trucks

    JEGS Street/Strip Performance Torque Converters are top-of-the-line products made with high-quality components and assembled using the latest converter technology. Designed to handle up to 500 horsepower, these JEGS Performance Torque Converters are OEM factory-sized, ensuring lower operating temperatures and optimal torque multiplication. They are available for Chrysler/Dodge, Ford, and GM transmissions in various stall ranges to meet your performance requirements. JEGS converters are not designed for nitrous, turbo, or blower applications. JEGS converters are not designed for nitrous, turbo, or blower applications.

    JEGS Also Offers These Optional Performance Torque Converters
    Part TypeAutomatic Transmission Torque Converter
    Product LineJEGS Street/Strip Performance Torque Converters
    BrandJEGS
    Package Height7.9
    Package Width13.1
    Package Length13.2
    Weight40.65 PG
    Part CategoryPerformance Parts
    Anti-Ballooning PlateNo
    Crank Pilot Diameter1.703 in (43.256 mm)
    Converter Diameter300mm
    Stall Speed (Rpm)2,800-3,200 RPM
    Converter Bolt Pattern11.063 in (281 mm)
    Input Spline Quantity30
    Converter TypeStreet Performance
    Horsepower500
    Transmission Mfr. Code4L60E, 4L65E, 4L70E
    Part FitmentSemi Universal
    LockupYes
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
