![Stock-Style Performance Torque Converter for GM 4L80E, 4L85E Transmissions [Stock Stall Range]](https://www.jegs.com/images/mini_750/500/555/555-60427.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-60427

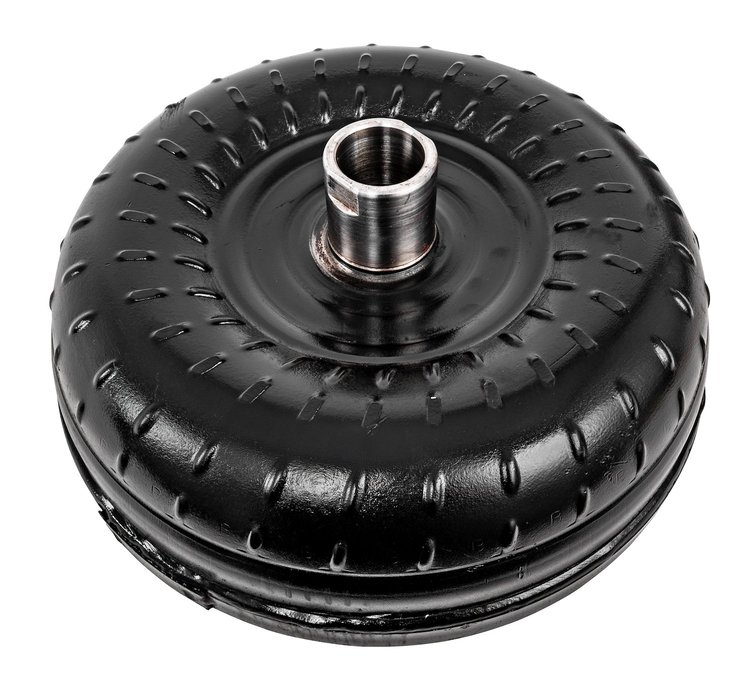

Stock-Style Performance Torque Converter for GM 4L80E, 4L85E Transmissions [Stock Stall Range]
$37099$402.59You Save$31.60
5 left in stock
Ships Tomorrow
Lowest Price GuaranteeGM 4L80E, 4L85E
Performance Torque Converter Fits GM 4L80E, 4L85E Trans. for GM LS Eng. Stall Range: Stock Dia.: 13.750 in. Spline: 35 Bolt Circle: 11.675 in. Crank Pilot: 1.703 in. Lock Up: Yes Anti-Ballooning Plates: No Balanced: Yes

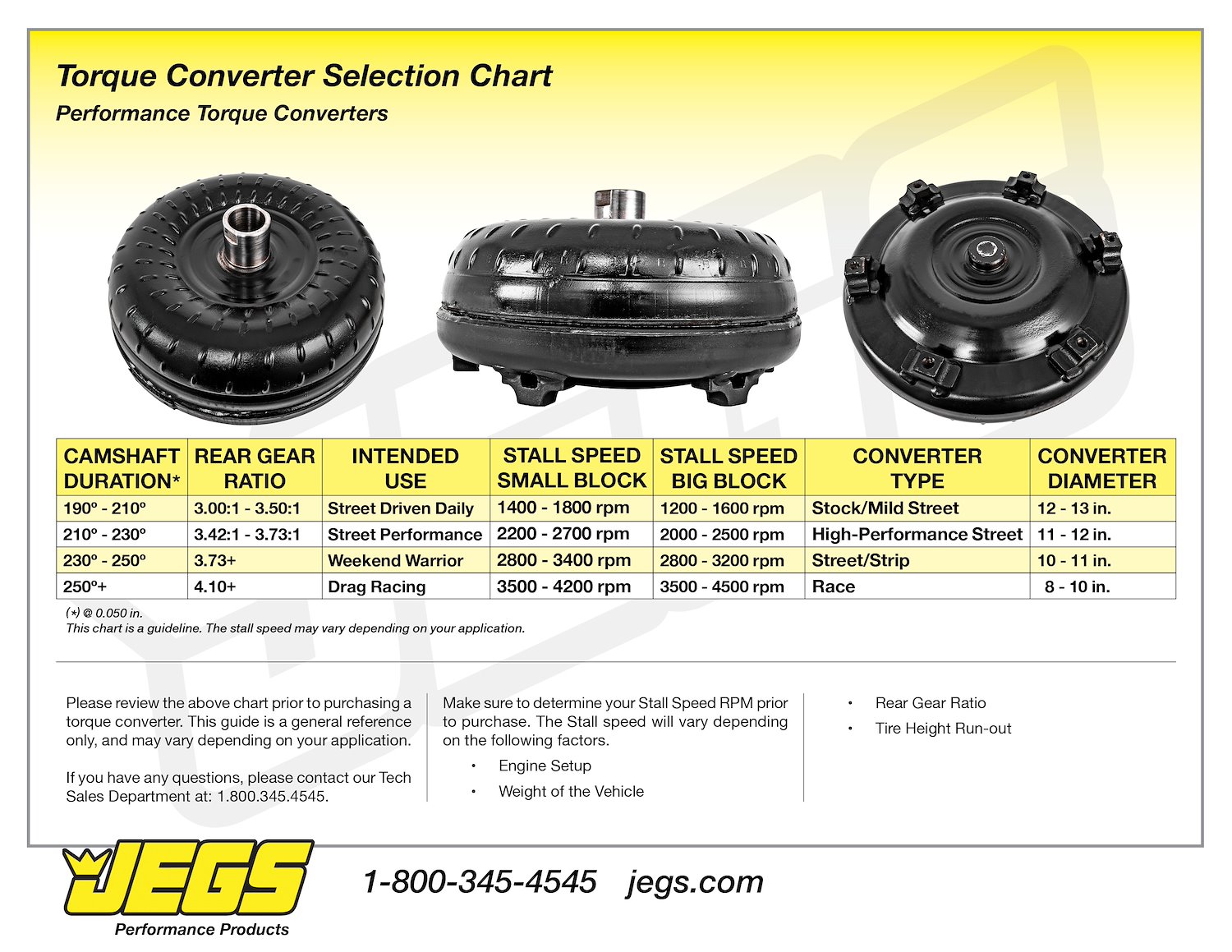

See Torque Converter Selection Chart Above to Help with Choosing the Correct Converter
JEGS 555-60427 Stock-Style Performance Torque Converter Features:
- Fits GM 4L80E, 4L85E Transmissions for LS Engines
- Stock Stall Speed
- 13.750 in. Diameter for LS Type Engines
- Designed for the 2 Step 35-Spline Input Shaft
- Torrington Style Incased Bearings
- Extreme Temperature Heavy-Duty O-ring
- 4 Corner Tac Welded Fins or Furnace Brazed
- Hardened Chrome Moly Impeller Hub
- Modified Extreme-Duty Stator
- Oversized Extreme Duty Single Disk Lock Up
- 6 Welded Nuts with M10-1.5 Threads for Attaching Flexplate to Torque Converter
- Leak & Pressure Tested
- Digitally Balanced
JEGS 555-60427 Stock-Style Performance Torque Converter Notes:
- For use with Grade-8 hardware only
- Use Type F Transmission Fluid For Best Results
- Use Blue Loctite on Converter Bolts
- Additional Transmission Cooler is Recommended
Performance Torque Converters for Your Daily Driver
JEGS Stock-Style Performance Torque Converters are designed to handle as much as 500 horsepower. Made with high-quality parts and assembled using the latest converter technology. These Performance Converters are OEM factory-sized to maintain a lower level of operating temperatures and for the best torque multiplication. JEGS stock-style converters are ideal for street use on just over-stock applications, heavy vehicles, and trucks. They are the perfect replacement for a worn-out factory torque converter.
JEGS Also Offers These Optional Performance Torque ConvertersPart TypeAutomatic Transmission Torque Converter
Product LineJEGS Stock-Style Performance Replacement Torque Converters
BrandJEGS
Package Height7.8
Package Width13.4
Package Length13.4
Weight59.2 PG
Part CategoryPerformance Parts
Anti-Ballooning PlateNo
Crank Pilot Diameter1.703 in (43.256 mm)
Converter Diameter13.750 in (349.25 mm)
Stall Speed (Rpm)Stock
Converter Bolt Pattern11.675 in (296.545 mm)
Input Spline Quantity35
Converter TypeStock-Style
Horsepower500
Transmission Mfr. Code4L80E, 4L85E
Part FitmentSemi Universal
LockupYes
Flash Stall Speed (Rpm)No Stall Added
Package Qty1
Package TypeEA
