![XHD Street/Strip Torque Converter for Ford C4 [2800-3200 RPM Stall]](https://www.jegs.com/images/mini_750/500/555/555-60460.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-60460

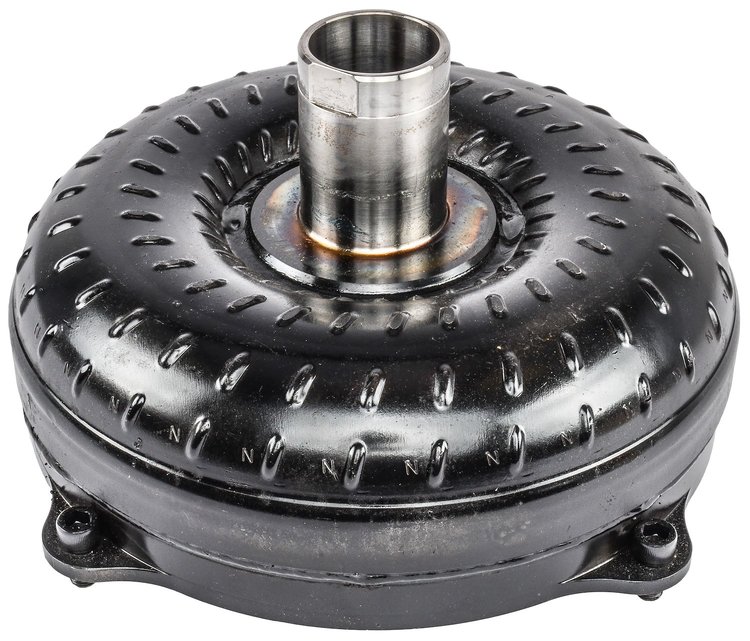

XHD Street/Strip Torque Converter for Ford C4 [2800-3200 RPM Stall]
$59599$643.69You Save$47.70
Ships on 09/22/2026
Lowest Price GuaranteeFord C4
XHD Street/Strip Torque ConverterFits Ford C4 Transmissions 2800-3200 RPM Stall Speed 10 in. Diameter, 26-Spline Input 10.500 in. Bolt Circle, 1.375 in. Crank Pilot Requires 3/8-16 Grade 8 Bolts Rated to 800 HP
JEGS 555-60460 Ford C4 XHD Street/Strip Torque Converter Features:
- Fits Ford C4 Transmissions
- 2800-3200 RPM Stall Speed
- 10 in. Diameter
- 26-Spline Input Shaft
- 10.500 in. Flexplate Bolt Circle
- 1.375 in. Crank Pilot
- Hardened Chrome Moly Impeller Hub
- Torrington Style Encased Bearings
- Modified Extreme Duty Stator
- No Anti-Ballooning Plate
- Four-Corner Tac-Welded or Furnace-Brazed Fins
- 3 Welded Pads with 3/8-16 Threads for Attaching the Converter Bolts
- Leak and Pressure Tested
- Digitally Balanced
- Rated for Use up to 800 HP
JEGS 555-60460 Ford C4 XHD Street/Strip Torque Converter Notes:
- All Stall RPMs Will Vary Depending on Engine Set-Up, Vehicle Weight, Gear Ratio, and Tire Height
- Fits Case-Fill and Pan-Fill C4 Units
- For Use with Grade-8 Hardware Only
- Use Blue Loctite on the Torque Converter Bolts
- Use Type F Transmission Fluid for Best Results
- An Additional Transmission Cooler is Recommended
Part TypeAutomatic Transmission Torque Converter
BrandJEGS
Package Height9.1
Package Width14.0
Package Length14.0
Weight27.75 PG
Anti-Ballooning PlateYes
Part CategoryPerformance Parts
Crank Pilot Diameter1.375 in (34.925 mm)
Converter Bolt Pattern10.5 in (266.7 mm)
Horsepower800
Transmission Mfr. CodeC4
MakeFord
LockupNo
Part FitmentSemi Universal
Flash Stall Speed (Rpm)3200
Diameter10 in (254 mm)
Package Qty1
Package TypeEA
