Hydraulic Brake Lock

Name: Hydraulic Brake Lock
Brand: JEGS
SKU: 555-63028
Price: 31.18 USD
Availability: InStock

^$31¹⁸$40.99You Save$9.81

More than 10 available

Ships Today

Lowest Price Guarantee

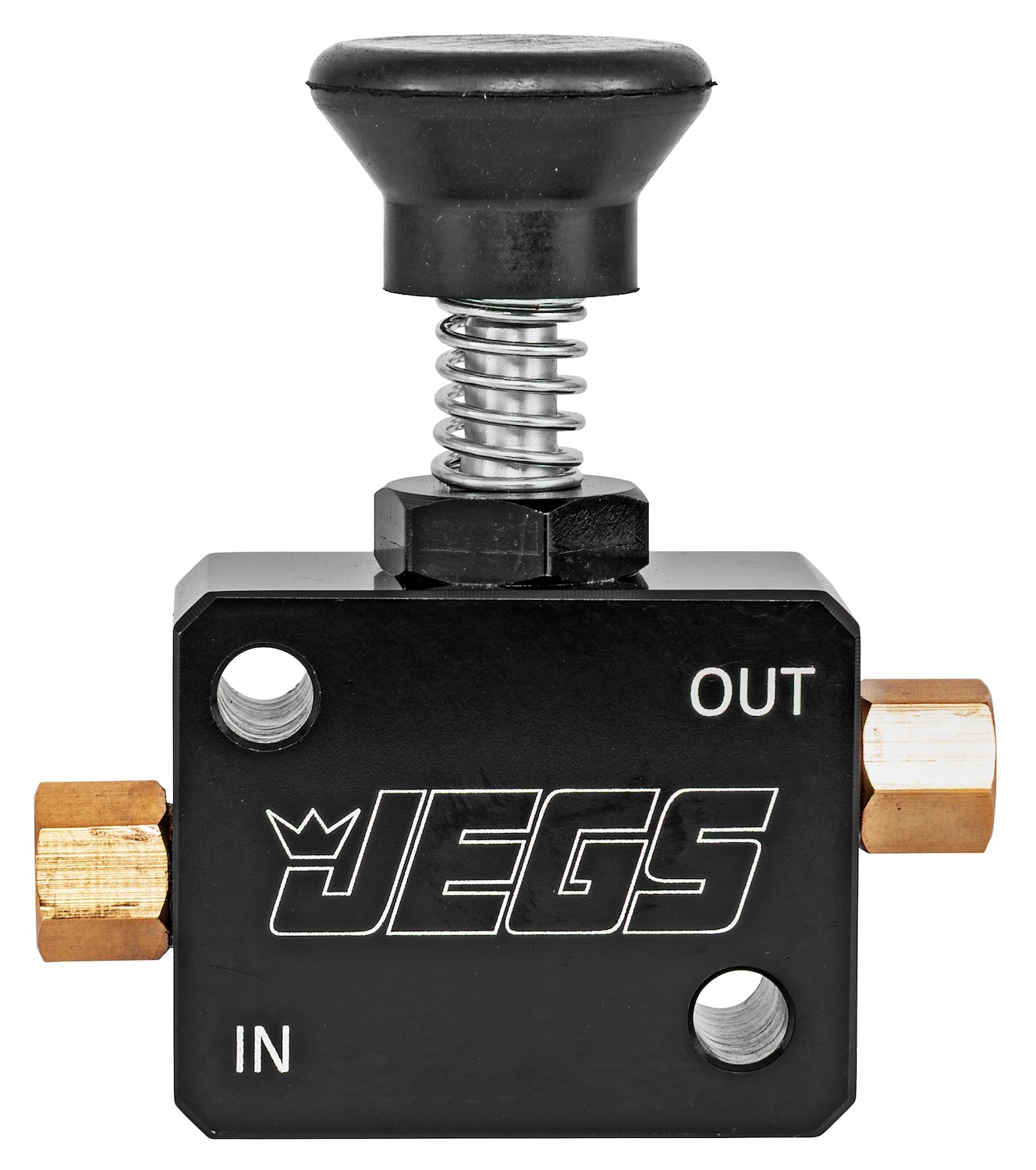

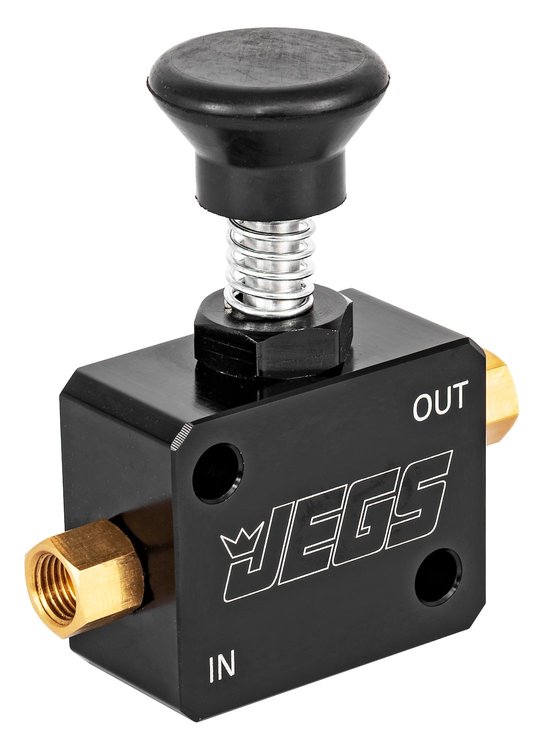

Hydraulic Brake Lock

Billet Aluminum Body

Black Anodized Finish

Rubber Handle

Includes:

Adapter Fittings for 3/16 in. Brake Line

Hydraulic Brake Lock Features:
- Uses hydraulic line pressure to hold brakes for temporary parking or staging applications
- The Unit must be mounted in a location that is easy to reach from the driver’s seat while pressing on the brake pedal, so that you can set the lock
- Most commonly used on the rear brakes
- Made from black anodized billet aluminum
- simple installation
- Includes two brass adapter fittings for use with standard 3/16 in. inverted flare style brake line
Hydraulic Brake Lock Operation:
- To Set the Lock: Press on the brake pedal, push the knob down, and release the brake pedal
- To Release the Lock: Press on the brake pedal, and it will release automatically
Hydraulic Brake Lock Notes:
- No special linkage required
- Not recommended for use with silicone brake fluid
- Not recommended for use as an emergency brake

Uses hydraulic line pressure to temporarily hold brakes. Unit must be mounted in a location that is easy to reach from the driver's seat while pressing on the brake pedal so that you can set the lock. The most common use is on the rear brakes.

No special linkage required. Not recommended for use with silicone brake fluid, or as an emergency brake. Includes two brass adapter fittings for use with standard 3/16" inverted flare style brake line.

Operation:
To Set Lock - Press on the brake pedal, push the knob down & release brake pedal.
To Release Lock - Step on the brake pedal slightly harder than before and it will release automatically.

Part TypeLine Lock

Product LineJEGS Hydraulic Brake Lock

BrandJEGS

Package Height0.9

Package Width3.6

Package Length3.6

Weight0.4 PG

Part CategoryPerformance Parts

Part FitmentUniversal

Package Qty1

Package TypeEA
