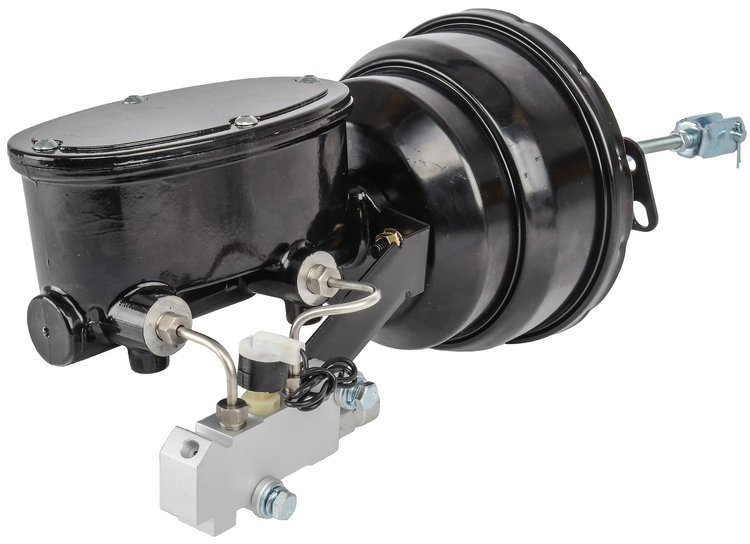

Power Brake Booster Conversion Kit 1 1/8 in. Bore [Disc/Disc]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-631025

Power Brake Booster Conversion Kit 1 1/8 in. Bore [Disc/Disc]

$38999$428.99You Save$39.00
More than 10 available
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Heavy-Duty Nitrile Gloves [7 mils Thick, Large]

JEGS

Heavy-Duty Nitrile Gloves [7 mils Thick, Large]

Part Number : 555-1124
$1799$19.99
You Save$2.00
Heavy-Duty Nitrile Gloves [7 mils Thick, X-Large]

JEGS

Heavy-Duty Nitrile Gloves [7 mils Thick, X-Large]

Part Number : 555-1125
$1999$21.99
You Save$2.00
Zinc Brake Line Coil Kit [3/16 in. x 25 ft.]

JEGS

Zinc Brake Line Coil Kit [3/16 in. x 25 ft.]

Part Number : 555-63030
$3699$40.99
You Save$4.00
Fender Cover with Pocket [23 in. W x 31 1/2 in. L]

JEGS

Fender Cover with Pocket [23 in. W x 31 1/2 in. L]

Part Number : 555-65010
$839$16.99
You Save$8.60

Universal
Power Brake Booster Conversion kit
  • GM
  • Disc/Disc
  • 1 1/8 in. Bore Diameter Aluminum Dual Reservoir Master Cylinder w/Oval Flat Top Cover
  • 8 in. Dual Diaphragm Power Booster
  • Black Powdercoated Finish

    This JEGS 631025 Power Brake Booster and Master Cylinder Conversion Kit is a great add-on when converting your car to dual disc brakes. The Dual Diaphragm Booster along with the Oval Willwood Style Dual Reservoir Master Cylinder will help to give you that extra stopping power. The beautiful Black Powder Coating will enhance the look of your engine compartment with Style.

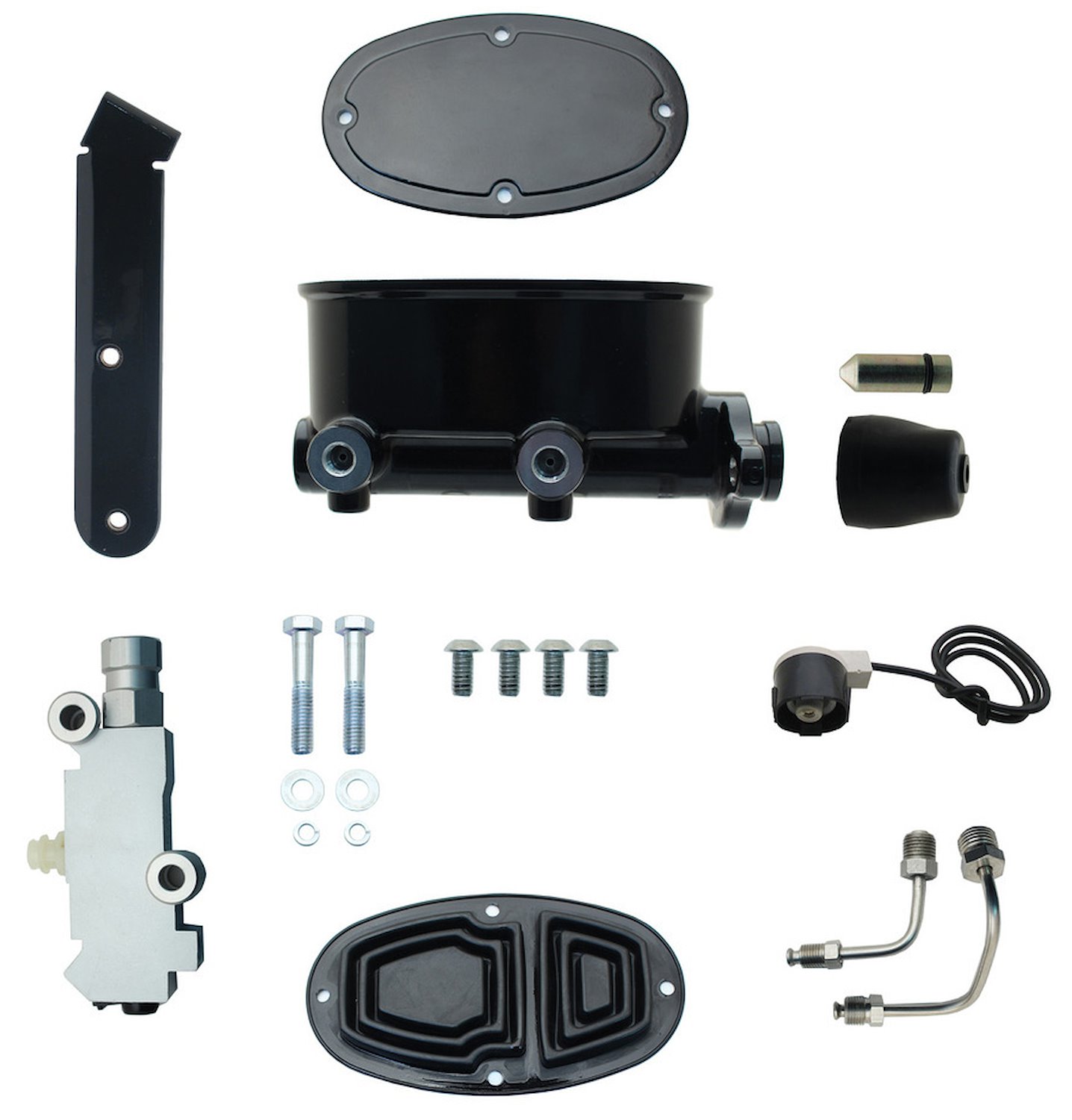

    JEGS 555-631025 Power Brake Booster Conversion Kit Includes:

    • (1) Black Powder Coated 8 in. Dual Diaphragm Power Brake Booster
    • (1) Black Powder Coated Aluminum Flat Top Oval Willwood Style Dual Reservoir Master Cylinder with 1 1/8 in. Bore
    • (1) Black Powder Coated Booster to Firewall Mounting Brackets
    • (1) Pedal Rod Extension and Clevis
    • (1) Power Booster Vacuum Hose Connector
    • (1) Disc/ Disc Left Mount Proportioning Valve Kit with (2) 3/8 in.-24 Front Brake line connections, (1) 9/16 in.-18 Rear Brake Line Connection
    • (1) Black Powder Coated Proportioning Valve Mounting Bracket and Mounting Bolts
    • (2) Stainless Steel Master Cylinder to Proportioning Valve Brake Lines
    • (1) Brake Light Warning Switch with Push on Connector and Wire

    Note:

    This master cylinder features a small equalization opening in the reservoir divider as part of its intended design. The opening allows both reservoir chambers to be filled from one side and helps the brake fluid level equalize when the reservoir is adequately filled. Because the opening is positioned above the bottom of the divider, each chamber can still retain a separate supply of brake fluid if the fluid level drops due to a loss in one hydraulic circuit.

    • Improve Your Stopping Distance with a Power Brake Conversion Kit

      JEGS power brake conversion kits provide better stopping distance to increase vehicle safety by transforming your manual brakes into an improved power-assisted system. All power brake conversion kits include a master cylinder, power brake booster, mounting brackets, and other necessary components for easy installation. We offer several style options to meet your brake improvement needs.

    Part TypeBrake Master Cylinder and Booster Assembly
    Product LineJEGS Power Brake Booster Conversion Kits
    BrandJEGS
    Package Height14.0
    Package Width15.4
    Package Length15.5
    Weight17.2 PG
    Part CategoryReplacement Parts
    Master Cylinder Stroke1 in (25.4 mm)
    Master Cylinder FinishBlack Powder Coat
    QuantitySold as an Assembly
    Mounting Hardware IncludedYes
    Reservoir MaterialAluminum
    Part FitmentDirect Fit
    Reservoir IncludedYes
    Vendor Part NumberGM-411
    Package Qty1
    Package TypeEA
