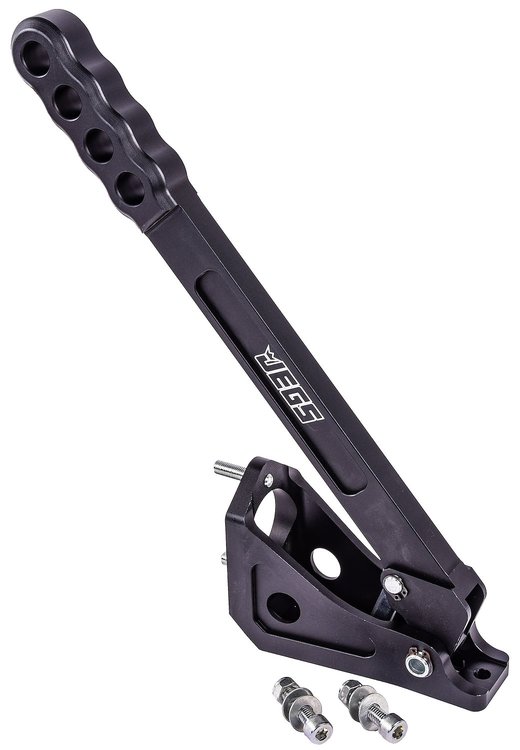

JEGS 631085 Vertical Handbrake Lever is the ultimate high-leverage component that assists in applying brake pressure to your drift car, drag race car, rally car. The master cylinder is not included, we recommend JEGS 555-631220 or JEGS 555-631222. The two included master cylinder mounting studs are 8mm -1 x 3/4 in. L.

Features:

• Mounting hardware included
  • (2) 8mm -1.25 x 1.178 in. L Allen head bolts (uses a 6 mm Allen key)
  • (2) 8mm -1.25 lock nuts
  • (4) 8 mm flat washers
• Black anodized finish provides a long-lasting finish
• Floor/transmission tunnel mount
• Overall length: 15.300 in.
• Master cylinder mounting flange center to center: 2.250 in.
• (2) Master cylinder mounting stud thread: 8mm -1 x 3/4 in. L.
• Rod end thread: 5/16 in. -24 RH (right hand)

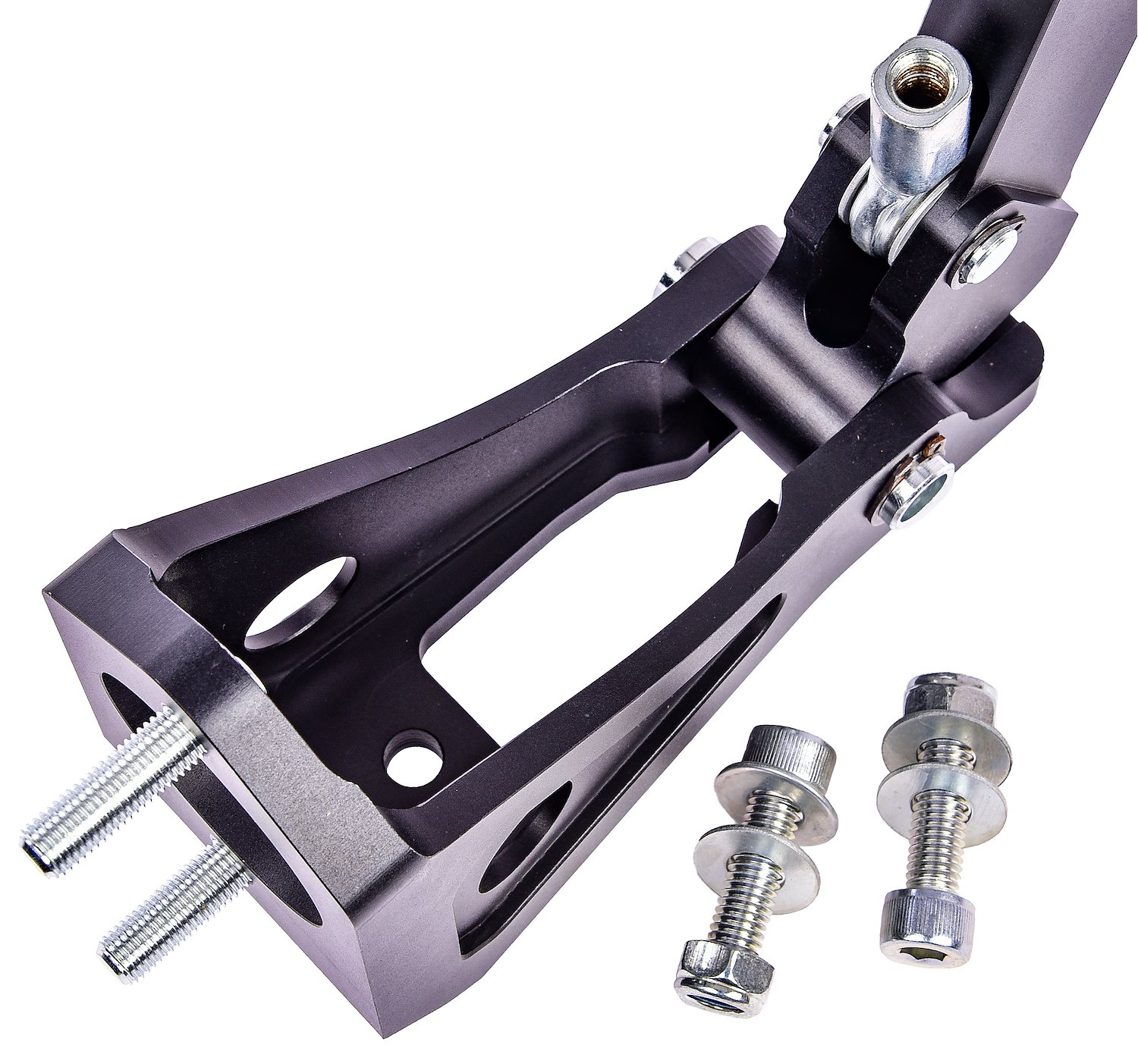

• Mounting bracket dimensions:
  • 5.500 in. L x 2.250 in. W (at mounting flange) x 3.500 in. (at mounting flange)

Setup Options:

• Stand-alone system with additional calipers and devoted reservoirs
• Pass-through system that will be used with the brake pedal master cylinder
