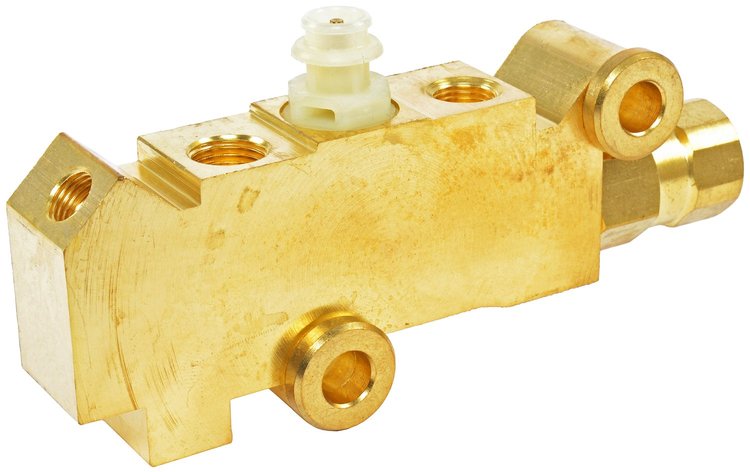

JEGS 555-631292 Brake Proportioning Valve

• Ensures proper brake bias from front to rear to prevent lock up of wheels
• Designed for 4-wheel disc brake conversions
• Specifications: (1) 7/16 in.-24 & (1) 1/2 in.-20 inlet ports, (2) 3/8 in.-24 ports to front brakes & (1) 9/16 in.-18 port to rear brakes
• Constructed from a one-piece brass body
• A must-have component to complete your custom brake system

FAQ

Does a 4-wheel disc brake system need a different proportioning valve?

• Yes, a dedicated 4-wheel disc brake proportioning valve is recommended for optimal performance.

How does a GM brake proportioning valve work?

• A GM brake proportioning valve regulates brake fluid pressure between the front and rear wheels, ensuring balanced braking.

Do you need a proportioning valve with all drum brakes?

• No, Vehicles with drum brakes on all four wheels don't always require a proportioning valve on the rear line. If you are experiencing uneven brake performance an adjustable proportioning valve such as JEGS 555-63020 is a good add on for maintaining proper brake balance between the front and rear wheels.

What is the proportioning valve on disc brakes?

• The JEGS proportioning valve for disc brakes adjusts brake fluid distribution, enhancing safety and control.
