Reproduction Proportioning Valve/Distribution Blocks

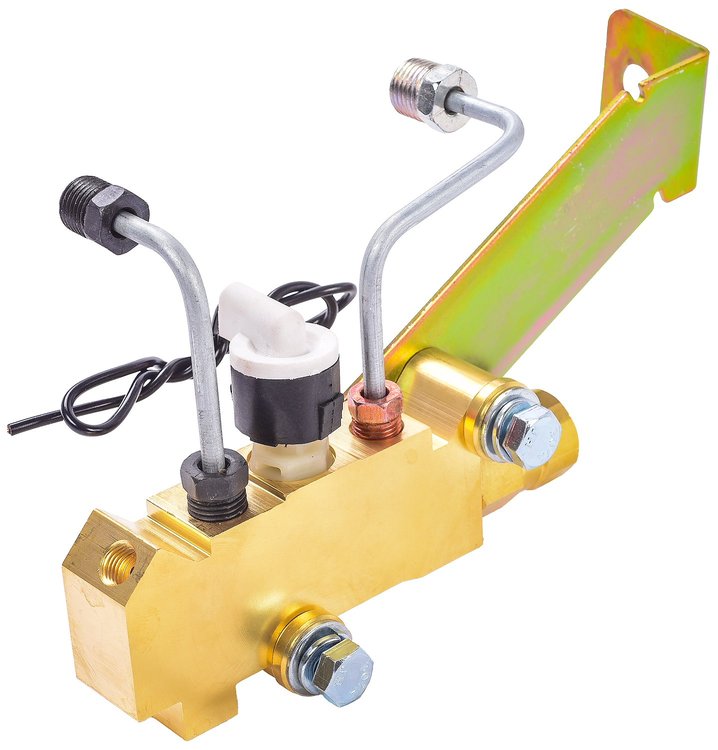

O.E. Style Proportioning Valve/Distribution Block
  • GM
  • One Piece Brass Body for Disc/Disc Application
  • For use with 9/16 in. & 1/2 in. Ports on Left/Driver Side of Master Cylinder
  • Includes Steel Lines, Mounting Bracket & Proportioning Valve Plug

    JEGS 555-631303 GM Proportioning Valve/Distribution Block Features:

    • Ensures proper brake bias from front to rear to prevent lock up of wheels
    • Designed for front disc/rear disc brake applications
    • For use with 9/16 in. and 1/2 in. ports on left/driver side of the master cylinder
    • Constructed from a one-piece brass body
    • Must have component to complete your custom brake system
    • Officially Licenced Replacement Brake Parts

      JEGS O.E. style proportioning valves and distribution blocks are designed to provide you with an authentic, officially licensed, GM® Restoration Part with an original finish and stampings just like the original. Also available as a reproduction which fits the same and looks similar however they will not include factory markings.

    Part TypeBrake Proportioning Valve
    Product LineJEGS GM O.E. Style Proportioning Valves and Distribution Block
    BrandJEGS
    Package Height1.0
    Package Width3.2
    Package Length15.4
    Weight2.45 PG
    Part CategoryReplacement Parts
    Outlet Size9/16-18
    Proportioning Valve MaterialBrass
    Proportioning Valve FinishNatural
    Outlet QuantityThree
    QuantitySold individually
    Inlet AttachmentFemale Threads
    Maximum PsiN/A
    Inlet Size (In.)7/16-24
    Outlet AttachmentFemale Threads
    Pressure Reduction (%)N/A
    Inlet QuantityTwo
    Part FitmentSemi Universal
    NotesN/A
    Minimum PsiN/A
    Adjustment StyleFixed
    Vendor Part NumberPV4K-2
    Package Qty1
    Package TypeEA
