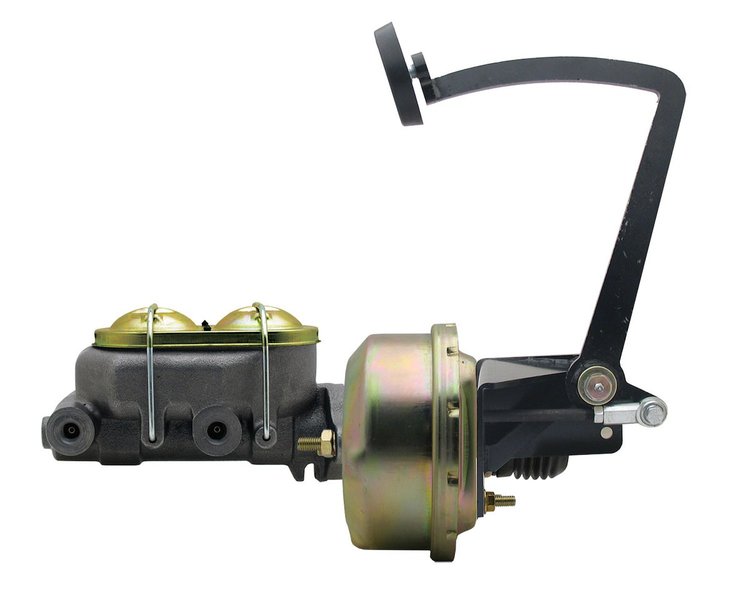

JEGS 555-631232 Power Brake Assembly Features:

• Perfect for Street Rods that don't have Room for a Firewall Mounted Brake System
• This Unit is for Disc/Drum and Drum/Drum applications
• 7 in. Single Diaphragm Power Brake Booster with Zinc Finish
• 1 in. Bore Cast Iron Dual Bail Master Cylinder
• 10 1/2 in. Long Brake Pedal Assembly
• Unit Mounts to Frame Rail Under Left/Driver Side Floor
• The Mounting Bracket Mounts Unit 2 in. Away from the Frame Rail
• Designed for Ford Model A with Automatic Transmission
• May need to Fabricate a Mounting Tab on your Frame to Complete the Installation
• Frame Mount units will require the use of a residual valve. 2 lb. Valve for Disc Brakes or a 10 lb. Valve for Drum Brakes

Note: If you are you are installing this power brake booster assembly on a drum/drum application you will also need a proportioning valve. We recommend JEGS 555-63022
