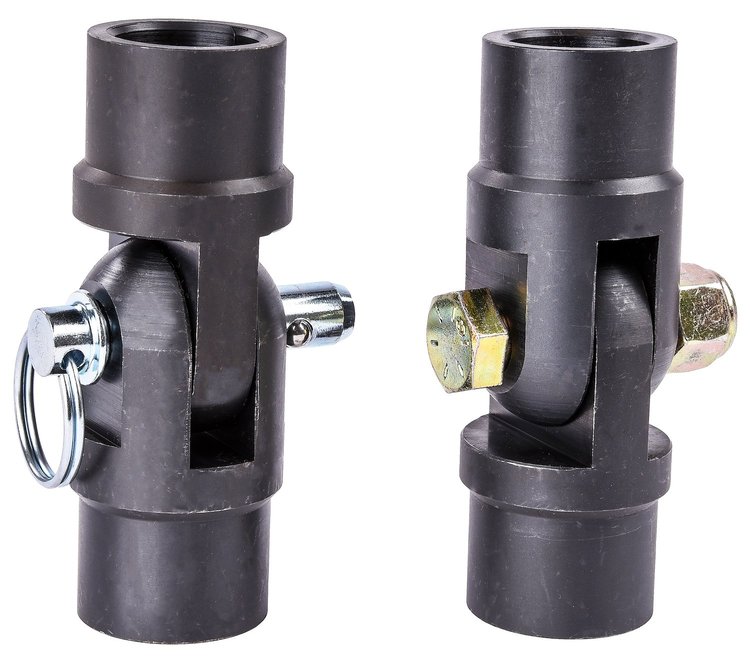

Swing Out Door Bar Kit 1 5/8 in. x 0.083 in. Wall Chromoly Steel Tubing (Tube Mount)

Name: Swing Out Door Bar Kit 1 5/8 in. x 0.083 in. Wall Chromoly Steel Tubing (Tube Mount)
Brand: JEGS
SKU: 555-64460
Price: 136.99 USD
Availability: InStock

^$136⁹⁹$150.99You Save$14.00

More than 10 available

Ships Today

Lowest Price Guarantee

Chromoly Steel Tubing

Tube Mount

Swing Out Door Bar Kit

Diameter: 1 5/8 in.

Chromoly Steel: 0.083 in. Wall

Natural Finish

Fits 1 Door

Includes

(2) Male Ends
(2) Female ends
(1) 1/2 in. -20 Bolt
(1) 1/2 in. -20 Nut
(1) Clevis Pin

JEGS 555-64454 Swing Out Door Bar Kit
Combine safety and convenience with this swing out door bar kit from JEGS. Once installed, the door bar can be pivoted open by removing a clevis pin. Designed for 1 5/8 in. OD Chromoly steel tubing. Be sure to align the swing out ends for smooth movement before welding.
JEGS 555-64454 Swing Out Door Bar Kit Features:
- NHRA accepted if the location of the hinge bolt and release pin are within 8 in. of the vertical portion of the A-pillar and main hoop respectively
- Rollcage Tubing wall thickness: 0.083 in.
- Overall Length: 4 1/2 in.
- Male End Sleeve Dimensions: 1.450 in. OD x 1 in. Length
- Female End Sleeve Dimensions: 1.450 in. OD x 1 in. Length
- Ends have beveled edges for welding
- Bolt: Grade 8
- Nut: Grade 8 Nyloc
- Clevis Pin: 1/2 in. Diameter x 2 1/2 in. Length
- Articulation: 180-Degrees
Notice: Welding required for installation
