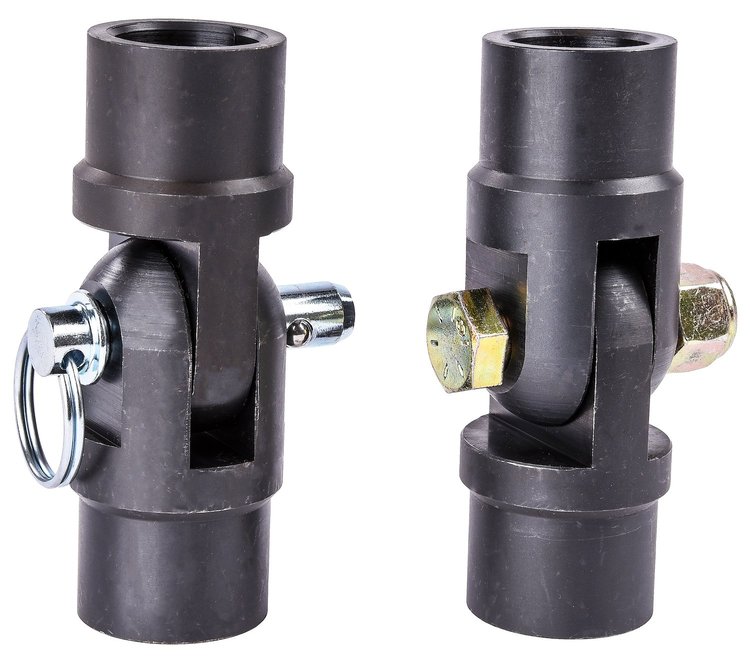

Swing Out Door Bar Kit 1 5/8 in. x 0.120 in. Wall DOM Steel Tubing (Tube Mount)
InfoVehicle Info Needed
JEGSPART NUMBER: 555-64462

Swing Out Door Bar Kit 1 5/8 in. x 0.120 in. Wall DOM Steel Tubing (Tube Mount)

$11999$131.99You Save$12.00
More than 10 available
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Metal File Set [6-Piece]

JEGS

Metal File Set [6-Piece]

Part Number : 555-W5390
$1999$24.99
You Save$5.00
Metal Hed Helmet Gloss Black w/ Metal Hed Graphics

SAVE PHACE

Metal Hed Helmet Gloss Black w/ Metal Hed Graphics

Part Number : 203-3010738
$6497$89.99
You Save$25.02
EFP I Series Welding Helmet with Custom Patriot Graphics

SAVE PHACE

EFP I Series Welding Helmet with Custom Patriot Graphics

Part Number : 203-3012480
$13499
Notch & Bend Aligner Precise to 1/10 degree

MITTLER BROTHERS

Notch & Bend Aligner Precise to 1/10 degree

Part Number : 407-1800-STA
$24380

DOM Steel Tubing
  • Tube Mount
  • Swing Out Door Bar Kit
  • Diameter: 1 5/8 in.
  • DOM Steel: 0.120 in. Wall
  • Natural Finish
  • Fits 1 Door
  • Includes
    • (2) Male Ends
    • (2) Female ends
    • (1) 1/2 in. -20 Bolt
    • (1) 1/2 in. -20 Nut
    • (1) Clevis Pin

      JEGS 64462

      Combine safety and convenience with this swing out door bar kit from JEGS. Once installed, the door bar can be pivoted open by removing a clevis pin. Designed for 1 5/8 in. OD DOM steel tubing. Be sure to align the swing out ends for smooth movement before welding.

      Features

      • NHRA accepted if the location of the hinge bolt and release pin are within 8 in. of the vertical portion of the A-pillar and main hoop respectively
      • Rollcage Tubing wall thickness: 0.120 in.
      • Overall Length: 4 1/2 in.
      • Male End Sleeve Dimensions: 1.350 in. OD x 1 in. Length
      • Female End Sleeve Dimensions: 1.350 in. OD x 1 in. Length
      • Ends have beveled edges for welding
      • Bolt: Grade 8
      • Nut: Grade 8 Nyloc
      • Clevis Pin: 1/2 in. Diameter x 2 1/2 in. Length
      • Articulation: 180-Degrees

      Notice: Welding required for installation

    • Combining Safety and Access for Your Race Car

      JEGS swing out door bar kits offer the benefit of a full roll cage while still retaining standard access. These kits keep your doors functional. Pull the clevis pin and swing the bar away for easy ingress and egress. Available in 1 5/8 in. OD and 1 3/4 in. OD sizes for the following materials, mild steel, DOM, and Chromoly.

      These kits consists of two male and two female swingout ends, two clevis pins, and a nut and bolt; enough to complete one door bar.

      Note Welding required for installation.

    Part TypeRoll Cage Door Bar Kit
    Product LineJEGS Swing Out Door Bar Kits
    BrandJEGS
    Package Height3.3
    Package Width6.3
    Package Length9.8
    Weight3.5 PG
    Part CategoryAccessories
    Swing Out StyleYes
    Welding RequiredYes
    Quantity1
    Part FitmentSemi Universal
    Tube Diameter1.625 in (41.3 mm)
    Roll Bar Component TypeDoor bars
    Release Pin IncludedYes
    Package Qty1
    Package TypeEA
