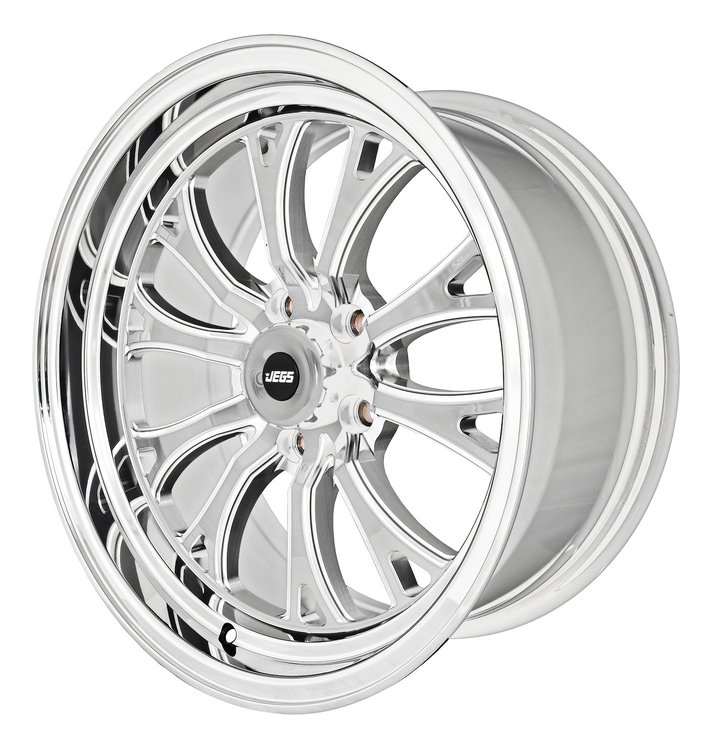

SSR Spike Wheel [Size: 17" x 10"] Fully Polished
Product Discontinued
JEGSPART NUMBER: 555-682154

SSR Spike Wheel [Size: 17" x 10"] Fully Polished

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

17" x 10"
SSR Spike Wheel
  • Size: 17" x 10"
  • Bolt Pattern: 5 x 4.75"
  • Back Spacing: 7.50"
  • Offset: +51 mm
  • Center Bore: 3.27"
  • Load Rating: 1900 lbs.
  • Finish: Fully Polished

    JEGS How to Measure Wheel Fitment click here

    JEGS Wheel Load Rating Chart

    JEGS 555-682154 SSR Spike Wheel Features:

    • Includes 2 3/8" Deep Center Cap with JEGS Logo
    • For applications with deeper hubs, we recommend JEGS 555-69155
    • Unique 10-spoke design with durable fully polished finish
    • One-piece aluminum construction for weight savings
    • Transform your ride with a completely different look
    • For street use only as these are not designed for race use
    • Maximum tire size: 30"

    Special Notes:

    • These wheels are machined for standard Acorn Style Lug Nuts and are sold separately (See Lug Nut Chart Below). A JEGS thin wall socket is required for installation 555-W32902.
    • If desired, JEGS Spline Drive Acorn Style Lug Nuts are available (Click Here). These lug nuts require a JEGS thin wall spline drive socket for installation 555-65446 or 555-65460.
    • Part TypeWheel
    BrandJEGS
    Package Height12.0
    Package Width20.0
    Package Length20.0
    Weight26.5 PG
    Part CategoryPerformance Parts
    Valve Stems IncludedNo
    Wheel Size17 x 10 in.
    Lug Nut Seat TypeConical seat - 60 degree
    Load Rating (Lbs.)1900
    Quantity1
    Maximum Tire Size32 In.
    Wheel MaterialCast Aluminum
    Wheel FinishFully Polished
    Wheel Construction1-piece
    Bolt Pattern5 X 4.75 in.
    Back Spacing7.5 in (190.5 mm)
    Offset2.007 in.
    Backspacing7.5 In.
    Valve Stem IncludedNo
    Center Bore Diameter3.27 In.
    Manufacturers Wheel SeriesJEGS SSR Spike Fully Polished
    Lug Counter Bore Diameter1.126 in.
    Lug Nut Shank Length (In.)N/A
    Center Cap IncludedYes
    Load Rating1900 lbs.
    Center Cap Logo ColorBlack, Silver
    Wheel Bolt Pattern5 x 4 3/4 (120.65 mm)
    Lug Nut Seat StyleConical seat - 60 degree
    Wheel Diameter17 in.
    Wheel TypeCar Street Wheels
    Part FitmentSemi Universal
    Wheel Offset51 mm (2.0079 in)
    Lug Nut Shank Diameter (In.)N/A
    Wheel Width10 in.
    Package Qty1
    Package TypeEA
