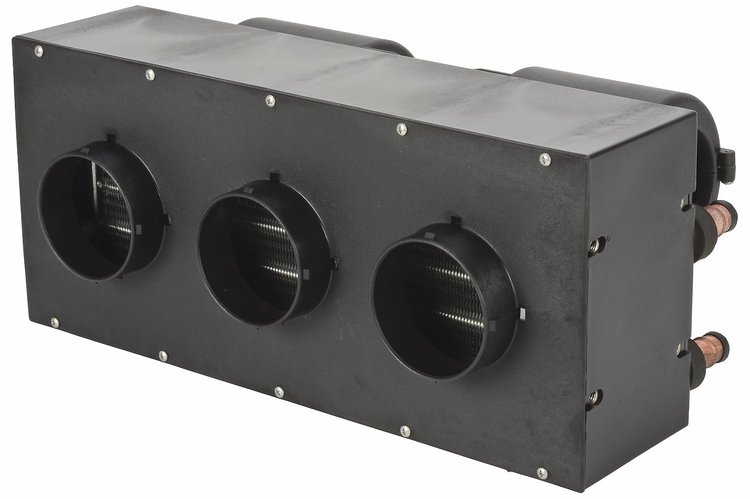

Auxiliary Heater with Triple Vents [300 CFM, 40,000 BTU]

Name: Auxiliary Heater with Triple Vents [300 CFM, 40,000 BTU]
Brand: JEGS
SKU: 555-70602
Price: 274.99 USD
Availability: InStock

^$274⁹⁹$302.99You Save$28.00

More than 10 available

Ships Today

Lowest Price Guarantee

40,000 BTU Auxiliary Heater

Auxiliary Heater

Universal

300 cfm

40,000 BTU

Mountable Switch

3 in. O.D. Triple Front Vents

7 in. H x 16 in. W x 8.625 in. D

3-Speed 12 V Blower Motor

5/8 in. Heater Hose Connections

JEGS 555-70602 Auxiliary Heater with Triple Vents Features:

Keep warm with 40,000 btus of heat and three front vents
Compact design for limited space and tight areas
Long life with the 12-volt three-speed motor
Heavy-duty injection-molded and glass-filled nylon construction
Durable tube and fin core design
Universal mounting design
Triple 3 in. O.D. Vents
Heavy-duty injection molded glass-filled nylon housing construction
Long-life 12-volt three-speed motor
- Low [5.5 Amps]
- Med [7.1 Amps]
- High [11.6 Amps]
Compact design
Durable tube/fin heater core design

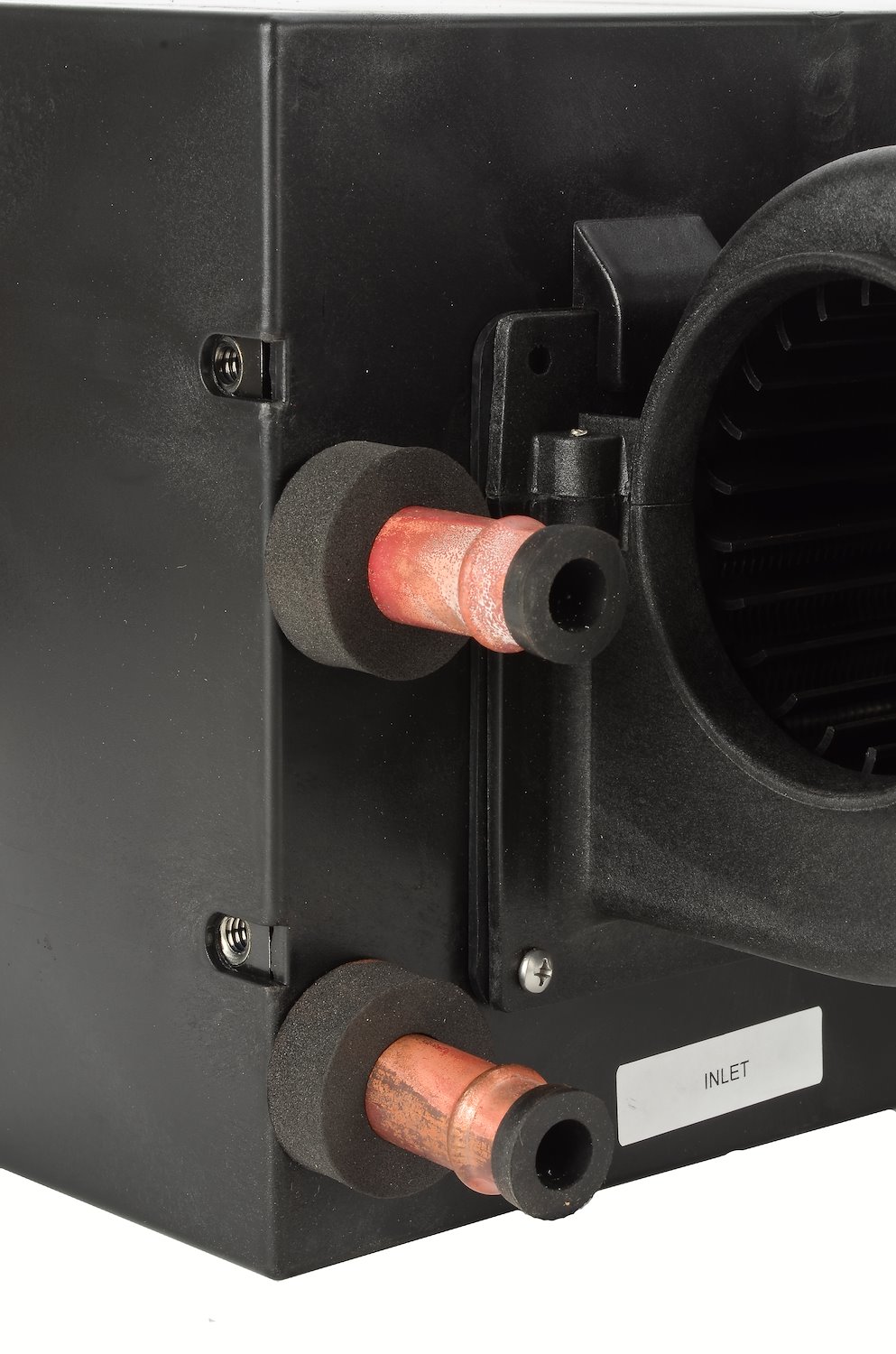

5/8 in. O.D. heater core inlet and outlet connections
Requires external ground

JEGS 555-70602 Auxiliary Heater with Triple Vents Includes:

(1) Heater assembly
(1) Grille plate with triple 3 in. O.D. vents
(10) Grille plate attaching screws, #8 x 3/4 in. stainless steel philips pan head
(1) Switch assembly includes:
- (1) 3-Speed switch
- (1) Switch face plate
- (2) Switch attaching nuts
- (1) Switch knob
- (3) 14-Gauge female spade terminals
- (1) Dash mounting bracket
(1) 5 ft. 3-wire 14-gauge wiring harness with plug-in connector for heater motor
(2) Mounting Brackets
(8) Mounting Bracket Bolts, 1/4 in.-20 x 3/4 in. UHL stainless steel with 3/8 in. hex washer head
(4) Mounting Bracket Screws, #14 x 1/2 in. stainless steel truss philips head
Installation instructions

JEGS 555-70602 Auxiliary Heater Notes:

The heater electrical circuit must be fused for safety, with the fuse placed as close to the vehicle's electrical connection as possible. We recommend JEGS fuse holder 555-10516
This heater requires a 7.5 amp fuse. We recommend JEGS 7.5 amp fuse 555-10788
A separate ground wire must be utilized to complete the electrical circuit.

The Perfect Compact Heater for Hot Rods

JEGS Hot Rod Heaters will keep you warm on those cold days, simply connect plumbing and wiring directly to your cooling system for immediate heat. The blower unit blows fresh air through the heat exchanger, elevating the air temperature, which then exits through the outlet louvers adding strong and consistent heat to any vehicle. You can even use these auxiliary heaters as an economical alternative to replacing a worn-out or hard-to-reach heater core. Heaters are available in a variety of sizes and styles with multiple speeds and adjustable settings. Defroster and Louver/Vent kits are available separately.
