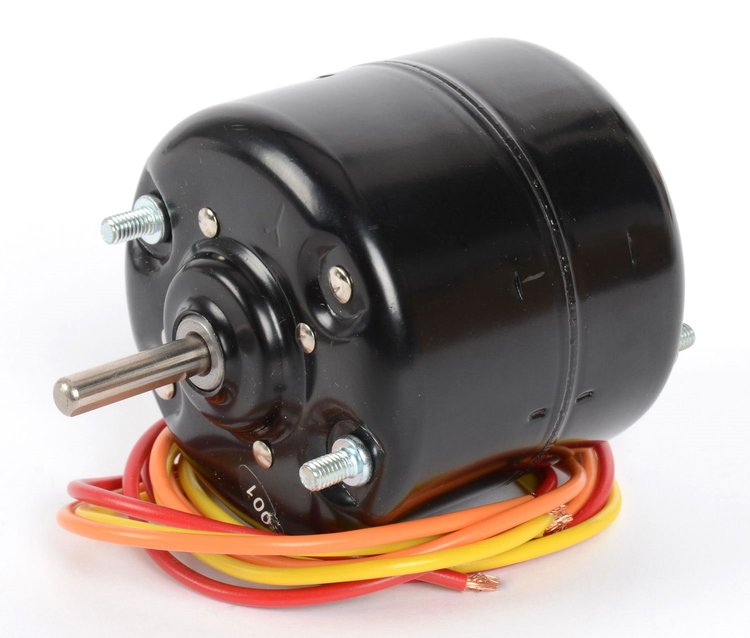

Replacement 24V Motor for 12,000 BTU Heater

Name: Replacement 24V Motor for 12,000 BTU Heater
Brand: JEGS
SKU: 555-70603-24V
Price: 74.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Auxiliary Heater Accessories

Replacement 24 V Motor

For Use With 12,000 btu Auxiliary Heater 555-70603

Specifications:

Main Body length: 2.75 in. / 70 mm
Center 1 in. body length: 3.25 in./ 90 mm
Stud spacing: 2.25 in./ 56 mm
Overall shaft length: 6.25 in./ 160 mm
Short side shaft: 1 in./ 25 mm
Short side shaft flat area on side length: 7/8 in. / 23 mm
Long side shaft length: 1.8125 in./ 47 mm
Long side shaft flat area on side: 1.75 in. / 43 mm
Shaft diameter : 5/16 in./ 8 mm

The Perfect Compact Heater for Hot Rods

JEGS Hot Rod Heaters will keep you warm on those cold days, simply connect plumbing and wiring directly to your cooling system for immediate heat. The blower unit blows fresh air through the heat exchanger, elevating the air temperature, which then exits through the outlet louvers adding strong and consistent heat to any vehicle. You can even use these auxiliary heaters as an economical alternative to replacing a worn-out or hard-to-reach heater core. Heaters are available in a variety of sizes and styles with multiple speeds and adjustable settings. Defroster and Louver/Vent kits are available separately.
