Auxiliary Heater Assembly [200 CFM at 15,000 BTU, & 325 CFM at  22,000 BTU]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-70622

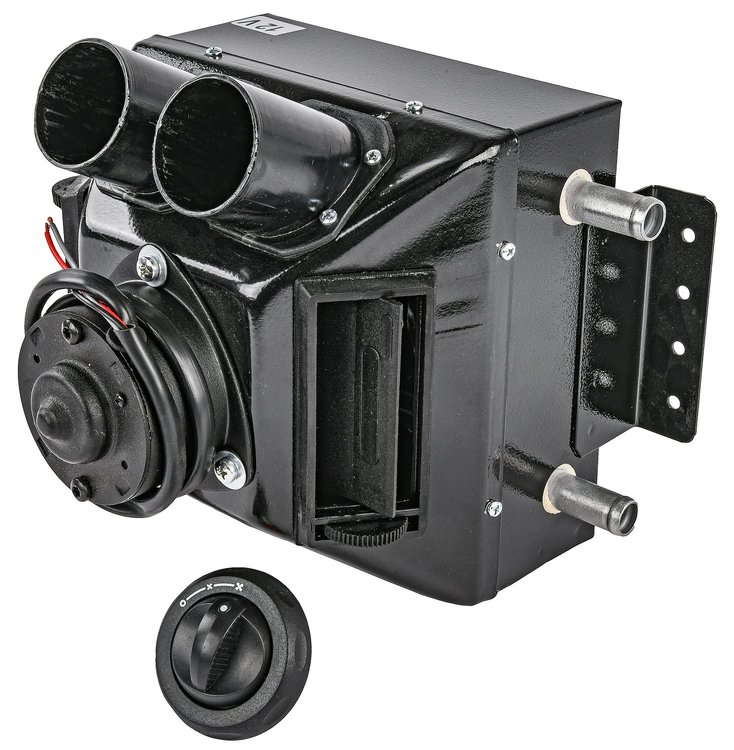

Auxiliary Heater Assembly [200 CFM at 15,000 BTU, & 325 CFM at 22,000 BTU]

$19799$214.99You Save$17.00
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Defroster Duct Kit

JEGS

Defroster Duct Kit

Part Number : 555-70607
$3699$40.99
You Save$4.00
Radiator Hose Remover Spoon Set

LISLE TOOLS

Radiator Hose Remover Spoon Set

Part Number : 616-82130
$1899
AN Hose & Fitting Assembly Kit

JEGS

AN Hose & Fitting Assembly Kit

Part Number : 555-28010
$758$9.99
You Save$2.41
Heater Hose Kit

JEGS

Heater Hose Kit

Part Number : 555-130246
$6699$71.99
You Save$5.00

22,000 BTU Auxiliary Heater
Auxiliary Heater Assembly
  • 2-Speed Fan
  • Adjustable Louvers for Cabin Heat
  • Wall or Floor Mount
  • Powder Coated Steel Housing
  • Includes
    • (2) 2 in. Hose Adapters for Defrost or Louvers
    • 3-Position Switch with Bezel & Knob

      The JEGS 70622 2-speed auxiliary heater assembly is an ideal way to plumb heating and defrost capabilities into your vehicle. The 2-speed fan and adjustable louver flaps let you tailor the heat to your needs. Don't let cold weather stop you from enjoying your vehicle.

      JEGS 555-70622 Auxiliary Heater Assembly Features:

      • Overall dimensions: 10 1/4 in. L x 7 3/4 in. W x 9 1/2 in. H
      • Settings:
        • Low: 15,000 BTU at 200 CFM using 4 Amps
        • High: 22,000 BTU at 325 CFM using 9 Amps
      • Heater louvers are adjusted by roller wheels
      • This assembly makes use of the engine's coolant. You will have to tap into the engine's cooling system for exit and return lines.
      • Fan wiring length: 24 in.
      • The fan must be wired into vehicle's wiring
      • Both mounting pads feature four holes

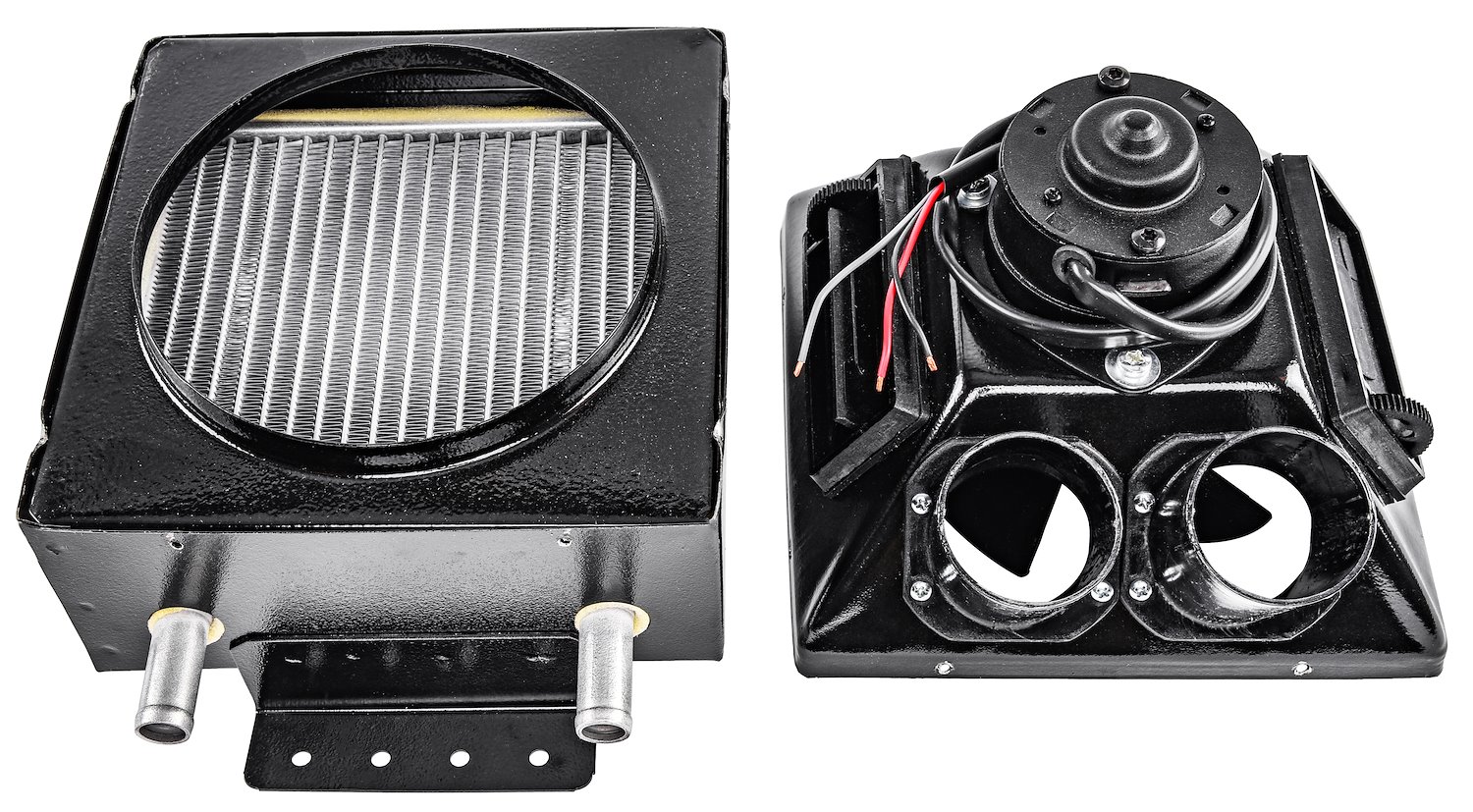

      • The top housing, secured by 8 Philips screws, can be rotated to suit your cockpit needs

      Note: This heater assembly does not include defroster or louver ducting, these items are sold separately. Defroster kit 555-70607, Louver kit 555-70608

      FAQ

      How does an auxiliary heater work?

      • An auxiliary heater operates by utilizing the vehicle's coolant system to produce heat, providing additional warmth beyond the standard heating system.
    • The Perfect Compact Heater for Hot Rods

      JEGS Hot Rod Heaters will keep you warm on those cold days, simply connect plumbing and wiring directly to your cooling system for immediate heat. The blower unit blows fresh air through the heat exchanger, elevating the air temperature, which then exits through the outlet louvers adding strong and consistent heat to any vehicle. You can even use these auxiliary heaters as an economical alternative to replacing a worn-out or hard-to-reach heater core. Heaters are available in a variety of sizes and styles with multiple speeds and adjustable settings. Defroster and Louver/Vent kits are available separately.

      Show More

    Part TypeAuxiliary Heater
    Product LineJEGS Hot Rod Heaters
    BrandJEGS
    Package Height11.2
    Package Width11.3
    Package Length11.9
    Weight9.2 PG
    Part CategoryAccessories
    Heater Width10.25 in (260.35 mm)
    Heater Flow (Cfm)200
    Uses Engine Coolant For HeatYes
    Part FitmentUniversal
    Heater FinishBlack
    Fan Speed2-speed
    Heater MaterialSteel
    Package Qty1
    Package TypeEA
