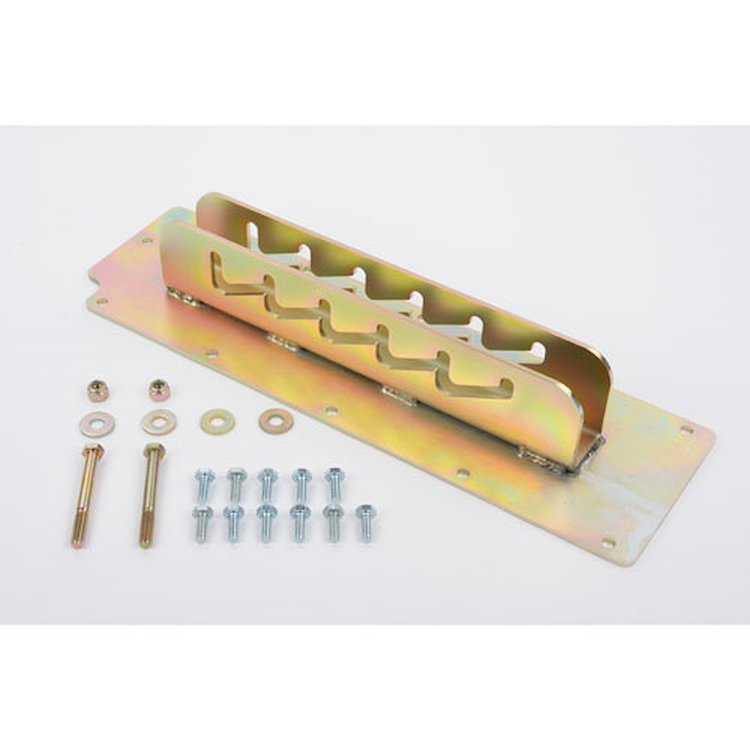

GM LS Engine Lift Plate LS Gen III & Gen IV Engines
InfoVehicle Info Needed
JEGSPART NUMBER: 555-80093

GM LS Engine Lift Plate LS Gen III & Gen IV Engines

$7999$87.99You Save$8.00
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Heavy-Duty Nitrile Gloves [7 mils Thick, X-Large]

JEGS

Heavy-Duty Nitrile Gloves [7 mils Thick, X-Large]

Part Number : 555-1125
$1999$21.99
You Save$2.00
Engine Lifting Chain 34"

JEGS

Engine Lifting Chain 34"

Part Number : 555-80049
$1399$15.99
You Save$2.00
Round Magnetic Parts Tray [5 1/2 in. Round]

JEGS

Round Magnetic Parts Tray [5 1/2 in. Round]

Part Number : 555-80080
$549$5.99
You Save$0.50
Industrial Strength Cleaner and Degreaser [1 Gallon]

JEGS

Industrial Strength Cleaner and Degreaser [1 Gallon]

Part Number : 555-72302
$1049$16.99
You Save$6.50

GM LS Engine Lift Plate
GM LS Engine Lift Plate
  • LS Gen III & Gen IV Engines
  • Attaches to Valley on Block
  • Includes Fasteners & Hardware
  • Steel
  • Zinc-Plated Finish
  • Sold Individually

    JEGS 555-80093 GM LS Engine Lift Plate Features:

    • Fits Chevy/GMC LS GEN III & GEN IV engines such as 4.8, 5.3, 5.7, 6.0, and others based on the popular platform
    • Attaches to valley on the engine block
    • Made with high-quality components
    • Constructed from zinc-plated steel for long life and great looks
    • Saw tooth-shaped slots to allow easy adjustment without removing chains or hooks from the lift plate.
    • Ready for Engine Removal? You Might Need One of These JEGS Engine Lift Plates

      JEGS Engine Lift Plates allow you to lift your engine with the intake manifold installed. Capable of lifting engines with the transmission attached up to 1,000 pounds at three different angles. The sawtooth-shaped slots allow easy adjustment without removing chains or hooks from the lift plate.

    Part TypeEngine Lift Plate
    Product LineJEGS Engine Lift Plates
    BrandJEGS
    Package Height6.7
    Package Width8.2
    Package Length25.0
    Weight12.75 PG
    Part CategoryAccessories
    Lift Plate FinishZinc
    Product Length19 in (482.6 mm)
    Product Height3.2 in (81.28 mm)
    Part FitmentUniversal
    Lift Plate MaterialSteel
    Product Width6 in (152.4 mm)
    Lift Plate MountingGM LS engine valley
    Package Qty1
    Package TypeEA
