3,500 lb Electric Winch with Synthetic Rope and Hawse Fairlead
InfoVehicle Info Needed
JEGSPART NUMBER: 555-80377

3,500 lb Electric Winch with Synthetic Rope and Hawse Fairlead

$15999$175.99You Save$16.00
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

200-Piece Tool Set with Carry Case

JEGS

200-Piece Tool Set with Carry Case

Part Number : 555-80453
$6599$89.99
You Save$24.00
60 LED Work Light

JEGS

60 LED Work Light

Part Number : 555-81927
$2399$31.99
You Save$8.00
Waterproof Circuit Breaker 150 AMP

JEGS

Waterproof Circuit Breaker 150 AMP

Part Number : 555-10576
$3499$38.99
You Save$4.00
Master Battery Disconnect Switch [20 Amps Continuous, 125 Amps Momentary]

JEGS

Master Battery Disconnect Switch [20 Amps Continuous, 125 Amps Momentary]

Part Number : 555-10305
$4699$51.99
You Save$5.00

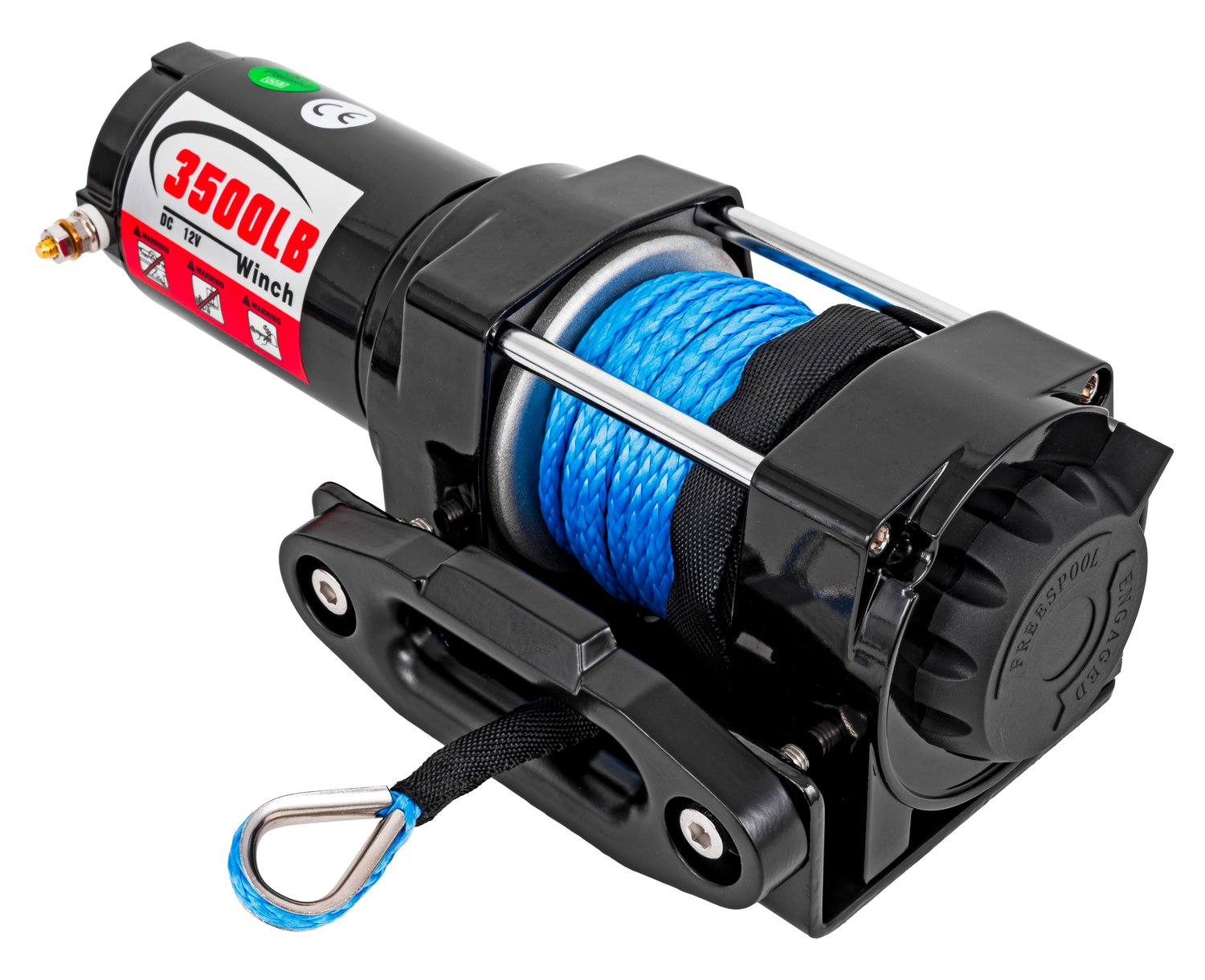

3,500 lb Electric Winch
  • Fits ATVs, UTVs, Side-by-Sides and Trailers
  • 3,500 lb Rated Line Pull
  • 7/32 in. x 39 ft. Synthetic Rope
  • 1.2 HP 12V Motor, 153:1 Gearing
  • Wireless Remote, Hawse Fairlead
  • Free-Spool Clutch
  • Mounting Plate Included

    Synthetic rope is the reason to step up to the JEGS 555-80377. Rated at 3,500 lb of single-line pull, this winch ships with 7/32 in. x 39 ft. of synthetic line rather than steel cable, so it stores far less energy if the line ever parts, it will not develop the sharp broken strands that make used wire rope dangerous to handle, and it is light enough to drag out to an anchor point by hand. Behind the drum sits a 1.2 HP permanent magnet 12-volt motor and a 153:1 differential planetary gearset, giving ATV, side-by-side and utility trailer owners real recovery capability in a package that still bolts to a standard winch mount.

    JEGS 555-80377 3,500 lb Synthetic Rope Winch Features:

    • Fits ATVs, UTVs, side-by-sides and utility trailers
    • 3,500 lb rated single-line pull, rated on the first rope layer on the drum
    • 1.2 HP permanent magnet 12V DC motor sized for intermittent recovery duty
    • 153:1 differential planetary gearing keeps line speed manageable at full load
    • Automatic spring brake holds the load in place when the winch stops pulling
    • 7/32 in. x 39 ft. synthetic rope on a 2.26 in. x 2.87 in. drum is lighter, safer under load and easier to handle than wire cable
    • Included hawse fairlead has a smooth, rounded rope opening that guides synthetic line onto the drum without the abrasion of steel rollers, and it keeps the rope aligned on angled pulls
    • Free-spool clutch releases the drum so rope can be pulled out by hand to the anchor point
    • Powered in and powered out operation reels the rope in or out under motor control, even under load
    • Factory-sealed gear box is packed with high-temperature lithium grease and needs no added lubrication
    • IP66 rated, dust-tight and resistant to powerful water jets
    • 4-hole 4.87 in. x 3 in. mounting bolt pattern is the standard for this class of winch, so most common ATV and side-by-side mounting kits accept it
    • Compact 11.8 in. L x 4.13 in. W x 4.13 in. H housing with a 20 lb net weight

    JEGS 555-80377 3,500 lb Synthetic Rope Winch Notes:

    • Mount on a flat surface so the motor, drum and gear housing stay in alignment and the rated load spreads evenly across the mount
    • Control module is designed to be installed remotely rather than clamped to the winch body, away from spray and debris
    • Requires a 12-volt vehicle electrical system; keep the engine running while winching to limit battery drain
    • Snatch block and recovery shackles sold separately

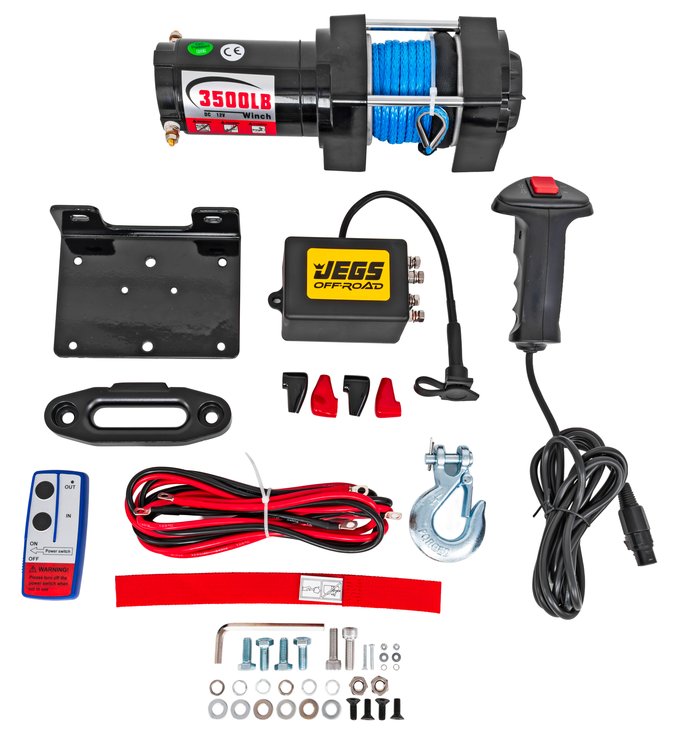

    JEGS 555-80377 3,500 lb Synthetic Rope Winch Includes:

    • (1) 3,500 lb electric winch assembly with 7/32 in. x 39 ft. synthetic rope
    • (1) Mounting plate
    • (1) Hawse fairlead
    • (2) Fairlead bolts, (2) nuts, (2) lock washers and (2) flat washers
    • (1) Clevis hook
    • (1) Hook strap
    • (1) Wireless remote control
    • (1) Wired controller with 9 ft. cable
    • (1) Control module
    • (1) Clutch knob
    • (1) Red power wire
    • (1) Black ground wire
  • Part TypeWinch
    BrandJEGS
    Package Height9.0
    Package Width10.5
    Package Length16.0
    Weight24.5 PG
    Part CategoryAccessories
    Wired Controller Cable Length9 ft.
    Motor Voltage12V
    Free SpoolingYes
    Mounting Hole Quantity4
    Power OutYes
    Cable MaterialSynthetic
    Wireless Remote Cable Length9 ft.
    Drive GearDifferential Planetary
    Rated Line Pull3,500 lb
    Voltage12V
    Motor TypePermanent Magnet
    Maximum Height4.13 in.
    Cable Length39 ft.
    Hook IncludedYes
    Wired Controller IncludedYes
    Wireless Remote IncludedYes
    Motor Hp1.2 HP
    Mounting Bolt Pattern Length4.87 in.
    Brake ActivationAutomatic
    Maximum Width4.13 in.
    Drum Diameter2.26 in.
    TypeElectric
    Maximum Length11.8 in.
    Mounting Bolt Pattern Width3 in.
    Drum Length2.87 in.
    Brake TypeSpring
    Gear Ratio153:1
    Cable Diameter.21875 in.
    Mounting Plate IncludedYes
    Part FitmentUniversal
    Fairlead TypeHawse
    Net Weight20 lb
    Ingress Protection RatingIP66
    Vendor Part Number126002
    Package Qty1
    Package TypeEA
