5,500 lb Electric Winch
  • Fits UTVs, Side-by-Sides and Small SUVs
  • 5,500 lb Rated Single-Line Pull
  • 1/4 in. x 50 ft. Synthetic Rope
  • 1.8 HP 12V Motor, 198:1 Gearing
  • Wireless Remote, Hawse Fairlead
  • Free-Spool Clutch
  • Mounting Plate Included

    Full-size UTVs and side-by-sides carry cargo, passengers and accessories that push a recovery load well past what an ATV-class winch was built to handle. The JEGS 555-80378 answers that with 5,500 lb of rated single-line pull, a 1.8 HP permanent magnet 12-volt motor and a 198:1 differential planetary gearset - a deeper reduction than the 153:1 units used on the smaller winches in this family, which is how it holds a heavier load under control instead of stalling against it. The drum carries 1/4 in. x 50 ft. of synthetic rope, giving both the working length to reach a distant anchor and the diameter to match the higher pull rating.

    JEGS 555-80378 5,500 lb UTV and Side-by-Side Winch Features:

    • Fits UTVs, side-by-sides and small SUVs
    • 5,500 lb rated single-line pull, rated on the first rope layer on the drum
    • 1.8 HP permanent magnet 12V DC motor for heavier intermittent recovery work
    • 198:1 differential planetary gearing provides deeper reduction for high-load pulls
    • Automatic spring brake holds the load in place when the winch stops pulling
    • 1/4 in. x 50 ft. synthetic rope on a 2.00 in. x 4.45 in. drum adds reach for anchoring well off the trail
    • Synthetic line is lighter to handle, easier to respool and safer than wire rope under load
    • Included hawse fairlead has a smooth, rounded rope opening that guides synthetic line onto the drum without the abrasion of steel rollers, and it keeps the rope aligned on angled pulls
    • Free-spool clutch releases the drum so rope can be walked out by hand
    • Powered in and powered out operation reels the rope in or out under motor control, even under load
    • Factory-sealed gear box is packed with high-temperature lithium grease and requires no added lubrication
    • IP67 rated, dust-tight and sealed against immersion up to 1 minute
    • 4-hole 6.659 in. x 3 in. mounting bolt pattern, so common UTV and side-by-side mounting kits accept it
    • Overall dimensions of 14.25 in. L x 4.25 in. W x 4.5 in. H
    • Net weight of 26.5 lb

    JEGS 555-80378 5,500 lb UTV and Side-by-Side Winch Notes:

    • Mount on a flat surface so the motor, drum and gear housing stay aligned and the rated load spreads evenly across the mount
    • Control module installs remotely rather than clamping to the winch body, so plan a location away from spray, mud and heat before wiring
    • Requires a 12-volt vehicle electrical system; keep the engine running while winching to limit battery drain
    • For loads above half the rated pull, use a snatch block to double the line and cut rope tension
    • Snatch block and recovery shackles sold separately

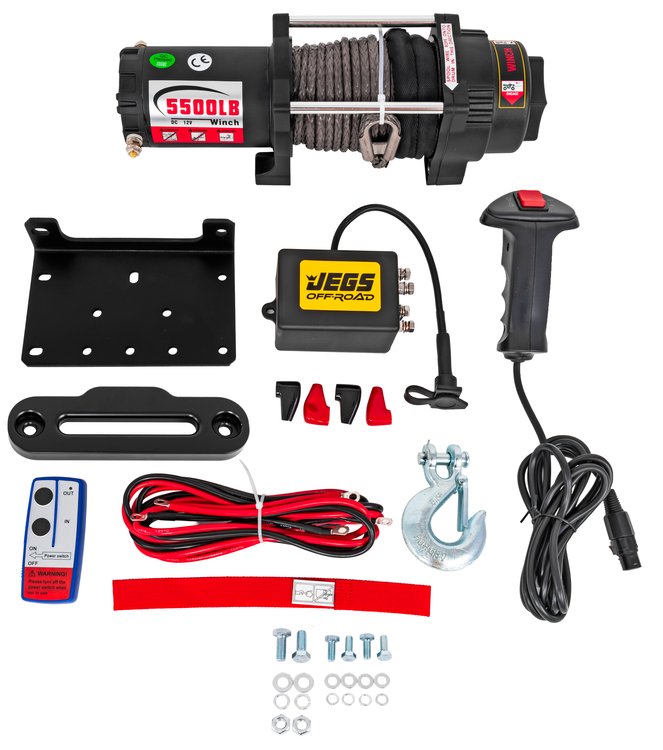

    JEGS 555-80378 5,500 lb UTV and Side-by-Side Winch Includes:

    • (1) 5,500 lb electric winch assembly with 1/4 in. x 50 ft. synthetic rope
    • (1) Mounting plate
    • (1) Hawse fairlead
    • (2) Fairlead bolts and (6) pieces of fairlead hardware
    • (12) Pieces of winch mounting hardware
    • (1) Clevis hook
    • (1) Hook strap
    • (1) Wireless remote control
    • (1) Wired controller with 9 ft. cable
    • (1) Control module
    • (1) Clutch knob
    • (4) Terminal boot covers
    • (1) Red power wire
    • (1) Black ground wire
  • Part TypeWinch
    BrandJEGS
    Package Height9.1
    Package Width10.5
    Package Length18.0
    Weight25.49 PG
    Part CategoryAccessories
    Wired Controller Cable Length9 ft.
    Motor Voltage12V
    Free SpoolingYes
    Mounting Hole Quantity4
    Power OutYes
    Cable MaterialSynthetic
    Wireless Remote Cable Length9 ft.
    Drive GearDifferential Planetary
    Rated Line Pull5,500 lb
    Voltage12V
    Motor TypePermanent Magnet
    Maximum Height4.5 in.
    Cable Length50 ft.
    Hook IncludedYes
    Wired Controller IncludedYes
    Wireless Remote IncludedYes
    Motor Hp1.8 HP
    Mounting Bolt Pattern Length6.659 in.
    Brake ActivationAutomatic
    Maximum Width4.25 in.
    Drum Diameter2 in.
    TypeElectric
    Maximum Length14.25 in.
    Mounting Bolt Pattern Width3 in.
    Drum Length4.45 in.
    Brake TypeSpring
    Gear Ratio198:1
    Cable Diameter.25 in.
    Mounting Plate IncludedYes
    Part FitmentUniversal
    Fairlead TypeHawse
    Net Weight26.5 lb
    Ingress Protection RatingIP67
