![Valve Spring Micrometer [1.400 in. - 1.800 in. Height Range]](https://www.jegs.com/images/mini_750/500/555/555-80535.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-80535

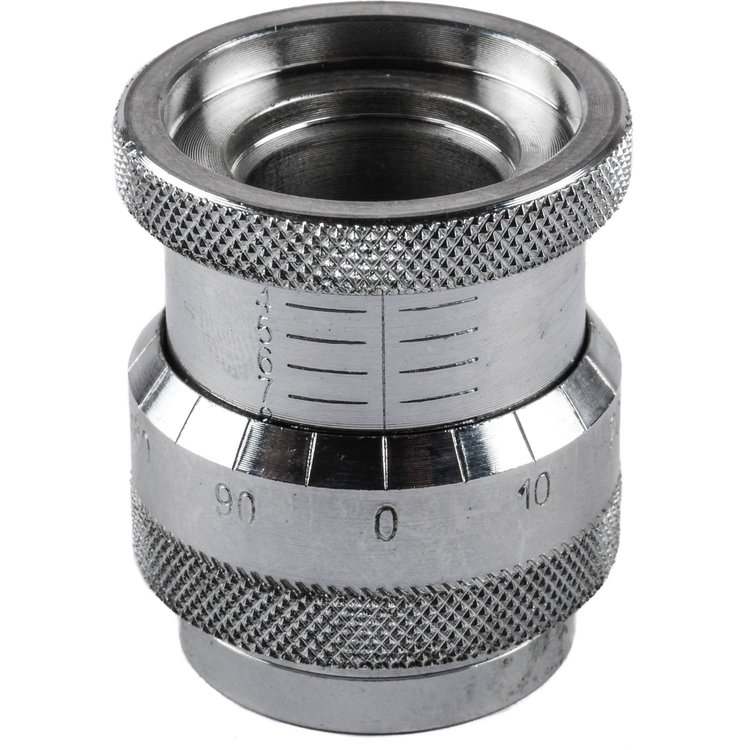

Valve Spring Micrometer [1.400 in. - 1.800 in. Height Range]
$4199$46.99You Save$5.00
More than 10 available
Ships Today
Lowest Price GuaranteeValve Spring Micrometers
Valve Spring MicrometerMeasures From 1.400 in. - 1.800 in. Height Range Steel Chrome Plated Finish Sold Individually
Accurately measures the distance between the valve spring seat and retainer Take the guesswork out of determining the actual installed spring height dimension to within five thousandths of an inch Chrome finish for long lasting durability Measures between 1.400” - 1.800” Must have tool when assembly or rebuilding cylinder heads
JEGS 80535 Valve Spring Micrometer is manufactured from chrome-plated steel. This tool is a must-have when replacing your valve springs and setting spring height to match cam manufacture specifications. It is accurate and easy to use, like a standard micrometer.
JEGS 80535 Valve Spring Micrometer Features:
- The best and most accurate way to measure valve spring installed height
- upper and lower serrated grip locations for easy adjusting
- Accurate readings to .001 in. to prevent coil bind
- Reads in 0.005-in. increments
- Inner Bore Diameter: 1.210 in. I.D. x .150 in. depth
- Maximum Valve Retainer Diameter: 1.500 in. O.D.
Part TypeMicrometer
BrandJEGS
Package Height0.7
Package Width4.2
Package Length5.0
Weight0.35 PG
Part CategoryAccessories
Micrometer FinishChrome Plated
Micrometer MaterialSteel
Case IncludedNo
Micrometer Range (In.)1.400-1.800
Part FitmentUniversal
Micrometer Increments0.005 in (0.127 mm)
Package Qty1
Package TypeEA
