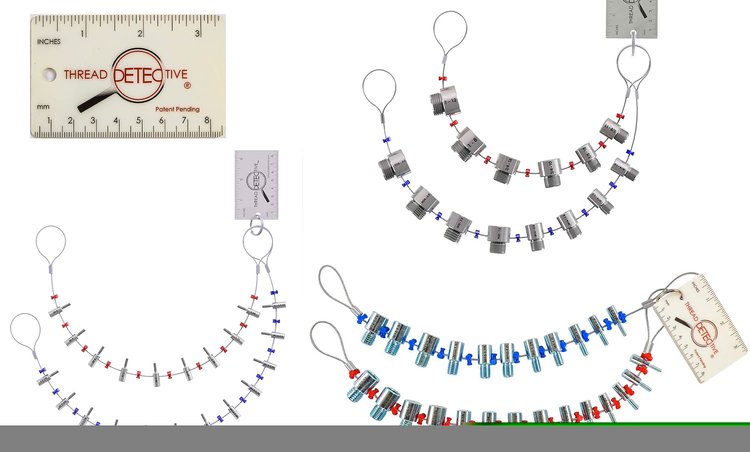

Combo Thread Gauge Set [SAE #1-64 thru 1 in.-12 and Metric M1.2 x 0.25 mm thru M24 x 3.0 mm]

Name: Combo Thread Gauge Set [SAE #1-64 thru 1 in.-12 and Metric M1.2 x 0.25 mm thru M24 x 3.0 mm]
Brand: JEGS
SKU: 555-80717K
Price: 108.07 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Combo Set

Combo Thread Gauge Set

Includes Sets:

SAE #1-64 thru #5-40 & Metric 1.2 mm x 0.25 thru 3.5 mm x 0.35
SAE #6-32 thru 1/2 in.-13 & Metric 4 mm x 0.7 thru 12 mm x 1.75
SAE 5/8 in.-11 thru 1 in.-12 & Metric 14 mm x 1.5 thru 24 mm x 3

JEGS 80717K Features:
- Checks internal and external threads
- Laser-etched markings that won't wear off
- Wire rope lanyard with loops for hanging
- Shatterproof gauge dividers
- Attached 3 3/8 in. ruler to measure stud lengths
Thread Gauge Kit Includes:
Mini Thread Gauge Set 555-80718:
- SAE Thread Sizes:
  - #1-64, #1-72, #2-56, #2-64, #3-48, #3-56, #4-40, #4-48, #5-40
- Metric Thread Sizes:
  - M1.2 x 0.25, M1.6 x 0.35, M1.6 x 0.20, M1.8 x 0.35, M2 x 0.40, M2 x 0.25, M2.5 x 0.45, M2.5 x 0.35, M3 x 0.35, M3 x 0.50, M3.5 x 0.60, M3.5 x 0.35
Standard Thread Gauge Set 555-80717:
- SAE Thread Sizes:
  - #6-32, #8-32, #10-32, #10-24, 1/4 in.-28, 1/4 in.-20, 5/16 in.-24, 5/16 in.-18, 3/8 in.-24, 3/8 in.-16, 7/16 in.-20, 7/16 in.-14, 1/2 in.-20, 1/2 in.-13
- Metric Thread Sizes:
  - M4 x 0.7, M5 x 0.8, M6 x 1.0, M8 x 1.0, M8 x 1.25, M10 x 1.0, M10 x 1.5, M12 x 1.25, M12 x 1.5, M12 x 1.75
Jumbo Thread Gauge Set 555-80719 :
- SAE Thread Sizes:
  - 5/8 in.-11, 5/8 in.-18, 3/4 in.-10, 3/4 in.-16, 1 in.-8, 1 in.-12
- Metric Thread Sizes:
  - M14 x 1.5, M14 x 2.0, M16 x 1.5, M16 x 2.0, M20 x 1.5, M20 x 2.5, M24 x 2.0, M24 x 3.0
